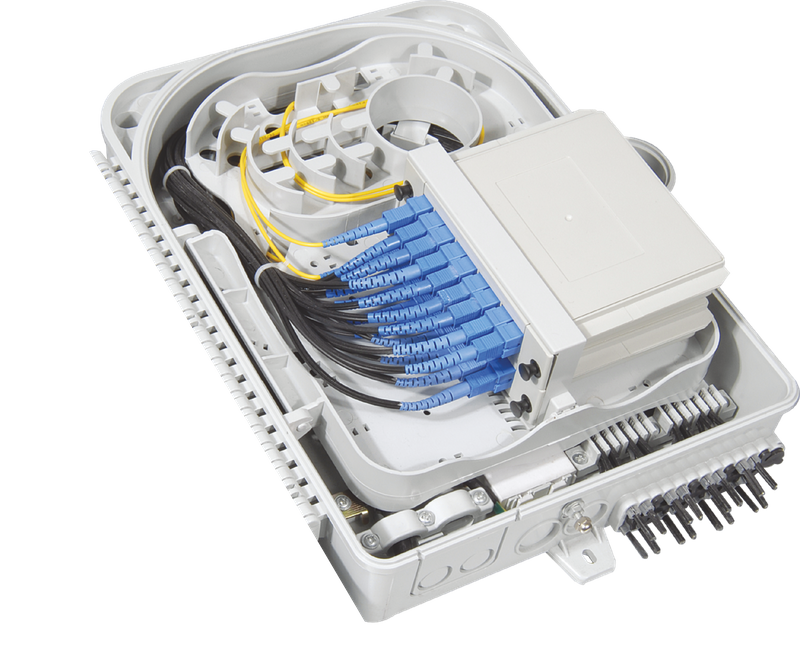

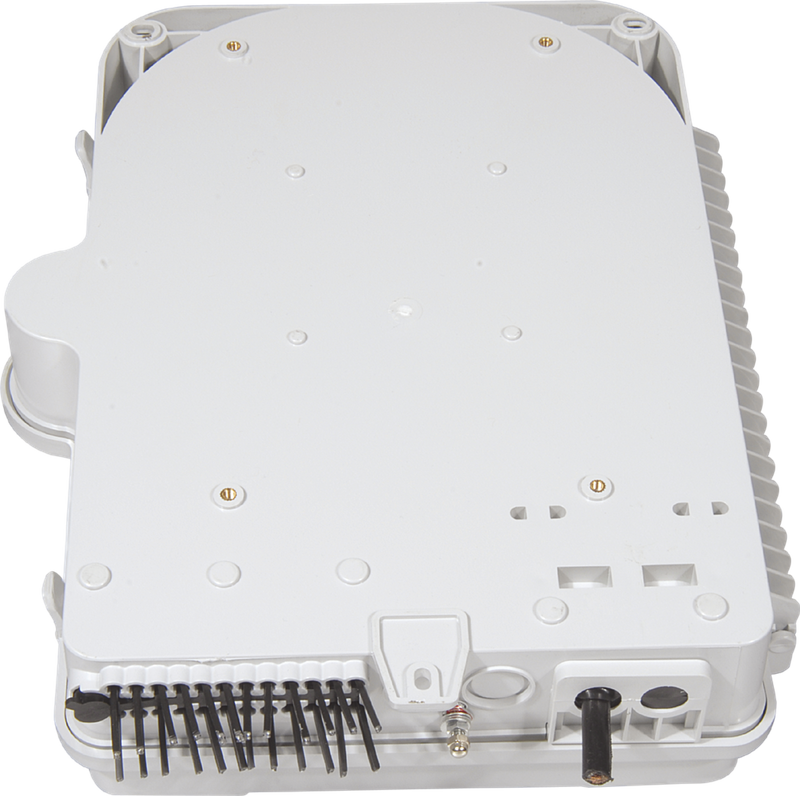

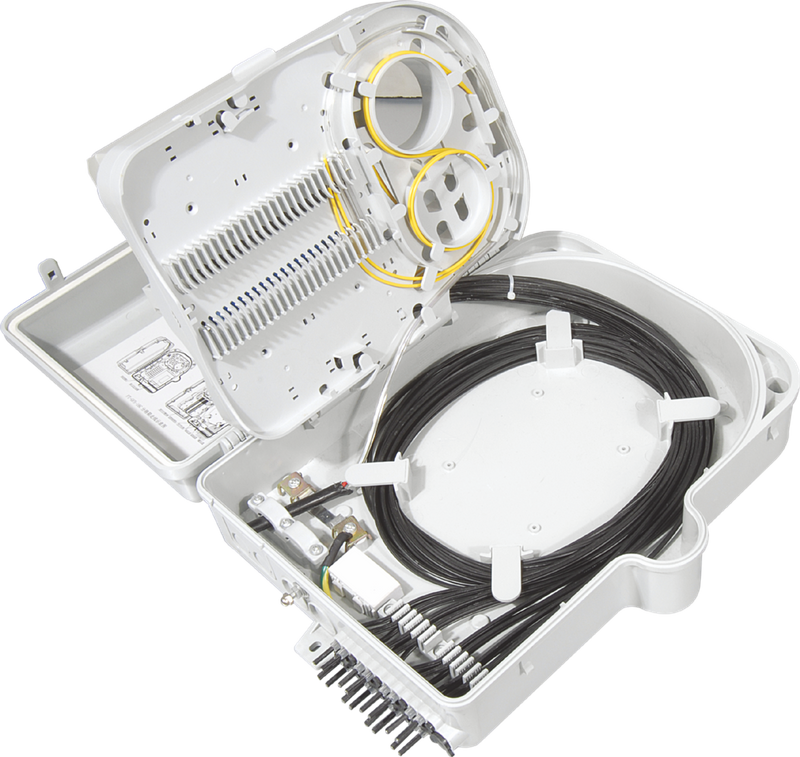

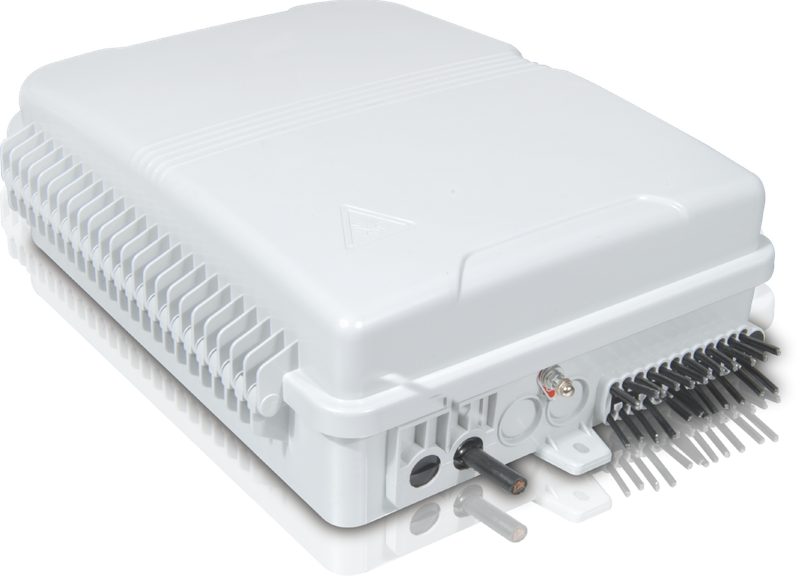

3S FOSB-16-A Fiber Optical Splitter Box is a box with splitter module slot for splitting the coming fiber signal into 16 ways. It provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
1*16 Insertion Module Splitter can be installed
16 ports cable entrance for FTTH Drop Cable
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC+ABS
A*B*C(mm)
320*240*100
PLC
1×16
1.5kg
2.3kg
White
How to order a Fiber Optical Splitter Box?
Model Rules: FOSB-16-A-XX-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
XX: Splitter
FOSB
16
A
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
P1: 1×2
P2: 1×4
P3: 1×8
P4: 1×16
