Description:

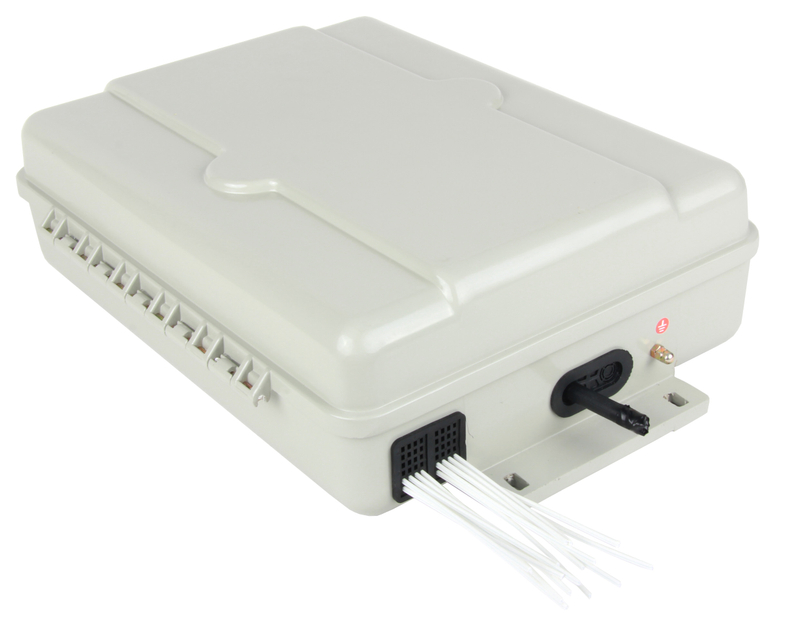

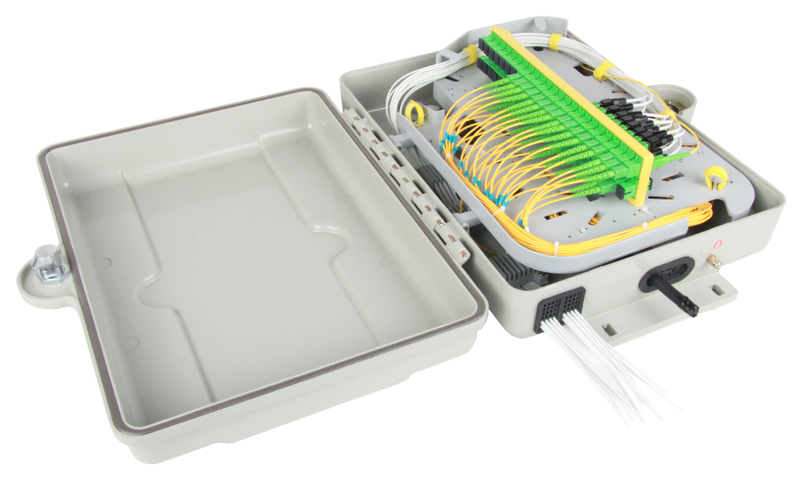

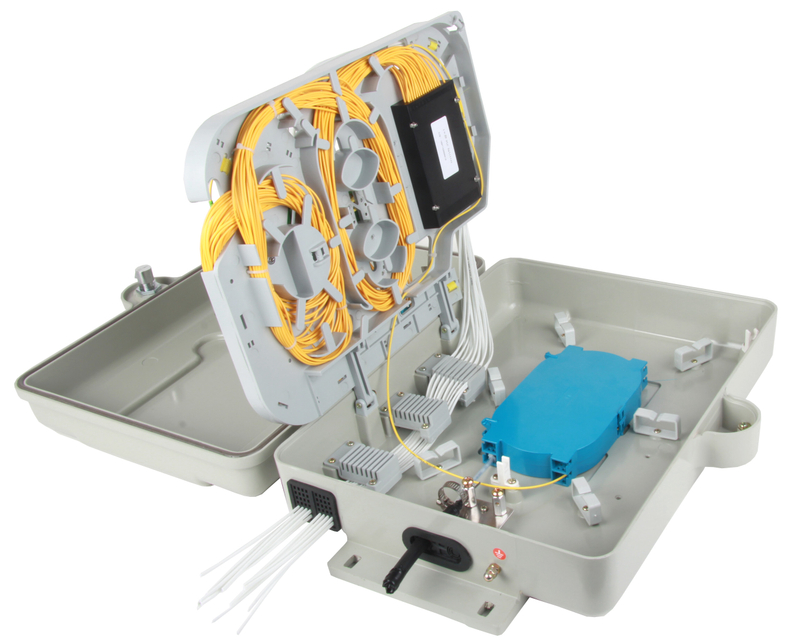

3S FOSB-32-D Fiber Optical Splitter Box provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
Features:
1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. Suitable for the fusion splice or mechanical splice
7. 1*32 Plastic Box Splitter can be installed
8. 1 uncut cable port for feeder cable
9. 48 ports cable entrance for FTTH Drop Cable
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
SMC | A*B*C(mm) 448*353*128 | PLC 1×32 Plastic Box Splitter Box Size: 120*80*18mm | 3.5kg | 4.5kg | Gray |
How to order a Fiber Optical Splitter Box?
Model Rules: FOSB-32-D-XX-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail | XX: Splitter |
FOSB | 32 | D | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | P2: 1×4 P3: 1×8 P4: 1×16 P5: 1×32 |
