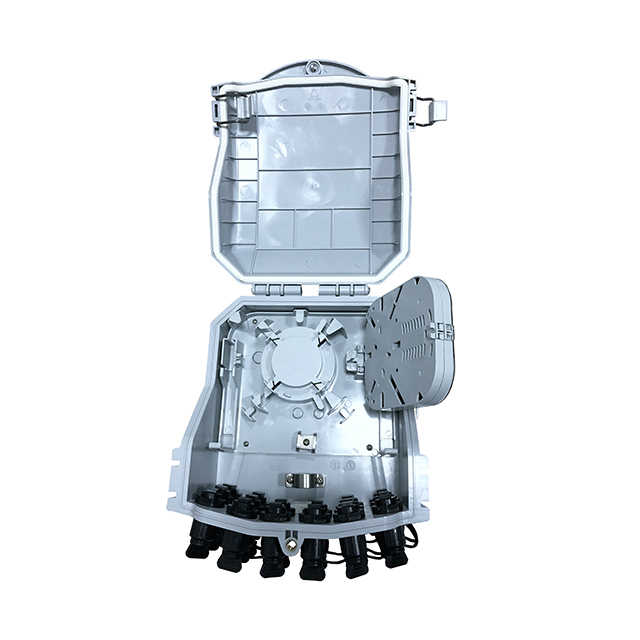

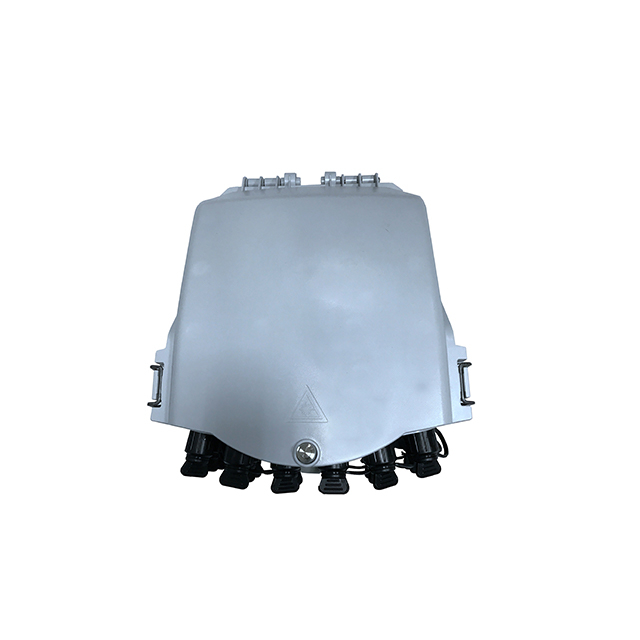

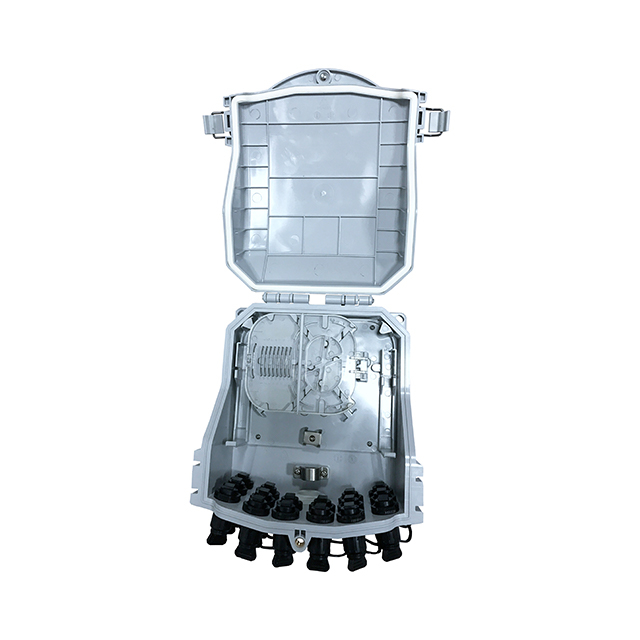

3S FOTB-PC-16-D Pre-connectorized Fiber Optical Termination Box is a 16cores fiber optical distribution box with pre-terminated fiber optical adapters at factory end. Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, it can connect the drop cable with feeder cable as the termination point in the FTTx network. Fiber optical cable can be splicing, splitting, storage and management in the box. It is normally installed in the way of wall mounting, pole mounting or aerial mounting.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Fiber bend radius control more than 40mm
16 ports cable entrance for pre-terminated distribution cables
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 241*208*117 | SC 16 Ports | 1.3kg | 1.8kg | Gray |
How to order a Pre-connectoried Fiber Termination Box?
Model Rules: FOTB-PC-16-D-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
FOTB-PC | 16 | D | SC: SC/UPC AS: SC/APC | SC: SC/UPC AS: SC/APC |
