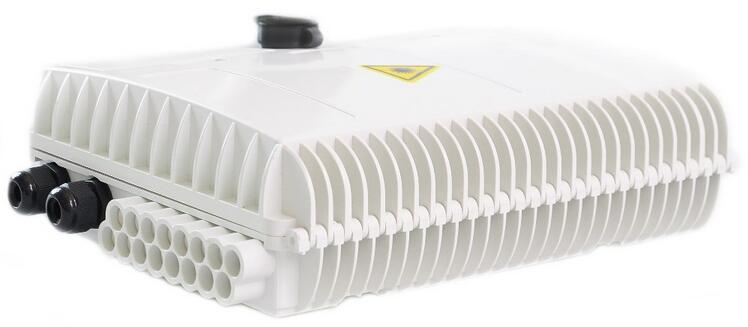

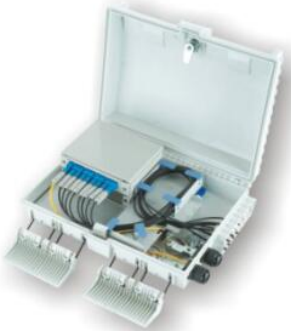

Description of FOSB-16-D Fiber Optical Splitter Box:
3S FOSB-16-D Fiber Optical Splitter Box also called fiber optical termination box or fiber optical distribution box, it provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
Features of FOSB-16D Fiber Optical Splitter Box:
1. Water-proof design with IP65 Protection level
2. Integrated with cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. 1*16 Insertion Module Splitter can be installed
Configuration of FOSB-16D Fiber Optical Splitter Box:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 310*240*110 | PLC 1×16 | 1.5kg | 2.3kg | White |
How to order a Fiber Optical Splitter Box?
Model Rules: FOSB-16-D-XX-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail | XX: Splitter |
FOSB | 16 | D | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | P1: 1×2 P2: 1×4 P3: 1×8 P4: 1×16 |
