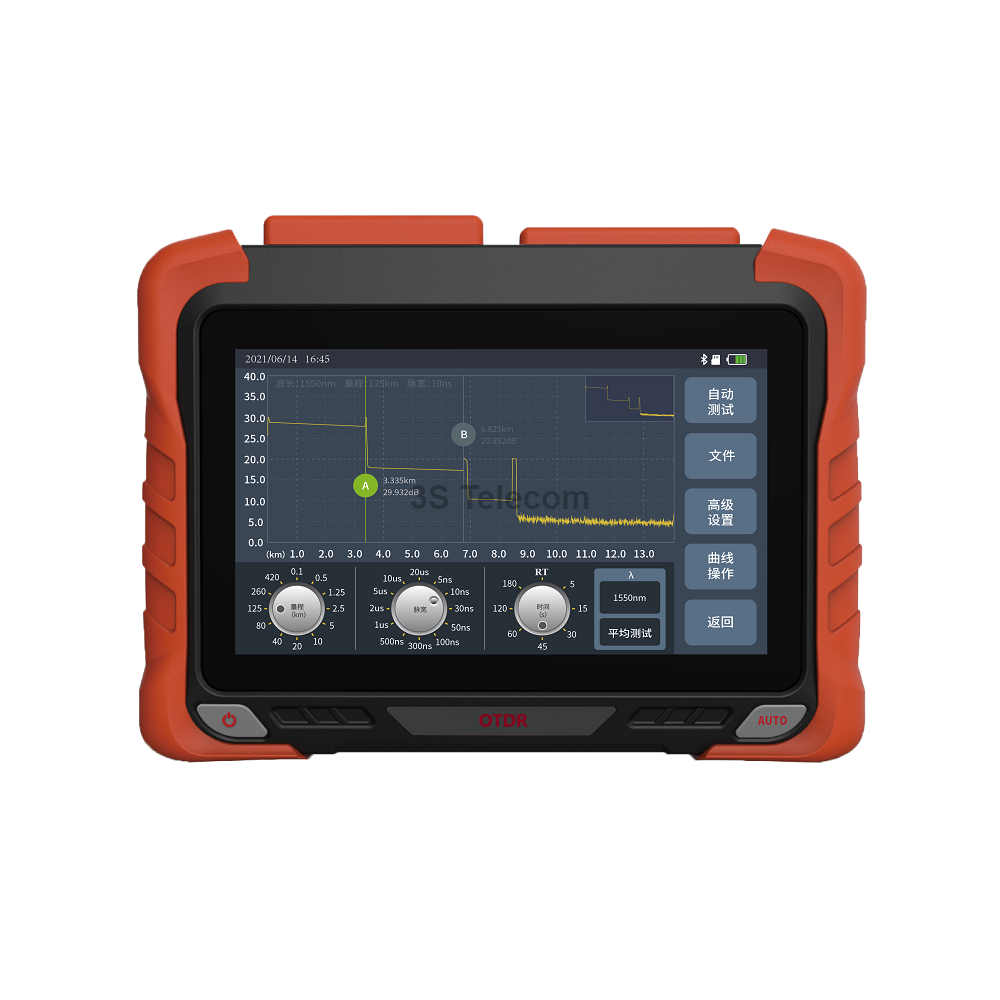

2000PON is a professional PON‑dedicated OTDR designed for GPON, EPON and FTTx networks, supporting test through 1:64 PLC splitters, enabling accurate fiber fault location and live network testing without service interruption.
Test Through 1:64 PLC Splitter — Locate splitter‑downstream faults, no splitter removal, zero service outage
Live PON Testing — 1625/1650nm filtered laser for active GPON & EPON network troubleshooting
9‑in‑1 PON Tester — Built‑in RJ45 port for fiber test plus Ping & PPPoE broadband diagnostics
WiFi APP Remote Control — Remote operation & trace sharing for efficient field‑team collaboration
For PON‑network maintenance technicians, troubleshooting faults behind PLC splitters has long been a headache. Traditional OTDRs cannot read signals past splitters, forcing crews to remove 1:64 splitters manually — which brings service outages, end‑user complaints and extra working hours.
Built exclusively for live FTTH‑PON operation, the 2000PON solves this exact pain point. It is a dedicated PON‑specific OTDR capable of testing through 1:64 PLC splitters to locate faults downstream without taking customer services offline.

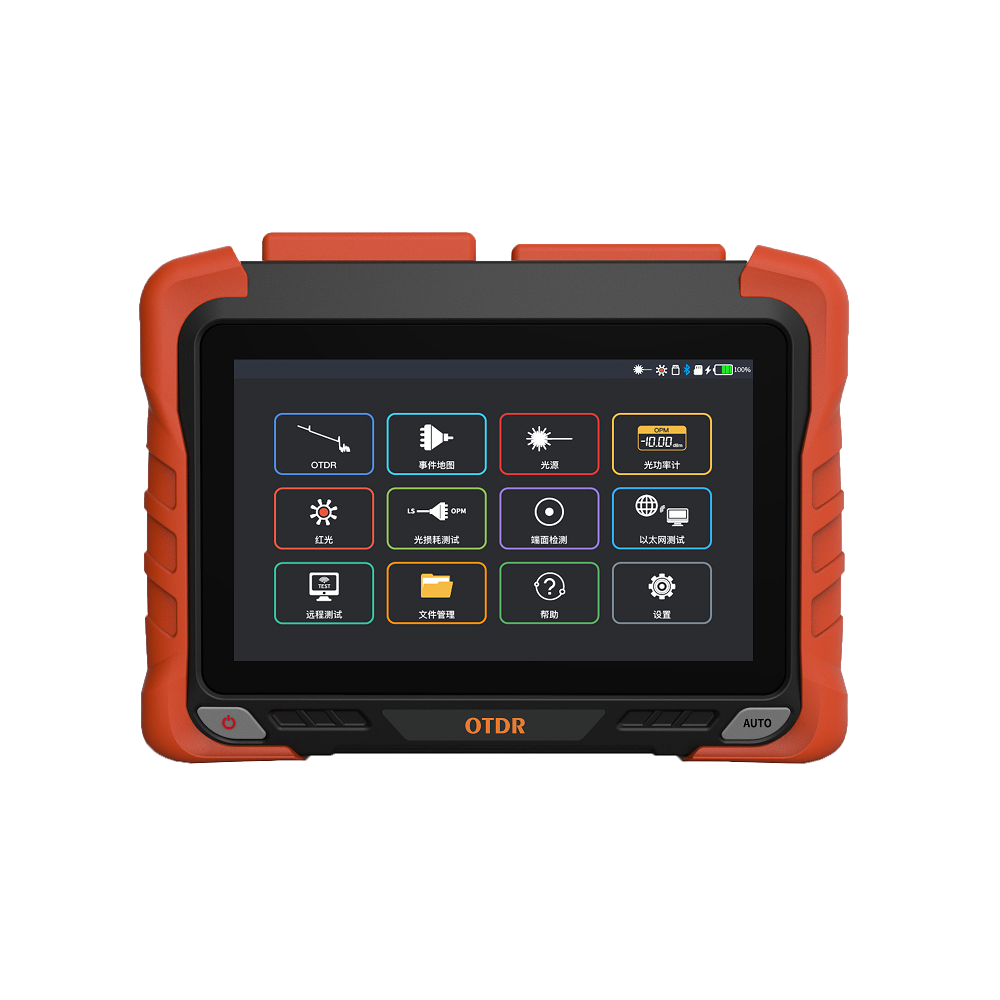

Equipped with a 7‑inch full capacitive touchscreen and 9‑in‑1 integrated functions, this unit combines fiber‑optic testing together with RJ45 Ethernet diagnostics. You can run OTDR traces, optical power checks, and perform Ping & PPPoE dial‑up tests within one device, no extra instruments required.
Additional practical features include WiFi‑based mobile APP remote control for on‑site result sharing, active APD protection for live‑fiber safety, and a large‑capacity battery supporting power‑bank external charging for all‑day field work.

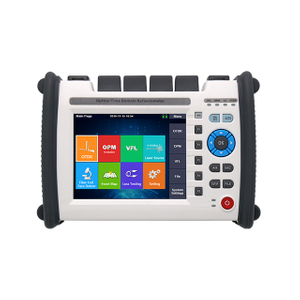

It becomes your all‑in‑one toolkit for PON construction acceptance, ODN daily inspection and live‑network fault troubleshooting. Need glove‑friendly physical‑key operation for general FTTH jobs? Check our 2100PRO OTDR. Looking for high dynamic‑range for long‑haul backbone testing? See flagship 2200MAX OTDR.
Key Features
Test through 1:64 PLC splitter — locate faults behind splitter ports, no need to remove splitters and no service interruption
Live PON testing with 1625 / 1650nm filtered wavelength, built‑in active APD protection for live‑fiber safety
2GB internal (20,000 traces), supports 64GB USB external storage
Interface
USB‑A, Type‑C, RJ45 10/100M, FC/SC/ST universal optical port
Language
English, Spanish, French, Portuguese, etc.
Environment & Mechanical
Parameter
Value
Operating Temperature
-10°C ~ +50°C, ≤95% RH non‑condensing
Storage Temperature
-20°C ~ +70°C, ≤95% RH non‑condensing
Dimensions
215 × 160 × 50 mm
Weight
1.2kg (with battery)
Certification
CE, RoHS, laser safety IEC 60825
FAQ
Q1: What are the key differences between 2000PON, 2100PRO and 2200MAX?
The 2000PON is PON‑network dedicated OTDR, it can test through 1:64 PLC splitter and comes with built‑in RJ45 Ethernet Ping / PPPoE test for PON ODN maintenance. 2100PRO targets general FTTH field work with glove‑friendly physical hard‑keys. 2200MAX is flagship model focusing on long‑haul backbone fiber testing.
Q2: What does "test through 1:64 PLC splitter" mean in practical work?
It means you can perform fault detection for fiber behind the 1:64 splitter without removing the splitter hardware. No service interruption for end‑users. Its PON dead zone is 30m, specially designed for PON ODN troubleshooting.
Q3: Can 2000PON work on active live PON networks without service interruption?
Yes. Filtered‑wavelength models support live‑PON testing. Built‑in active APD protection prevents laser damage under live‑fiber conditions.
Q4: What test functions are supported on the RJ45 Ethernet port?
The RJ45 port supports network Ping test and PPPoE dial‑up test. You can verify both optical fiber link and user broadband access status using one single tester.
Q5: What trace file format does it output? Is PC software available?
Test traces are saved as standard Telcordia SOR format. PC analysis software is available for trace review and batch report processing.
