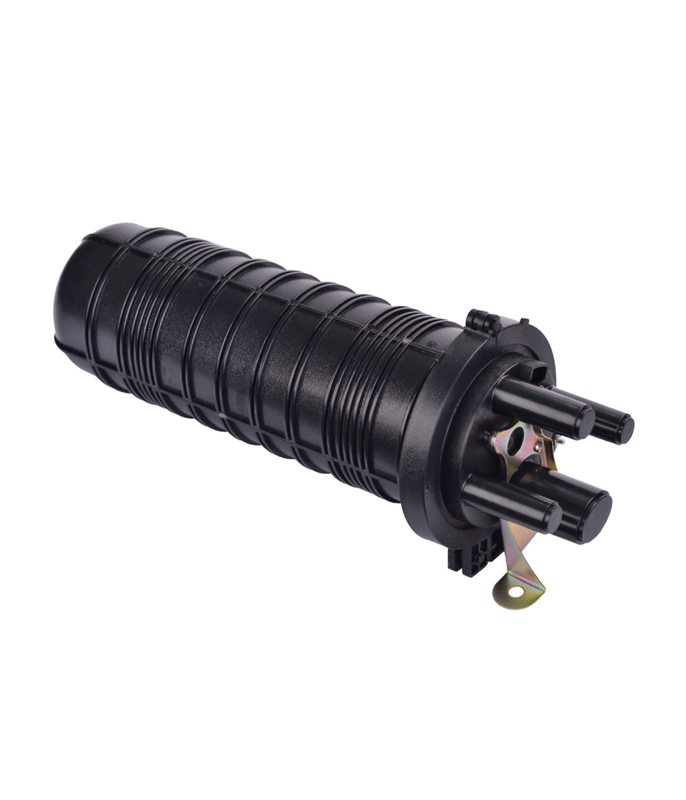

Description of Dome Type Heat Shrinkable Fiber Optic Splice Closure (FOSC):
FOSC-BDH-A4 Dome Type Heat Shrinkable Fiber Optic Splice Closure (FOSC) is a kind of heat shrinkable sealing enclosure and suitable for uncut cables. By bunchy fiber type, its fiber splice capacity can be up to max.96 cores. By ribbon fiber type, its fiber splice capacity can be up to max. 144 cores.
Specification of Dome Type Heat Shrinkable Fiber Optic Splice Closure (FOSC):
Model | FOSC-BDH-A4 |
Type | Dome type |
Sealing Structure | Heat shrinkable |
Number of Inlet/Outlet ports | 4 ports |
Cable Diameter | 3 ports×16mm, 1 port×25mm |
Maximum Capacity | Bunchy: 96 fibers; Ribbon: 144 fiber |
Capacity per Splice Tray | Bunchy: single layer:12 fibers; dual layers: 24 fibers; Ribbon: 6pcs |
Quantity of Splice Tray | 4pcs |
Body Material | PC |
Sealing Material | Thermoplastic rubber |
Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
Dimension | 440(H)×190(D)mm |
Net Weight | 2.35~2.6KG |
Temperature | -40℃~65℃ |

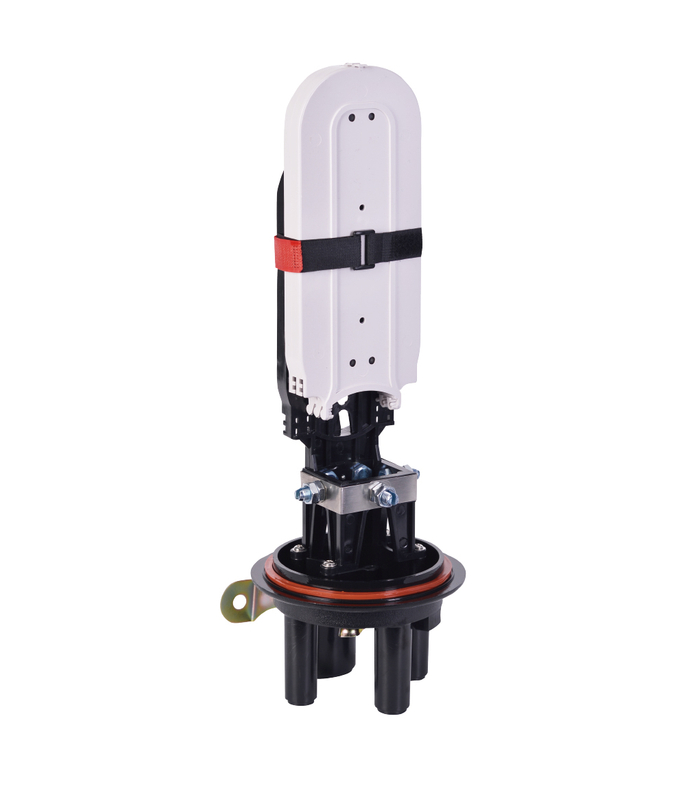

Main Components of Dome Type Heat Shrinkable Fiber Optic Splice Closure (FOSC):

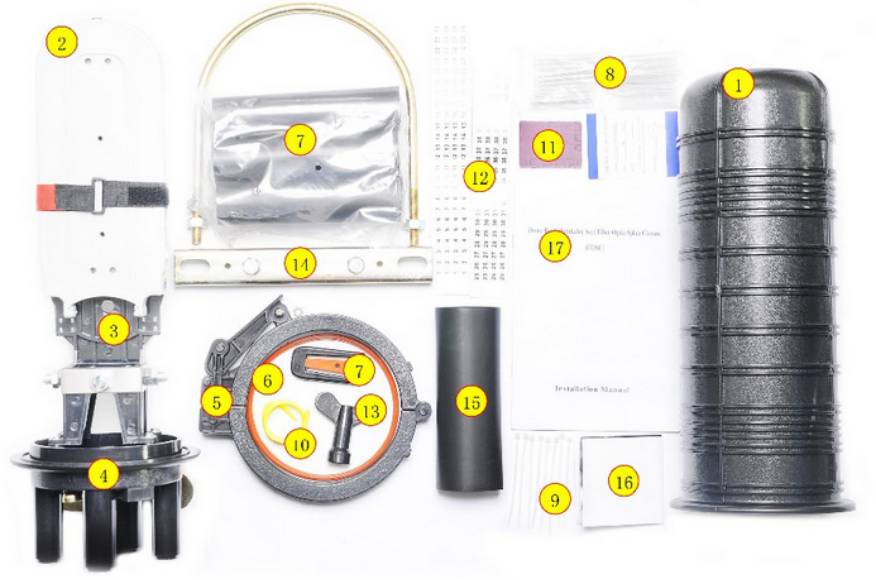

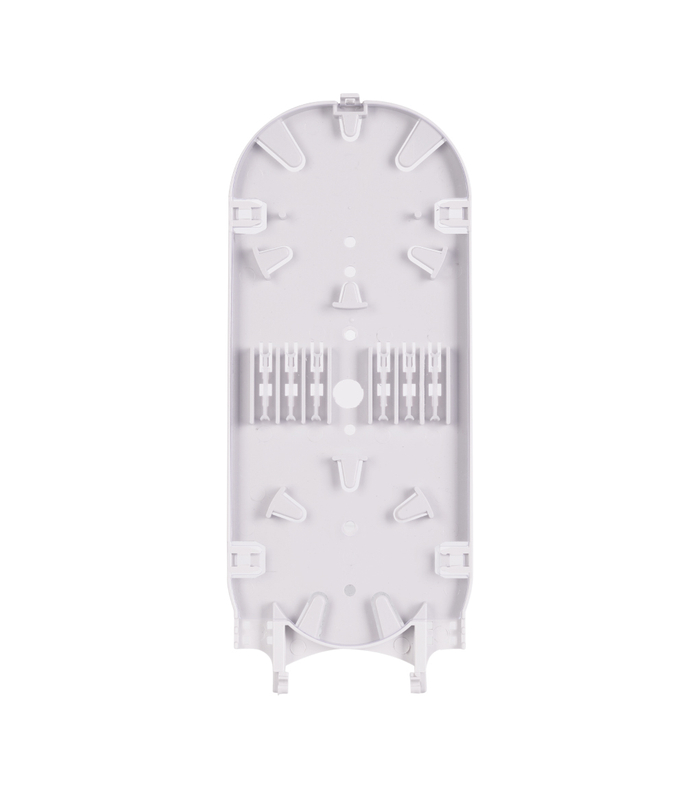

Item | Name | Usage | Quantity |
1 | Housing (Cover) | To protect splices of fiber optic cables | 1pc |
2 | Splice Tray | To fix Fiber Splice Protective Sleeves | Max. 4pcs |
3 | Fiber Holding Tray | To store loose tube fibers | 1pc |
4 | Housing (Base) | To fix internal and external structure | 1pc |
5 | Plastic Hoop | To fix Housing Cover and Base | 1pc |
6 | Sealing Grommet | To seal Cover and Base | 1 set |
Standard Accessories of Dome Type Heat Shrinkable Fiber Optic Splice Closure (FOSC):
Item | Name | Usage | Quantity |
7 | Heat Shrinkable Protective Tubes and Branching Clip | To seal fiber optic splice closure | As per capacity |
8 | Fiber Splice Protective Sleeves | To protect fiber splices | Same as capacity |
9 | Nylon Tie | To fix buffer tubes with fibers inside | 8pcs |
10 | Grounding Wire | To connect with grounding device | 1pc |
11 | Abrasive Cloth | To polish fiber optic cable | 1pc |
12 | Labeling Paper | To label fibers | 1 set |
13 | M10 Wrench | To screw nuts for strength member | 1pc |
14 | Hanging Hoop | To install on wall and pole | 1 set |
15 | Heat Shrinkable Fixing Tube (Mass) | To seal fiber cables | optional |
16 | Aluminum-foil Paper | To protect cable ports when heated | 1pc |
17 | User Manual | To instruct installation | 1pc |

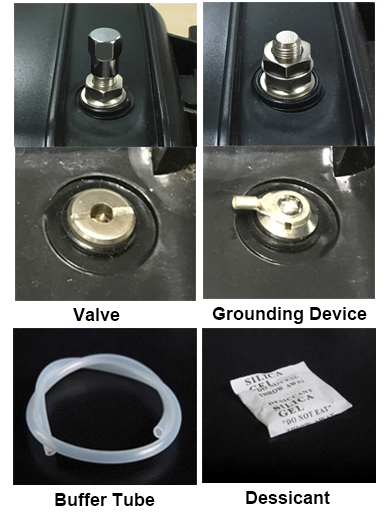

Optional Accessories of Dome Type Heat Shrinkable Fiber Optic Splice Closure (FOSC):
Item | Name | Usage | Quantity |
1 | Valve | To perform pressure and sealing testing | 1pc |
2 | Grounding Device | To derive metallic components of fiber cable | 1 set |
3 | Buffer Tube | To protect fibers and be fixed on splice trays | specified |
4 | Desiccant | To desiccate air in FOSC after sealing | 1 bag |
Ordering Information of Dome Type Heat Shrinkable Fiber Optic Splice Closure (FOSC):
Brand | 3S |
Name | FOSC: Fiber Optic Splice Closure |
Shape and Sealing | BDH: Dome type heat shrinkable sealing |
Type | A |
Cable Port | 4=4 Ports |
Fiber Optic Splice Tray | S12: 12-core S24: 24-core |
Number of Splice Trays | 1: 1 tray 2: 2 trays 3: 3 trays 4: 4 trays |
Valve | V: Valve included |
Grounding Device | G: Grounding device included |
For example: FOSC-BDH-A4S24-1VG
