Description

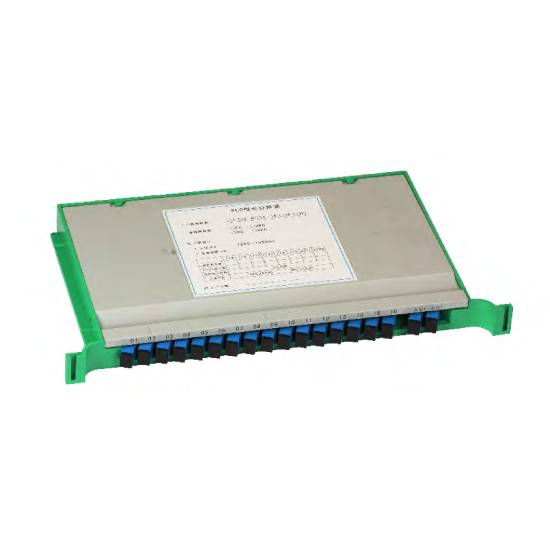

A Tray Type PLC Splitter is putting mini/micro type PLC splitter into fiber optic splice distribution tray. The splitter in and splitter out will be plugged into the fiber optic adapters as termination points. 3S provides a high precise tray type PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact tray type design. It is similar with the tray encapsulation in optical fiber distribution disc and can be placed in ODF frame or optical fiber distribution box directly. It can be easily applied in FTTx construction, optical network construction, CATV networks and etc.
Features
1. Compact design
2. Low insertion loss and low PDL
3. High reliability
4. High channel counts
5. Wide wavelength range
6. Large operating and temperature range
7. Customized packaging and configuration
8. Full Telcordia GR1209/1221 qualifications
Specification
1×N (N>2) PLCS (With connector) Optical parameters |
|
Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|
Operation wavelength (nm) | 1260~1650 |
|
Insertion loss (dB) Max | 7.7 | 11.0 | 14.0 | 17.2 | 21.3 |
Return loss (dB) Min | APC | 55 | 55 | 55 | 55 | 55 |
|
| UPC | 50 | 50 | 50 | 50 | 50 |
|
PDL (dB) Max | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 |
|
Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 |
|
Pigtail length (m) | 1.0(±0.1) or customer specified |
|
Fiber type | SMF-28e with 0.9mm tight buffered fiber |
|
Operation temperature (°C) | -20~65 |
|
Storage temperature (°C) | -40~85 |
|
Dimension (L×W×H) (mm) | 308×200×25/customization |
|
2×N (N>2) PLCS (With connector) Optical parameters |
|
Parameters | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|
Operation wavelength (nm) | 1260~1650 |
|
Insertion loss (dB) Max | 8.1 | 11.5 | 14.5 | 17.8 | 21.8 |
|
Return loss (dB) Min | APC | 55 | 55 | 55 | 55 | 55 |
|
| UPC | 50 | 50 | 50 | 50 | 50 |
|
PDL (dB) Max | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
|
Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 |
|
Pigtail length (m) | 1.0(±0.1) or customer specified |
|
Fiber type | SMF-28e with 0.9mm tight buffered fiber |
|
Operation temperature (°C) | -20~65 |
|
Storage temperature (°C) | -40~85 |
|
Dimension (L×W×H) (mm) | 308×200×25/customization |
|
