Description:

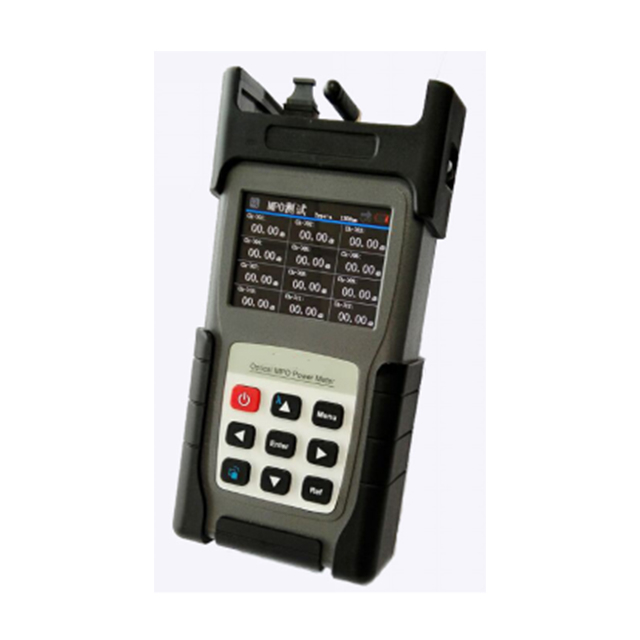

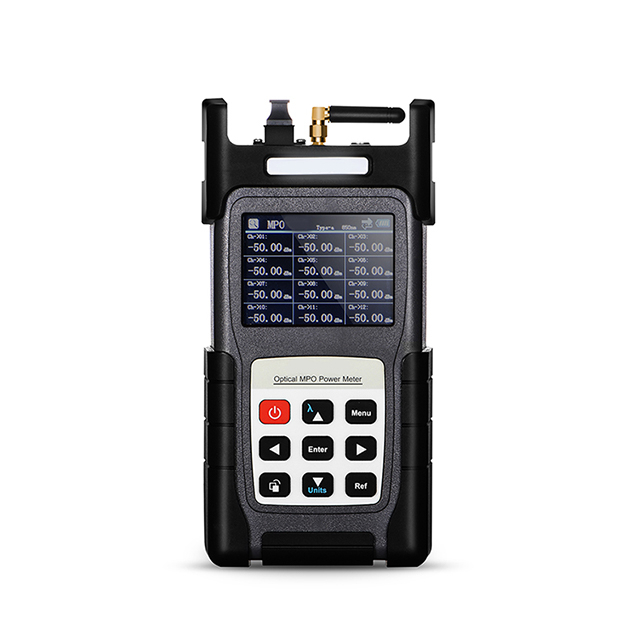

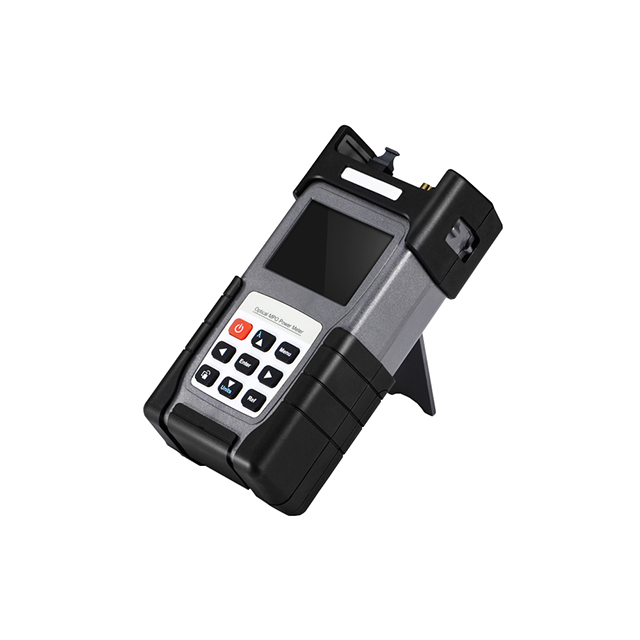

MPO Optical Power Meter and MPO Optical Laser Source are special for testing MPO fibers. At recent years, as the rapid development of data centre and cloud computing, also with rapid growth of multi fibers (MPO) requirement. However, on the site of measurement process, traditional single channel Optical power meter with complex measurement and low credibility. Based on this, MPO tester MPO-PMA power meter & MPO-LSA light source arise at this moment. The product can test the insertion loss of MPO fibers and polarity with only one key. And the integration of a variety of data storage, threshold analysis, data export and other applications. Compared with the traditional instrument, the test efficiency of MPO-PMA power meter & MPO-LSA laser source are more than 10 times. It is the best choice for field application of MPO room test, calibration of production line, determination of polarity.
Features:
12, 24, Customized
High Precision of color LCD display
100 history data reports
If there is no operation in 5 min, the screen will adjust the backlight automatically and enter the power saving mode

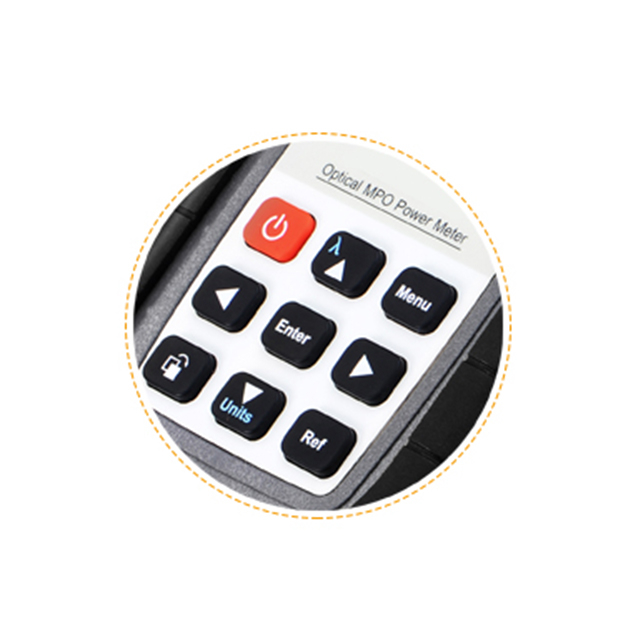

Switch 4 functions interface with one key (single channel optical power meter, 12 channels Optical power meter, MPO testing, Column interface）

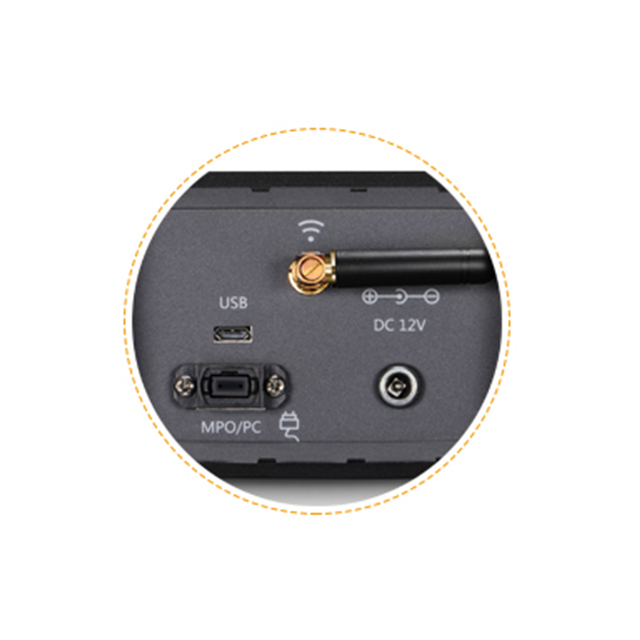

Copy the data to the computer directly with USB interface, which is convenient for user
The user can customize the threshold to test

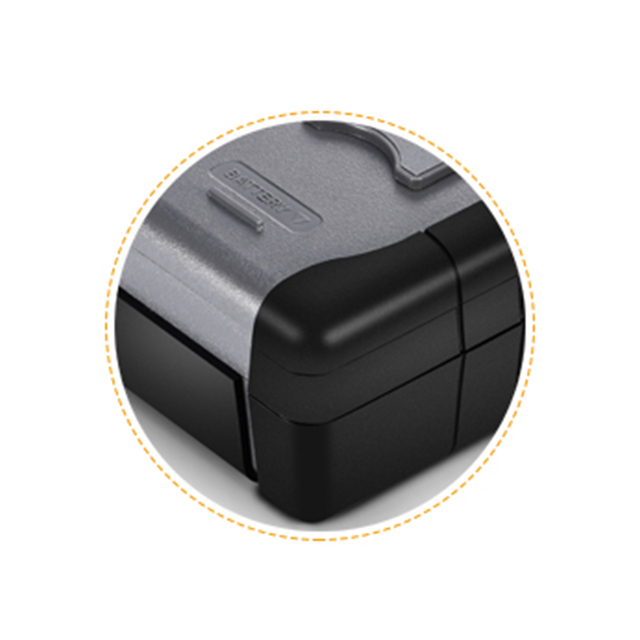

Built-in 3500 Ma high-capacity lithium battery, work time more than 10 hours
Humanized operation shape, easy to use
Specification:
MPO Laser Source Specification (MPO-LSA) |
Laser Type | FP LD |
Wavelength | 850/1300nm or 1310/1550nm |
Frequency | 0Hz//270Hz/1KHz/2KHz |
Fiber Type | 9/125 or 50/125 or 62.5/125 |
Interface Type | SM/MM MPO/PC 12 or 24 pins female |
Output Power | > -10dBm |
Stability | ±0.2(15min.) ±0.5(8hours) |
MPO Power Meter Specification (MPO-PMA) |
Detector | InGaAs |
Wavelength Range | 850～1700nm |
Calibration Wavelength | 850/1300 or 1310/1550nm |
Optical Power Meter Range | +3～-50 dBm |
Insertion Loss Accuracy | < 0.2s/channel |
Resolution | 0.01dB |
Linearity | ±0.2dB (+5～-50dBm) |
System Control | USB |
Interface Type | SM/MM MPO/PC 12 or 24 pins female |
Common indicator |
Working Temperature | -5℃～+40℃ |
Working Temperature | -5℃～+40℃ |
Continuons Working Hours | ＞10h |
Weight | ＜850g |
Channels | 12、24 or Customized |
Outline Dimension | 220 x 110 x 70mm |
