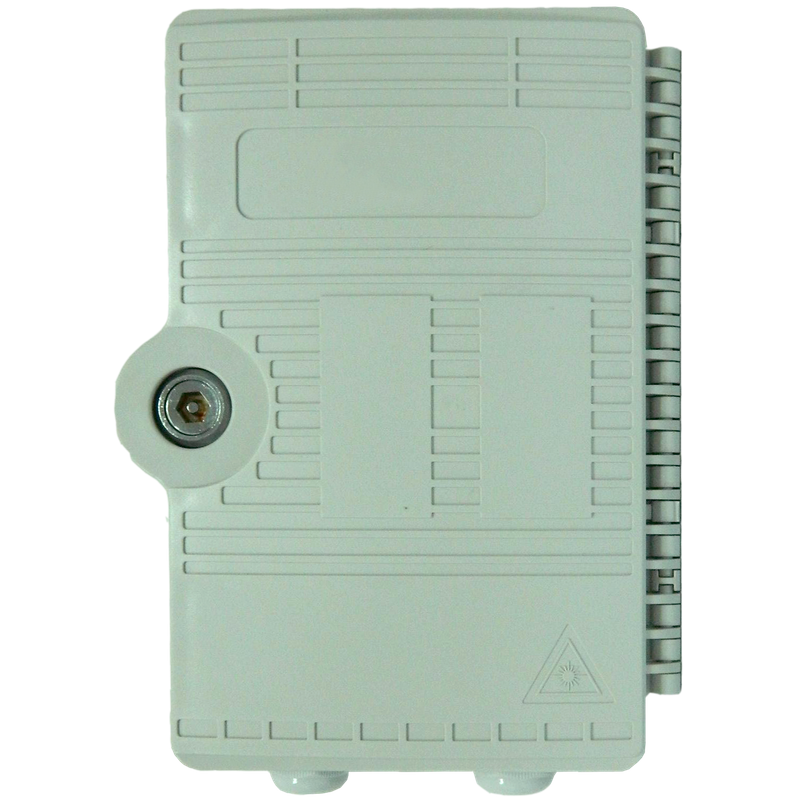

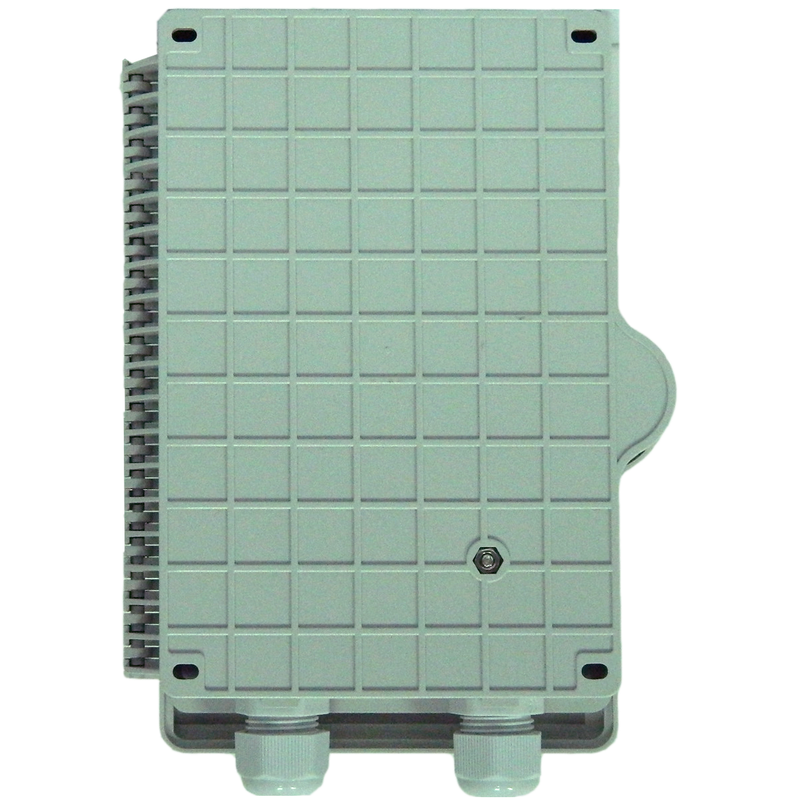

3S FOSB-2-A Fiber Optical Splitter Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage fiber splitter in a limited space. It is designed for FTTH (Fiber to the Home) with protective housing for all the passive fiber equipment installed inside.
Features:
Water-proof design with IP65 Protection level

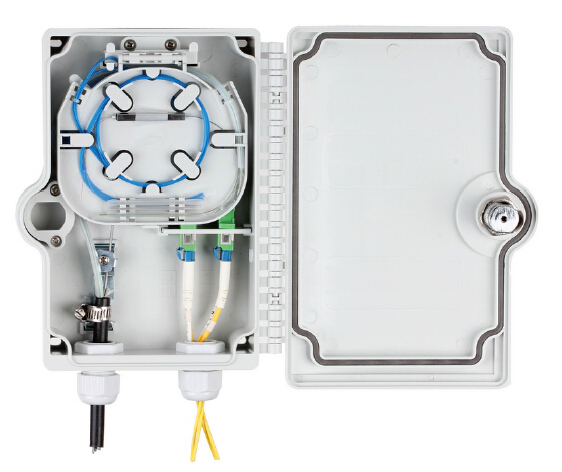

Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
1*4 spitter can be installed as an option

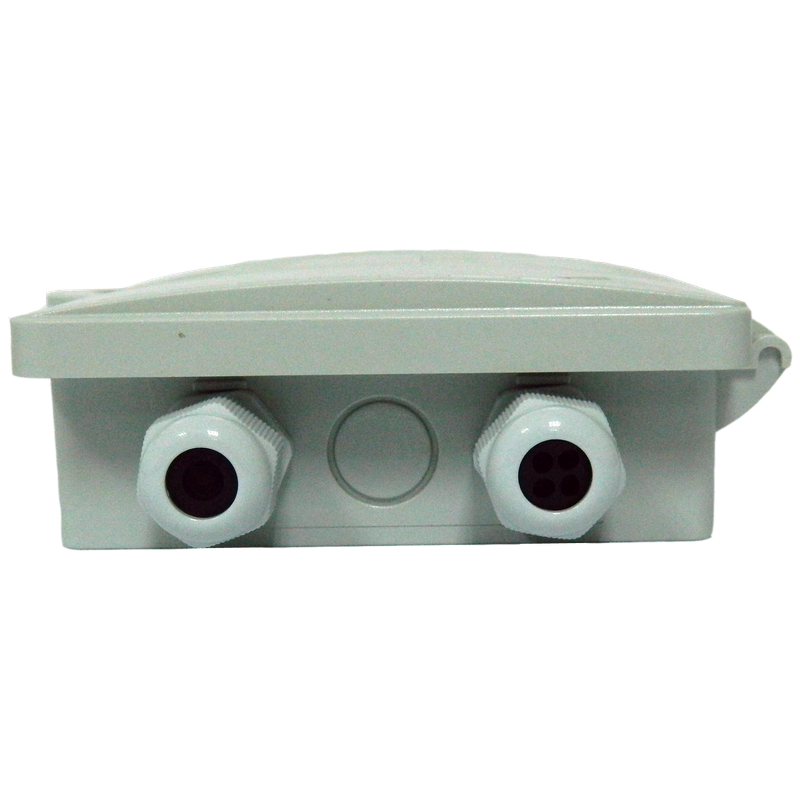

2 ports cable entrance for fiber optic cable
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC
A*B*C(mm)
208*153*52
SC
2 Ports
LC
4 Ports
PLC
1×4
0.45kg
0.7kg
White
How to order a Fiber Optical Splitter Box?
Model Rules: FOSB-2-A-XX-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
XX: Splitter
FOSB
2
A
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
P1: 1×2
P2: 1×4 (LC)
