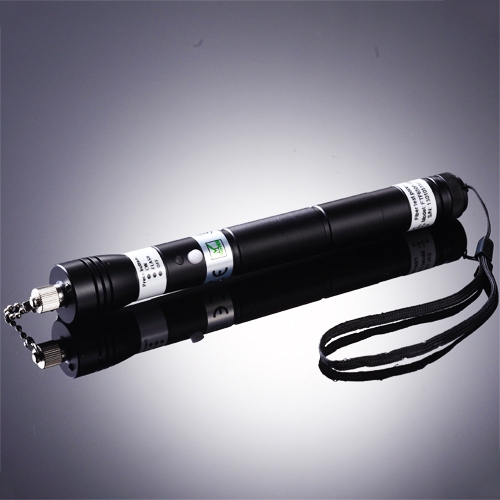

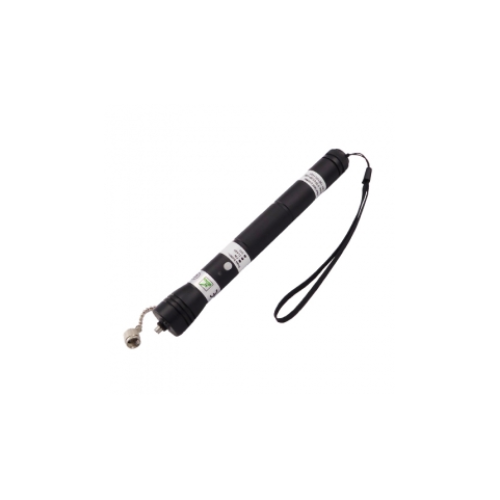

VFL-50C High Power 50mW Visual Fault Locator
Description:

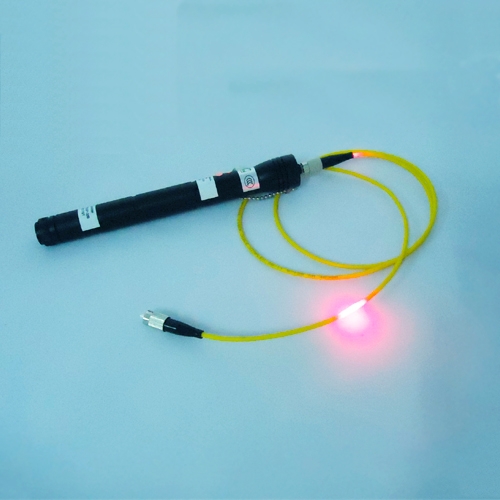

VFL-50C High Power Visual Fault Locator is a handheld type 50mW fiber optical fault detector. It utilizes visible 650nm red light source driven by constant current light source, emitting stable and reliable red light in order to realize high efficient inspection of fiber optic breaks, bending etc. It is an useful tool for field engineers with bright red light in various fiber optic detection, optical fiber connector inspection, fiber tracing and other onsite construction applications. The red light enters into multi mode and single mode optical fiber after connection with optical interface.
Features:
● High output power stability, long distance fiber optic detection distance, rugged and reliable
● High efficiency coupling laser supports 2.5mm universal adapter interface (FC/SC/ST). Both DC and modulation mode are available.
● Long operating endurance time. AAA battery operated fiber optic detectors enables more than 60 hours operating endurance time.
● Multiple functions including fiber breakage, bending fault location, OTDR dead zone failure check, end-to-end fiber identification, optimization of mechanical splices etc
Application:
● Telecommunication, CATV engineering and maintenance
● Integrated wiring construction and maintenance
● Optic device production and research
● Other fiber engineering
Specification:
VFL-50C |
Working wave | 650nm±10nm |
Output power | 50mW |
Laser class | IIIb |
Transmission distance | 30Km-40Km |
Fiber mode | SM/MM |
Working mode | CW/Modulated |
Modulation | CW/2Hz |
Connector | Universal Connector 2.5mm, suitable for FC SC ST |
Power Supply | 2pcs AA battery |
Working time | 50mW continuous work≥10h |
Operating temperature | -10ºC~+60ºC |
Storage temperature | -10ºC~+60ºC |
Weight | 160g |
Length x diameter | Ø23.5 × L197mm |
Maintenance:
1) The optical fault locator should be stored in good condition and keep the connector clean.
2) Never try to look directly into the VFL. The 650nm red laser is harmful to naked eyes.
3) Fix the battery correctly, and take battery out while no use of the detector.
Package included:
● 1 × Fiber Optic Visual Fault Locator
● 1 × Packing box
