Description:

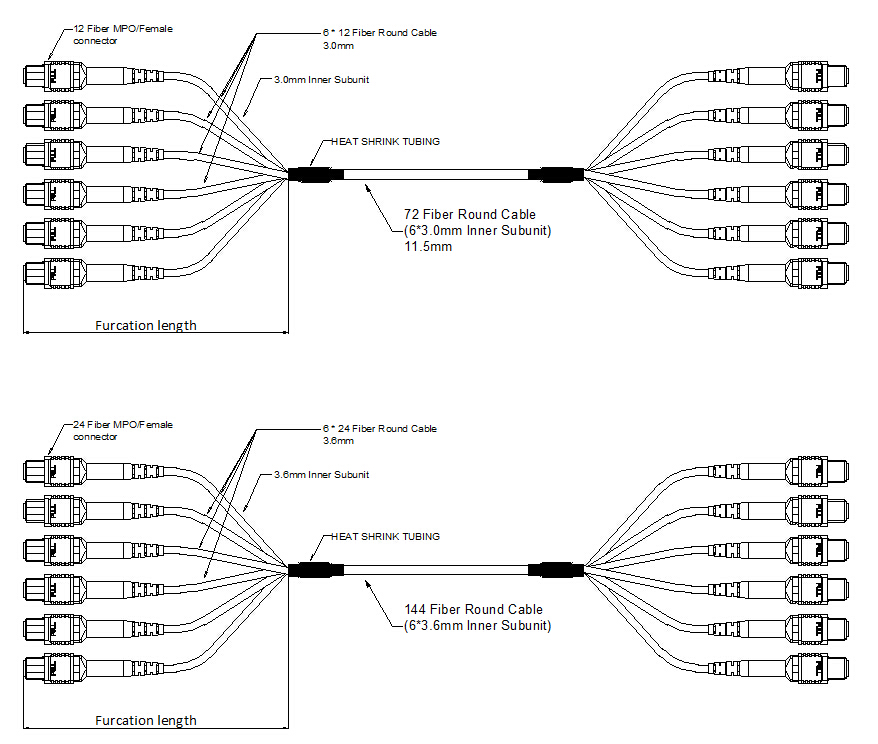

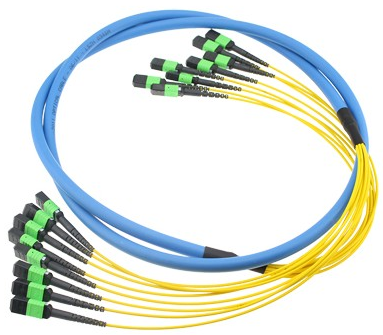

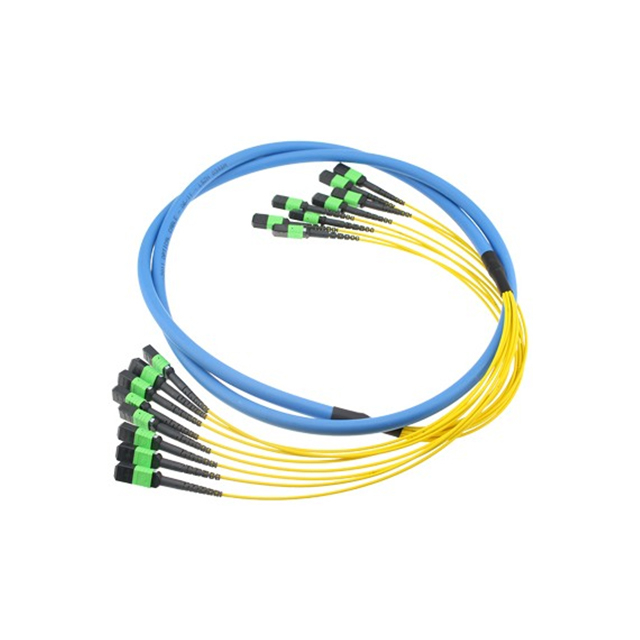

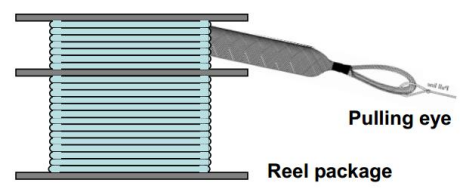

MPO Trunk Cable Assemblies consist of 12~144F fiber optic cable and 12F MPO-MPO, MTP-MTP or MPO-LC connectors. Trunk Cable Assemblies if with pulling eye are designed to be quickly pulled and connected to plug and play Modules for high performance and high density fiber connections.
Features:
1. Available from 12 to 144F fiber optic cable
2. Optional pulling eye design to fit for different installation environment

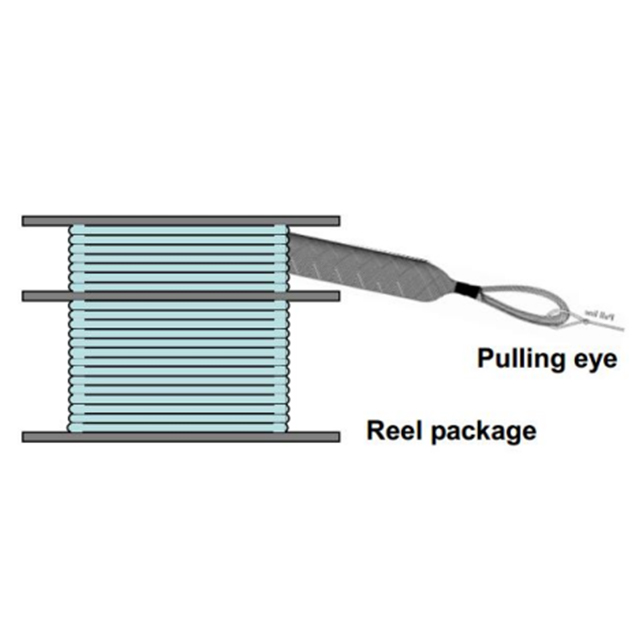

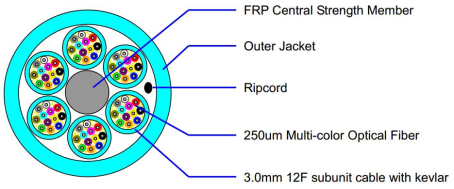

3. Round & mini-core cable structure to eliminate bend sensitivity
4. Available in multi-mode (OM1 62.5/125um, OM2/OM3/OM4 50/125um in 10/40/100G) and single mode (G652D, G657A1, etc.) fiber types
Applications:
1. Backbone installation
2. High Density Fiber Management
3. DACS
4. LAN/WAN Premises
Standard:
1. TIA/EIA 604-5, IEC 61754, Telcodia GR-1435-CORE, GR-326-CORE, RoHS
2. Low smoke (IEC 61304), Zero Halogen (IEC 60754-1), Fire retardant (IEC 60332-3C), Corrosion resistance (IEC 60754-2)
Mechanical Performance:
Fiber | Fanout Length (cm) | Max. Tensile Strength of Pulling Eye (N) | Impact Resistance of Pulling Eye (N/cm) | Static Bending Radius (mm) | Dynamic Bending Radius (mm) | Working Temperature (°C) |
12 | 60~100 | 450 | 100 | 10D | 20D | -20~+60 |
24 | 60~100 | 450 | 100 | 10D | 20D | -20~+60 |
48 | 60~100 | 450 | 100 | 10D | 20D | -20~+60 |
72 | 60~100 | 450 | 100 | 10D | 20D | -20~+60 |
96 | 60~100 | 450 | 100 | 10D | 20D | -20~+60 |
144 | 60~100 | 450 | 100 | 10D | 20D | -20~+60 |
Ordering Information:
Name | TCA: Trunk Cable Assemblies |
A End Connector | MZ: MPO female MP: MPO male TZ: MTP female TP: MTP male |
B End Connector | MZ: MPO female MP: MPO male TZ: MTP female TP: MTP male LC: LC/UPC AL: LC/APC LCU: LC/UPC uniboot ALU: LC/APC uniboot SC: SC/UPC AS: SC/APC |
Loss Grade | S: standard loss L: loss loss |
Fiber Type | A: G.652D B: G.657A1 C: G.657A2 D: OM1 E: OM2 F: OM3 G: OM4 |
Fiber Count | 12: 12 fibers 24: 24 fibers 48: 48 fibers 72: 72 fibers 96: 96 fibers 144: 144 fibers |
Cable Jacket | LZ: LSZH NR: OFNR NP: OFNP |
A Fanout Length | 006: 0.6 meter 010: 1 meter 100: 10 meters |
B Fanout Length | 006: 0.6 meter 010: 1 meter 100: 10 meters |
Total Length | 001: 1 meter 010: 10 meters 999: 999 meters |
Polarity | A: 1-1, 2-2, 3-3,... B: 1-12, 2-11, 3-10,... C: 1-2, 2-1, 3-4, 4-3,... |
Pulling Eye | S: single D: dual N: none |
Packing | Default: PE bag R: wooden reel |
