Description:
FTTH Drop Cable Type Fiber Optic Splice & Splitter Closure features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.
Features:
1. Dis-mountable adaptor panel
2. Support midspan termination
3. Easy operation and installation

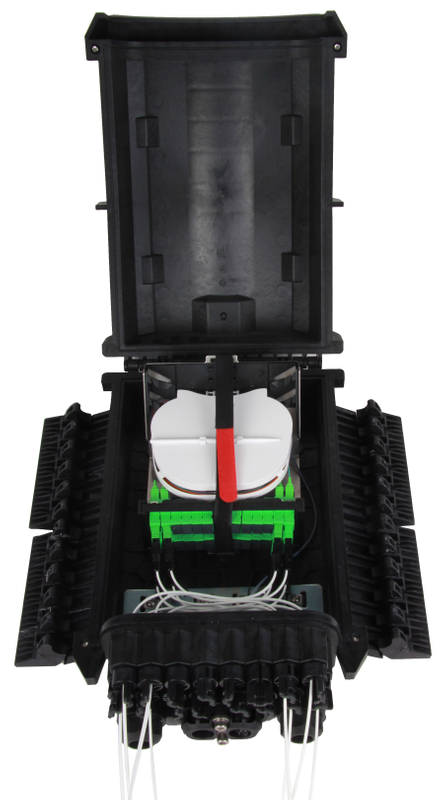

4. Rotatable and dis-mountable splice tray for easy splicing
Applications:
1. Wall mounting & pole mounting installation
2. Suitable for 2*3mm Indoor FTTH Drop Cable and Outdoor Figure 8 FTTH Drop Cable
Specification:
Model | FOSC-JCD-24-I2 | FOSC-JCD-16-I4 | FOSC-JCD-24-I4 |
Adapter | 24pcs of SC | 16pcs of SC | 24pcs of SC |

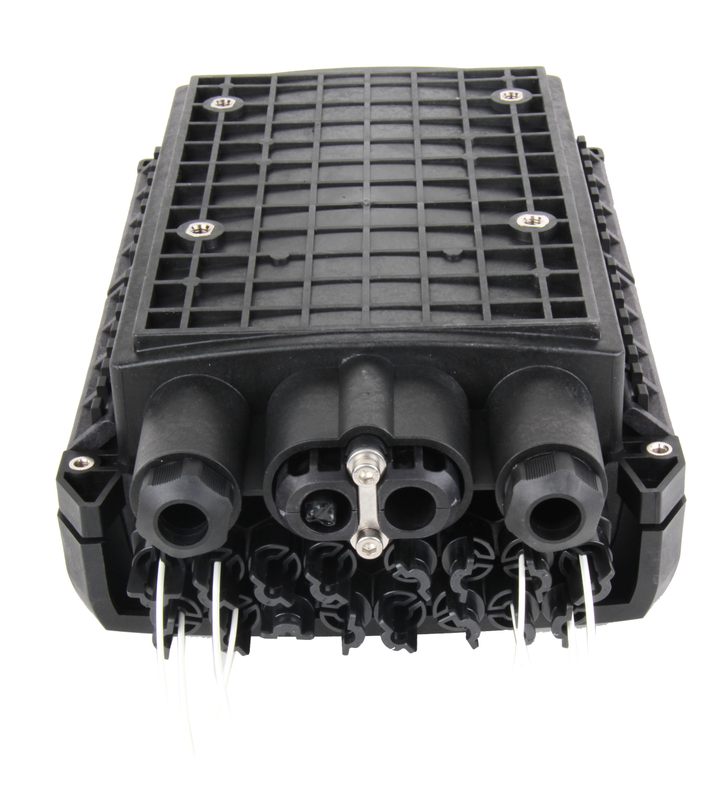

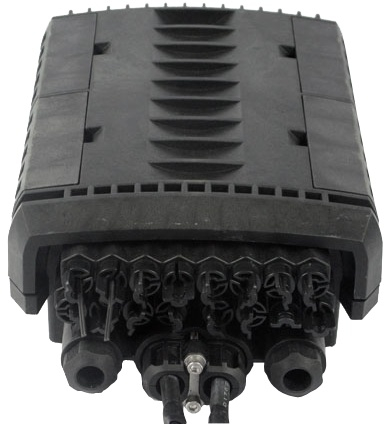

Cable Ports | 1 oval uncut port | 1 oval uncut port | 2 round ports | 1 oval uncut port | 2 round ports |
Applicable Cable Diameter | 10~17.5mm | 10~17.5mm | 8~17.5mm | 10~17.5mm | 8~17.5mm |

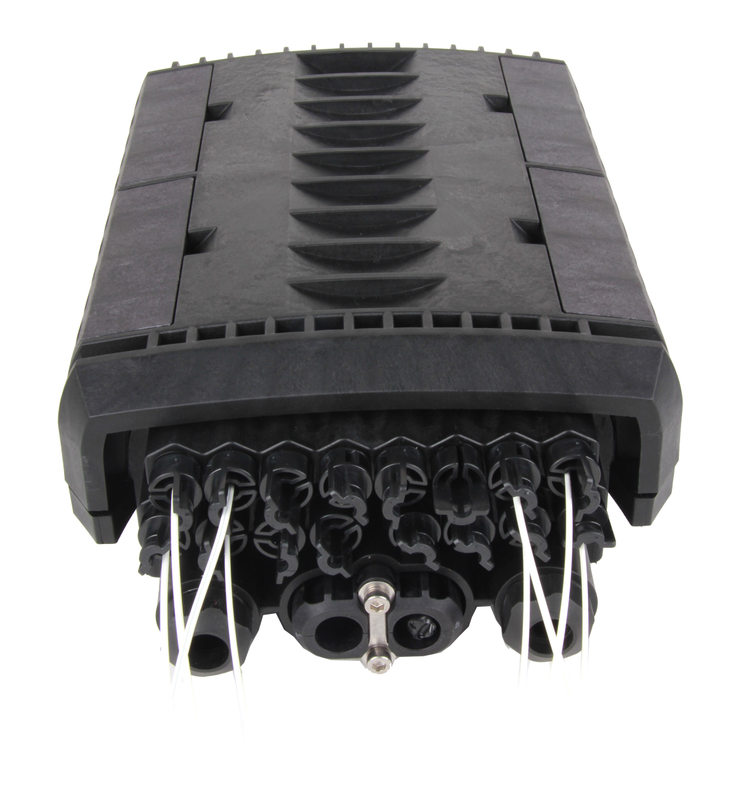

Drop Cable Ports | 24 ports | 16 ports | 24 ports |

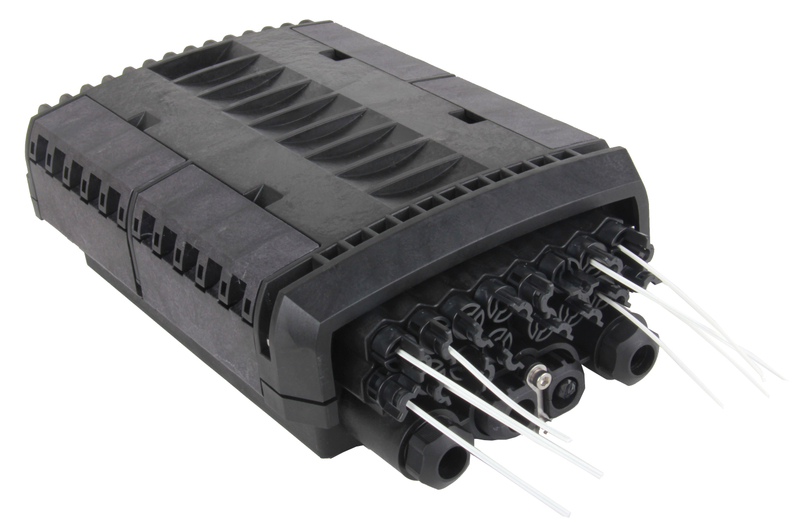

Applicable Cable Diameter | 2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable and 4mm cable or 7mm cable |
Dimension | 385*245*130mm | 385*245*130mm | 385*245*155mm |
Material | modified polymer plastic |
Sealing Structure | mechanical sealing |
Color | black |
Maximum Splicing Capacity | 48 fibers (4 trays, 12 fibers/tray) |
Applicable Splitter | 1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters |
Sealing | IP68 |
Impact Test | IK10 |
Pull Force | 100N |
Midspan Entry | yes |
Storage (Tube/Micro Cable) | yes |
Net Weight | 4kg |
Gross Weight | 5kg |
Packing | 540*410*375mm (4pcs per carton) |
