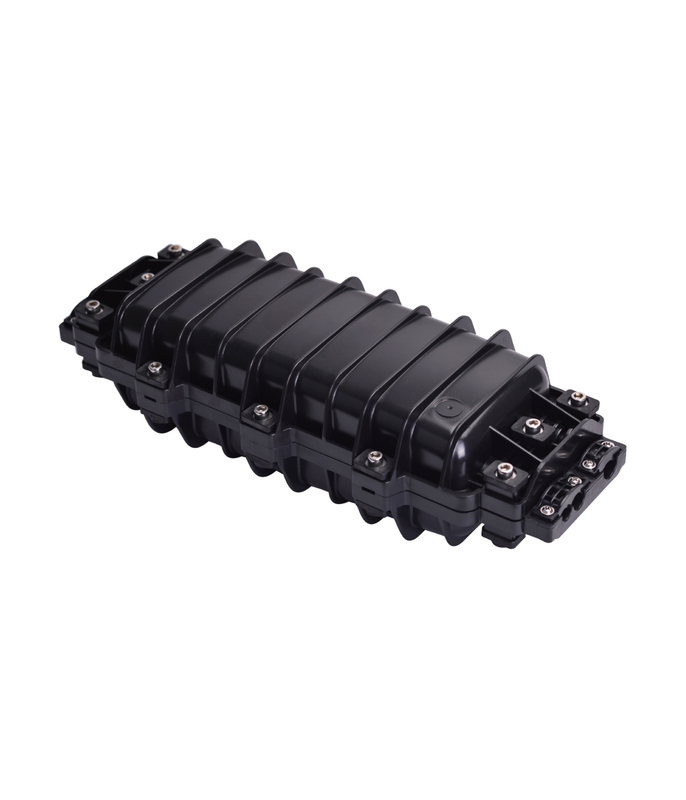

96 Cores Inline Horizontal Fiber Optic Splice Closure FOSC

Type

Inline type

Number of Inlet/Outlet ports

6 ports

Cable Diameter

2 ports×13mm, 2 ports×16mm, 2 ports×20mm

Maximum Capacity

Bunchy: 96 fibers;

Ribbon: 144 fibers

Capacity per Splice Tray

Bunchy: single layer: 12 fibers; dual layers: 24 fibers;

Ribbon: 6pcs

Quantity of Splice Tray

4pcs

Body Material

PC

Sealing Material

Thermoplastic rubber

Assembling method

Aerial, direct buried, pipelined, wall mounting, manhole

Dimension

470(L)×180(W)×125(H)mm

Net Weight

2.3~3.0KG

Temperature

-40℃~65℃

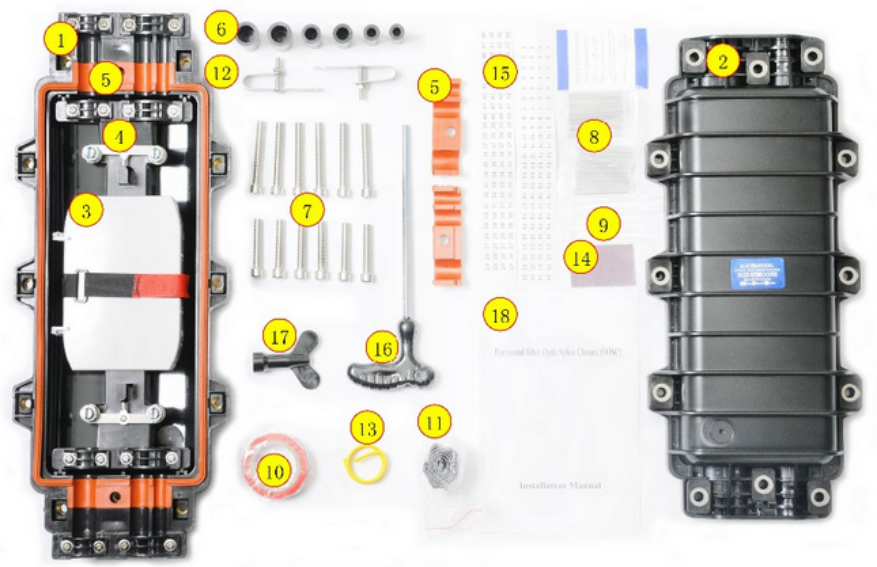

1

Housing (Bottom)

To protect splices of fiber optic cables

1pc

2

Housing (Cover)

To protect splices of fiber optic cables

1pc

3

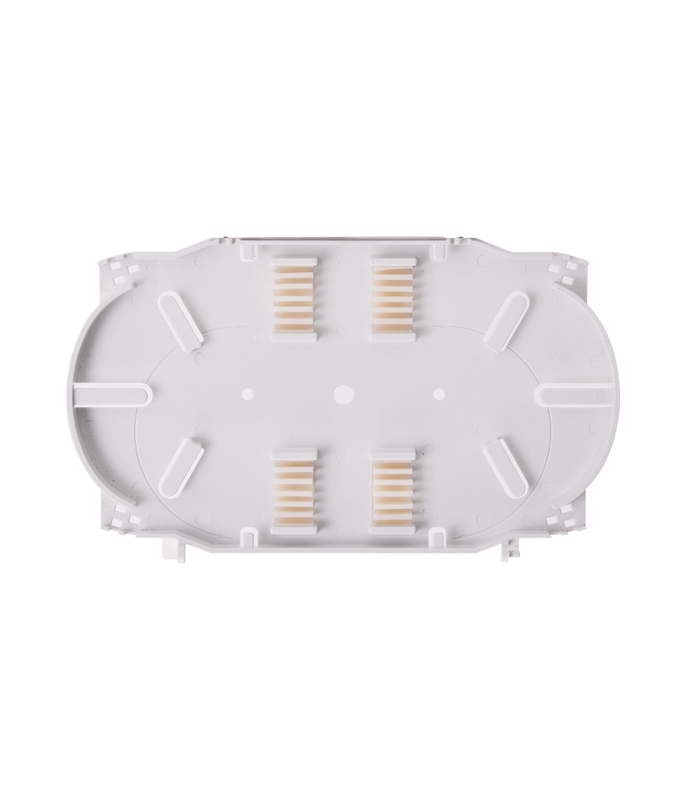

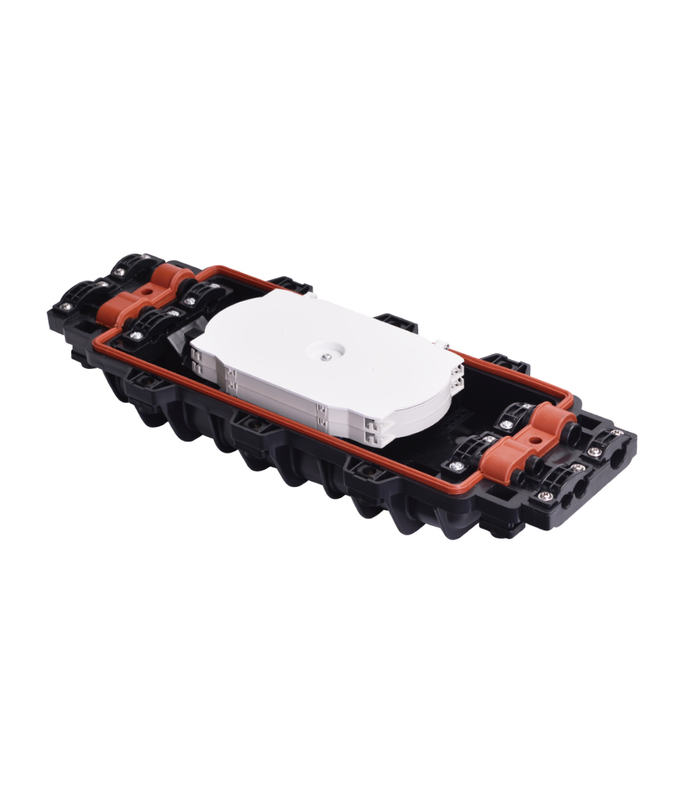

Splice Tray

To fix Fiber Splice Protective Sleeves

Max. 4pcs

4

Foundation

To fix fiber cable, strength member and splice trays

1pc

5

Sealing Grommet

To seal bottom and cover

1 set

6

Plug

To seal empty ports

6pcs

7

Bolt

To fix bottom and cover

1 set

8

Fiber Splice Protective Sleeves

To protect fiber splices

Same as capacity

9

Nylon Tie

To fix buffer tubes with fibers inside

8pcs

10

Insulation Tape

To enlarge cable diameter for fixation

1 roll

11

Sealing Tape

To enlarge cable diameter for sealing grommet

1 roll

12

Hanging Hook

For aerial installation

2pcs

13

Grounding Wire

To connect with grounding device

1pc

14

Abrasive Cloth

To polish fiber optic cable

1pc

15

Labelling Paper

To label fibers

1 set

16

M8 Wrench

To screw bolts of housing

1pc

17

M10 Wrench

To screw nuts for strength member

1pc

18

User Manual

To instruct installation

1pc

1

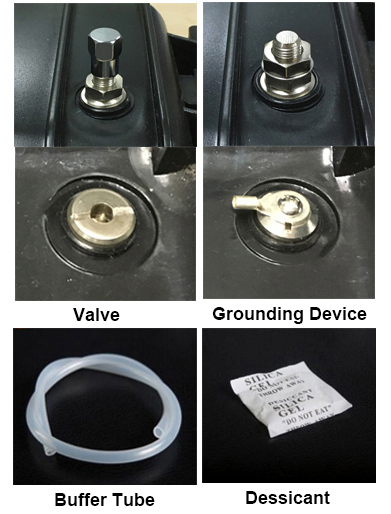

Valve

To perform pressure and sealing testing

1pc

2

Grounding Device

To derive metallic components of fiber cable

1 set

3

Buffer Tube

To protect fibers and be fixed on splice trays

specified

4

Desiccant

To desiccate air in FOSC after sealing

1 bag

Name

FOSC: Fiber Optic Splice Closure

Shape and Sealing

BIM: Inline type mechanical sealing

Type

O

Cable Port

6=6 Ports

Fiber Optic Splice Tray

S12: 12-core

S24: 24-core

Number of Splice Trays

1: 1 tray

2: 2 trays

3: 3 trays

4: 4 trays

Valve

V: Valve included

Grounding Device

G: Grounding device included
