Description:

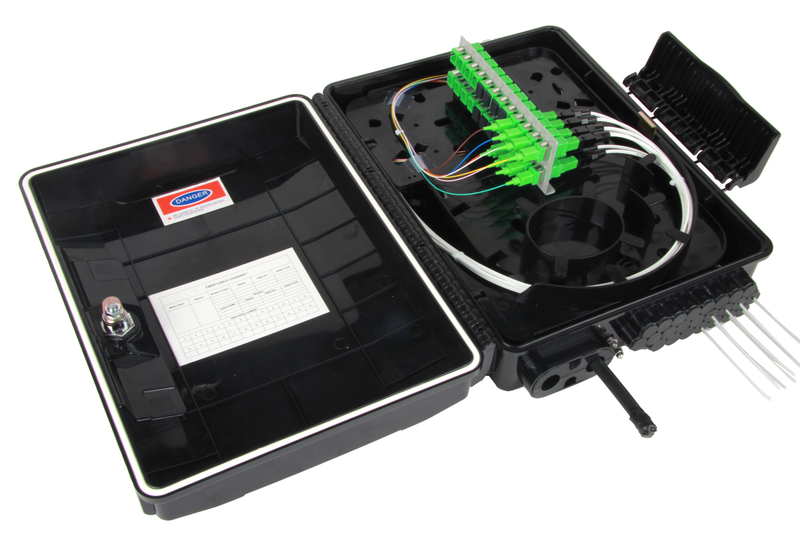

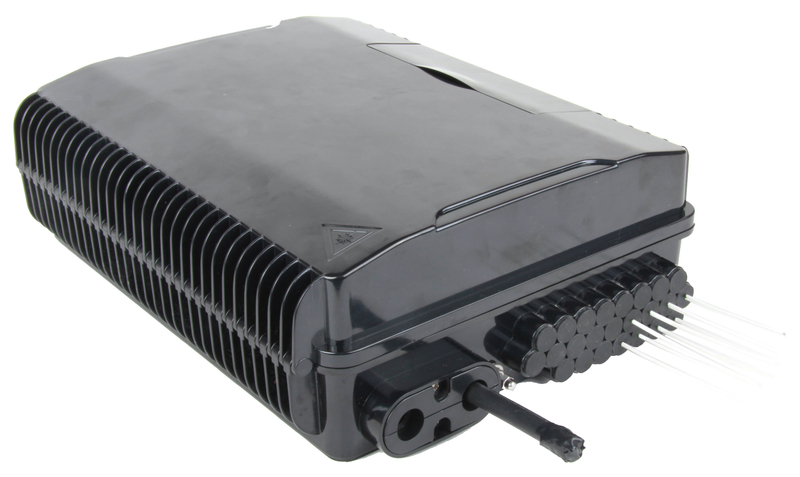

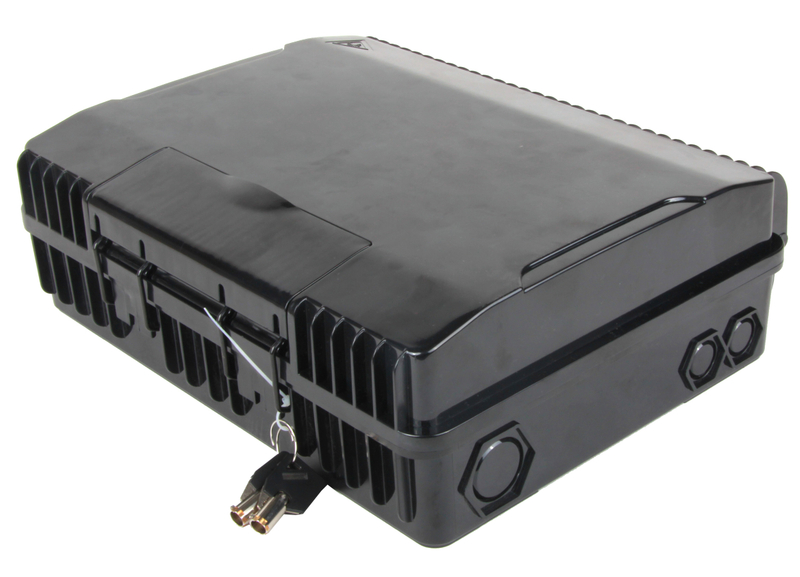

3S FOTB-24-F Fiber Optical Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
1. Water-proof design with IP65 Protection level

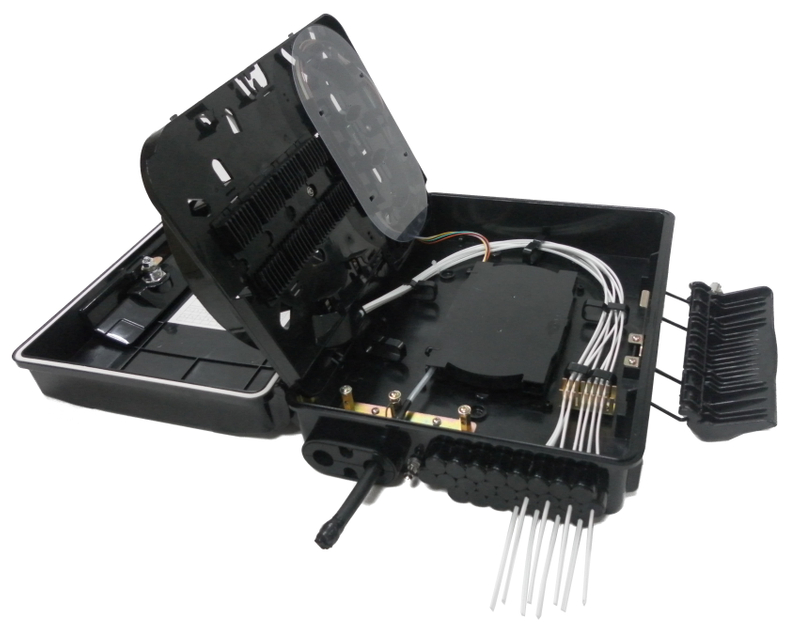

2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. Suitable for the fusion splice or mechanical splice
7. 24 ports cable entrance for FTTH drop cable
8. 1 uncut cable port for feeder cable
9. 1 tray at 12 fibers/tray and sleeve holders for 24 fibers
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 340*250*110 | SC 24 Ports | LC 48 Ports | 1.5kg | 2.3kg | Black |
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-24-F-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
FOTB | 24 | F | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC |
