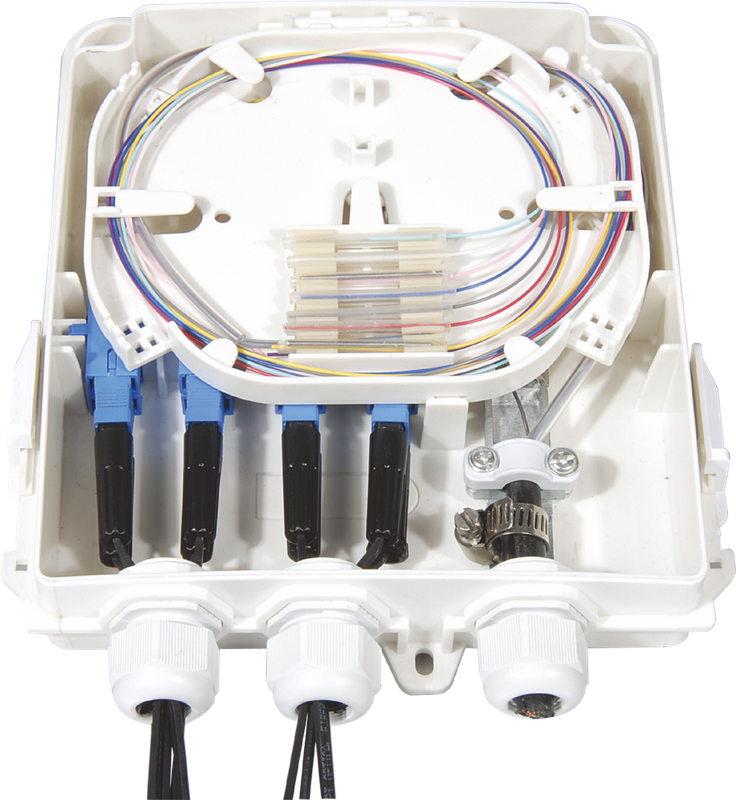

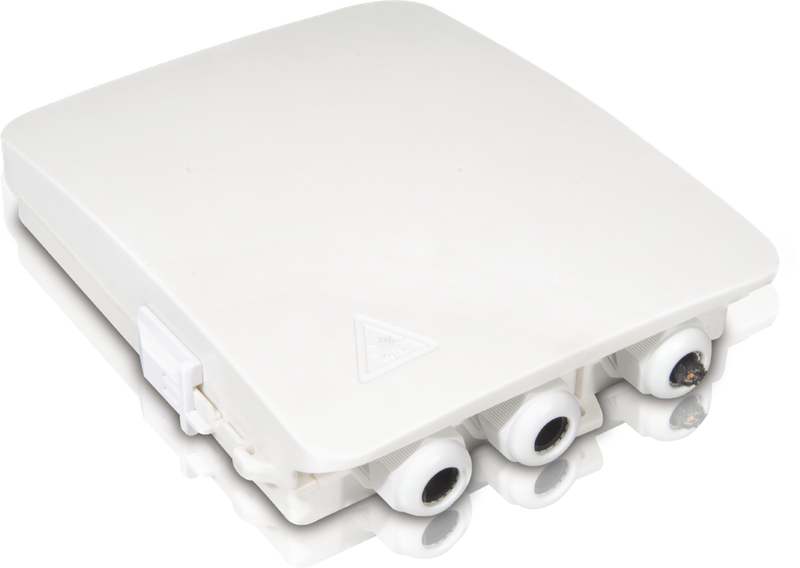

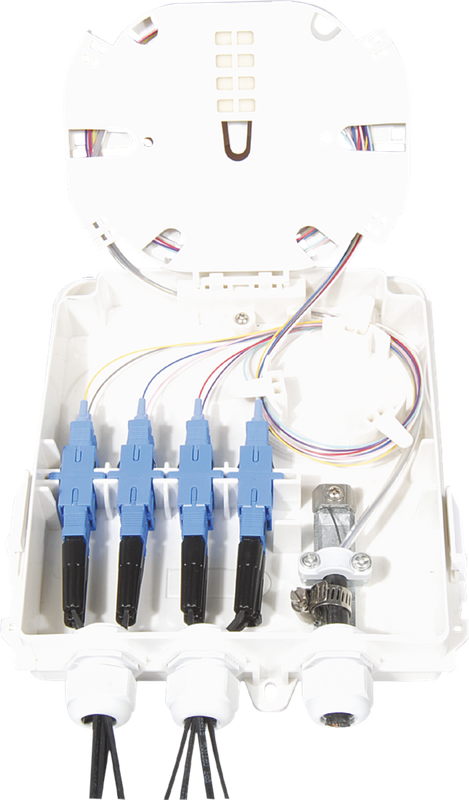

3S FOTB-8-C Fiber Optical Termination Box is a box with 2 ports cable entrance for FTTH drop cable, each port with the sealing plug supporting 4 fibers FTTH drop cable, so total 2 ports can support 8 fibers FTTH drop cable. It provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
2 ports cable entrance for FTTH drop cable
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 199*160*46 | SC 8 Ports | LC 16 Ports | 1.2kg | 1.7kg | White |
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-8-C-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
FOTB | 8 | C | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC |
