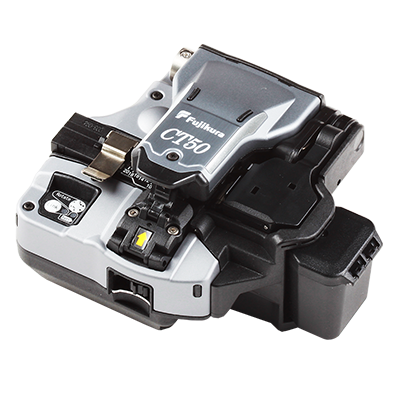

CT50
Fujikura
Features:
specially designed to prevent the impact of falling, it can withstand falling at all angles and directions
The cutting operation steps are simplified without pushing the slider
Increase the space for placing and taking out the optical fiber, which is not easy to damage the fiber
It is very easy to rotate blade, only need to move the dial on the back
Through the wireless connection with fusion splicer, the fusion splicer can judge the cutting angle and control the cleaver to automatically rotate the blade
Applications:
Field installable connectors
Mechanical splices
Specifications:
Fiber | 1~12 cores | |
Cladding diameter | 125um | |
Coating diameter | 0.25 to 0.9mm | 0.16 to 0.9mm 2 to 3mm |
Cutting length | 10mm (from the edge of FH:13mm) | 5 to 20mm (coating dia. = 0.25) 10 to 20mm (coating dia. > 0.25) |
Cutting angle | 0.5° | |
Cleaver life | 60,000 | |
Wireless | Bluetooth 4.1 LE | |
Power supply | AAA dry battery: 2pc | |
Size | 120(W) x 95(D) x 45(H)mm | |
Weight | 320g | |
Working temp | 0 to 95% RH and -10 to 50℃ (non-dew) | |
Storage temp | 0 to 95% RH and -40 to 80℃ (non-dew) |
Features:
specially designed to prevent the impact of falling, it can withstand falling at all angles and directions
The cutting operation steps are simplified without pushing the slider
Increase the space for placing and taking out the optical fiber, which is not easy to damage the fiber
It is very easy to rotate blade, only need to move the dial on the back
Through the wireless connection with fusion splicer, the fusion splicer can judge the cutting angle and control the cleaver to automatically rotate the blade
Applications:
Field installable connectors
Mechanical splices
Specifications:
Fiber | 1~12 cores | |
Cladding diameter | 125um | |
Coating diameter | 0.25 to 0.9mm | 0.16 to 0.9mm 2 to 3mm |
Cutting length | 10mm (from the edge of FH:13mm) | 5 to 20mm (coating dia. = 0.25) 10 to 20mm (coating dia. > 0.25) |
Cutting angle | 0.5° | |
Cleaver life | 60,000 | |
Wireless | Bluetooth 4.1 LE | |
Power supply | AAA dry battery: 2pc | |
Size | 120(W) x 95(D) x 45(H)mm | |
Weight | 320g | |
Working temp | 0 to 95% RH and -10 to 50℃ (non-dew) | |
Storage temp | 0 to 95% RH and -40 to 80℃ (non-dew) |
