Applicable fibers | SM(ITU-T G.652/G.657),MM(ITU-T G.651), DS(ITU-T G.653),NZDS(ITU-T G.655) |
Typical Splicing loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
Return loss | >60dB |
Diameter of Cladding | 80 -150μm |
Diameter of Coating | 160 - 900μm |
Fiber Cleaved Length | 10-16mm (coating diameter< 250μm ), 16mm (coating diameter: 250-1000μm ) |
Splicing program | 40 groups |
Auto-heating | Available |
Operation Mode | Manual, Automatic |
Typical splicing time | 6 seconds |
Tube heating time | 16 seconds |
Magnification | 250X(X or Y view), 125X(X and Y view) |
Viewing Method | 2 x High resolution cameras |
Display | 5.0 inch color LCD monitor |
Storage of Splice Result | 4000 results |
Loss Evaluation | Available |
Tension test | 1.8-2.2N |
Interactive Interface | GUI menu interface, easier operation |
Battery capacity | 5200mAh Li-battery |
Power supply | Power charging adaptor Input: AC100-240V(50/60HZ), output: DC11-13.5V |

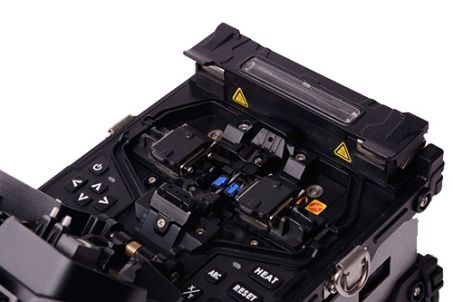

Electrode life | More than 3000 ARC, replaced conveniently |
Data Interface | USB 2.0 |
Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temp: -10℃～+50℃, Wind speed: max 15m/s |
Dimension | 156mm(L)x148mm(W)x156mm(H) |
Weight | 2.45kg (Including battery) |
Package | Packed in carton with protection foam |
Standard Accessories | Splicer, Power Adapter, User Manual, Drop Cable Stripper, Cooling Tray, Stripper, Spare Electrodes, Fiber Cleaver, Strap, Carrying Case |
