Description:

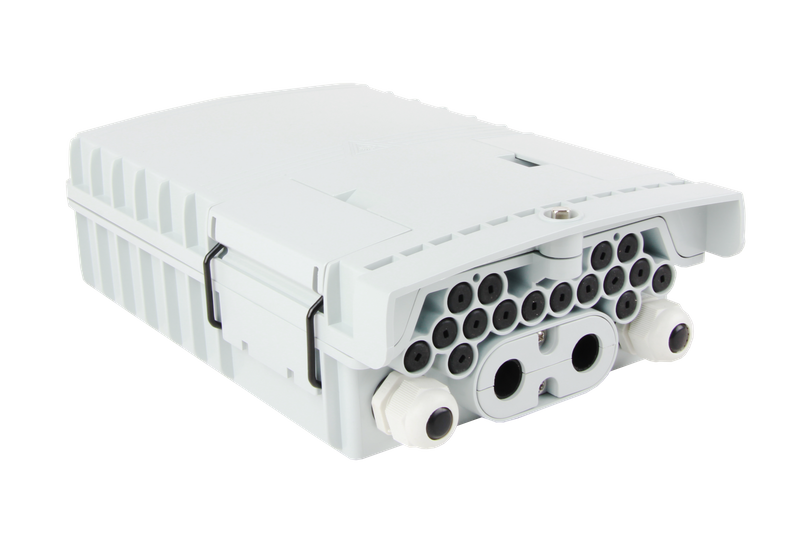

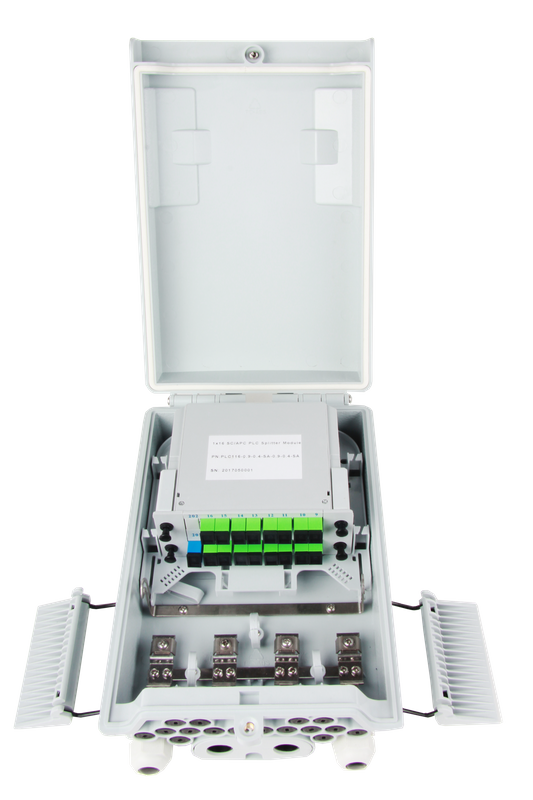

3S FOSB-16-G Fiber Optical Splitter Box provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
Features:
1. Water-proof design with IP65 Protection level
2. Integrated with cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm

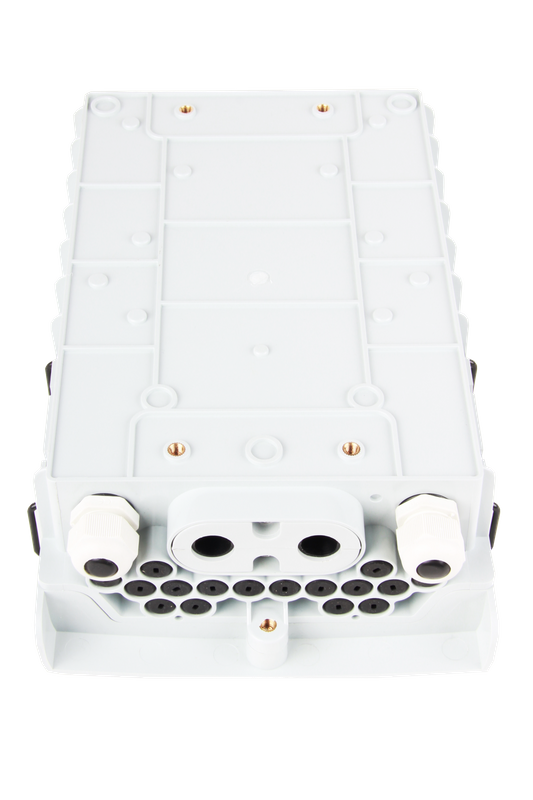

6. 1 uncut cable port and 2 round cable ports for feeder cables
7. 16 ports cable entrance for 2*3mm FTTH drop cable
8. 1*16 or 1*8 Insertion Module Splitter can be installed
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 274*175*82 | PLC 1pc of 1×16 or 2pcs of 1*8 | 1.4kg | 1.8kg | Gray |
How to order a Fiber Optical Splitter Box?
Model Rules: FOSB-16-G-XX-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail | XX: Splitter |
FOSB | 16 | G | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | P1: 1×2 P2: 1×4 P3: 1×8 P4: 1×16 |
