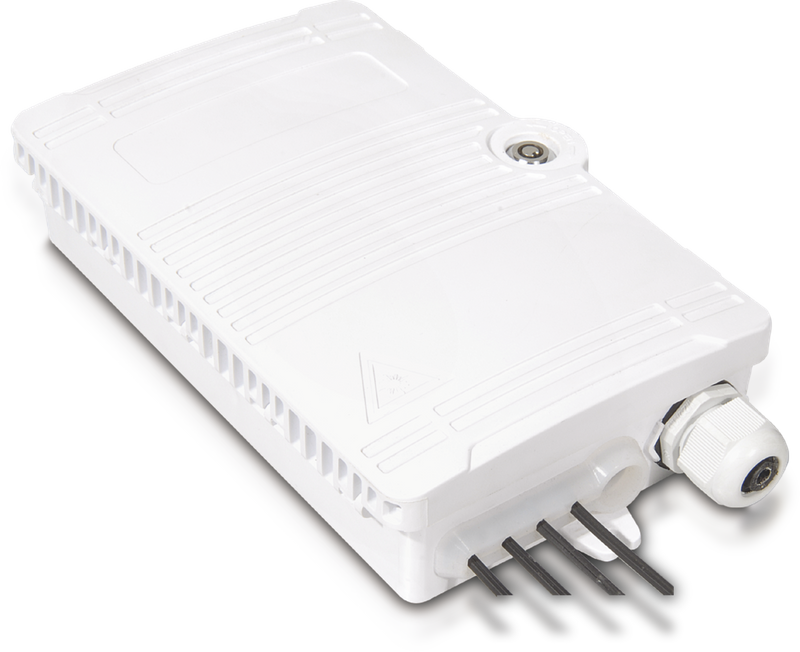

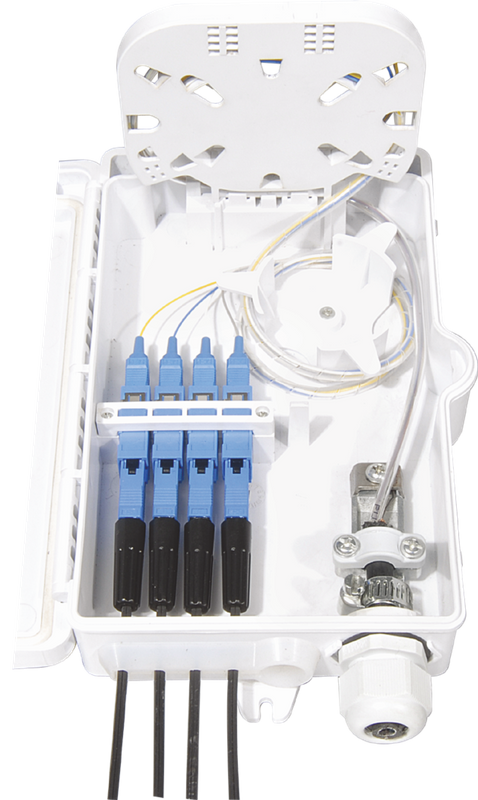

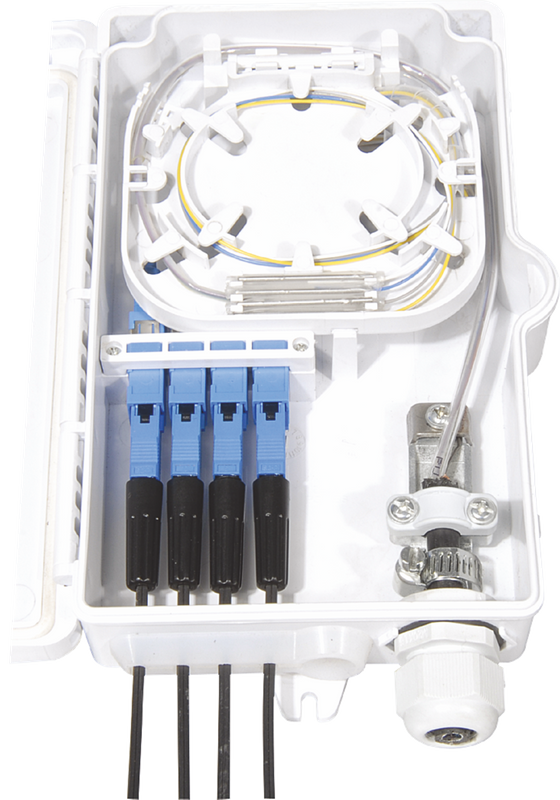

3S FOTB-4-A Fiber Optical Termination Box is a fiber optical box with 4 ports for FTTH drop cable. It provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting.
Features:
1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. Suitable for the fusion splice or mechanical splice
7. 4 ports cable entrance for FTTH drop cable
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 191*120*44 | SC 4 Ports | LC 8 Ports | 0.8kg | 1.1kg | White |
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-4-A-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
FOTB | 4 | A | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC |
