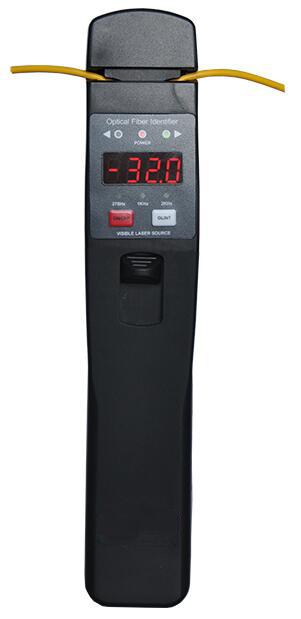

OFI-A Optical Fiber Identifier Product Details View  | | | |

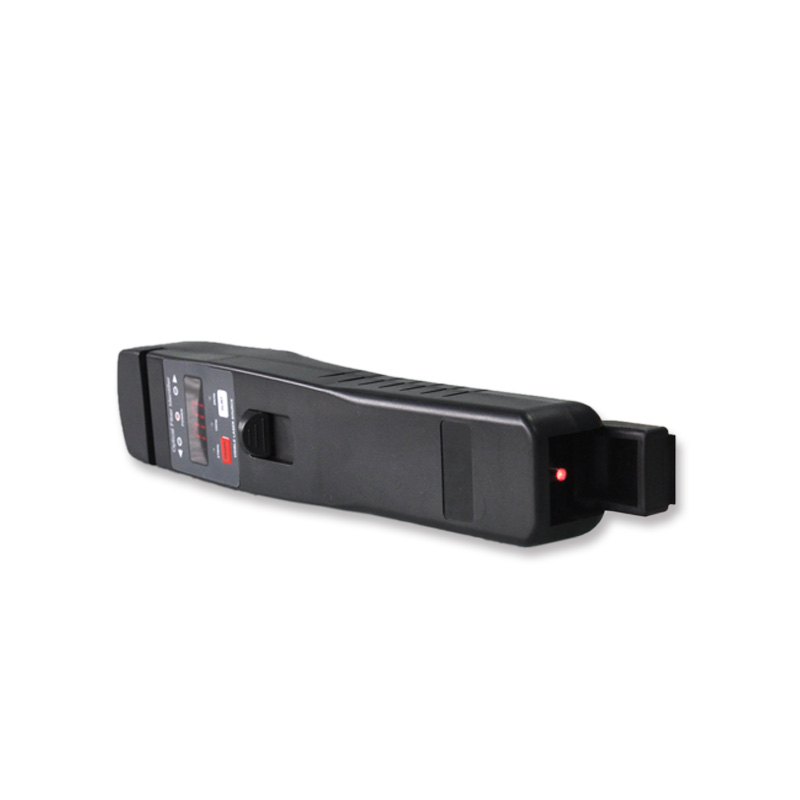

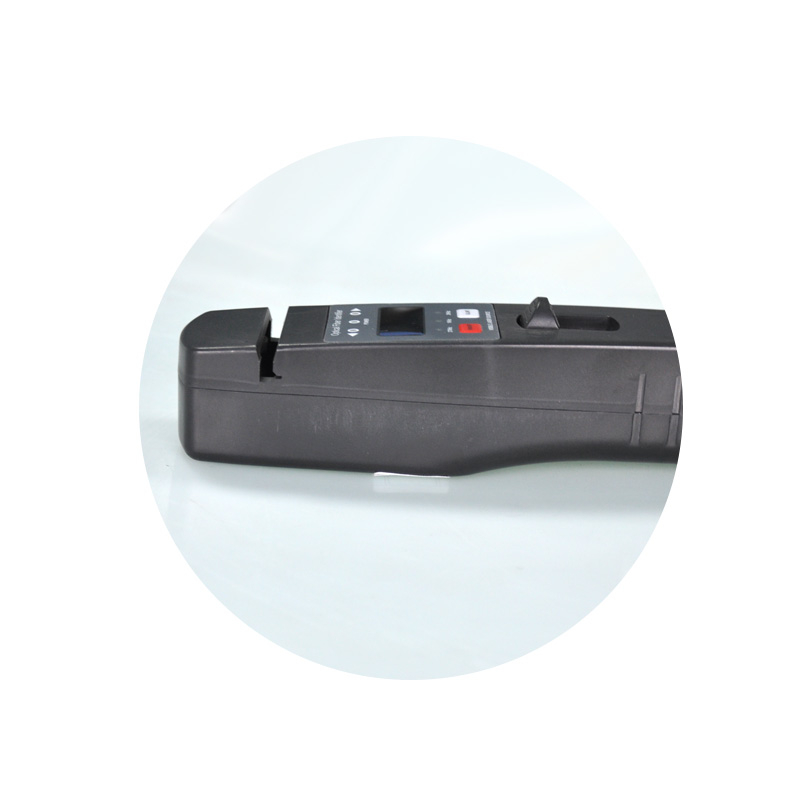

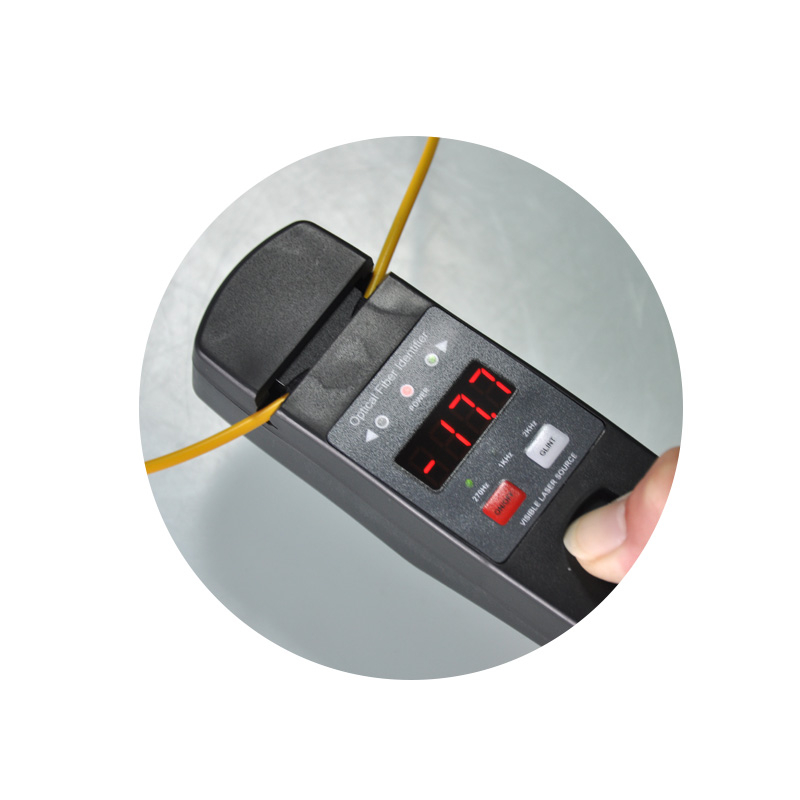

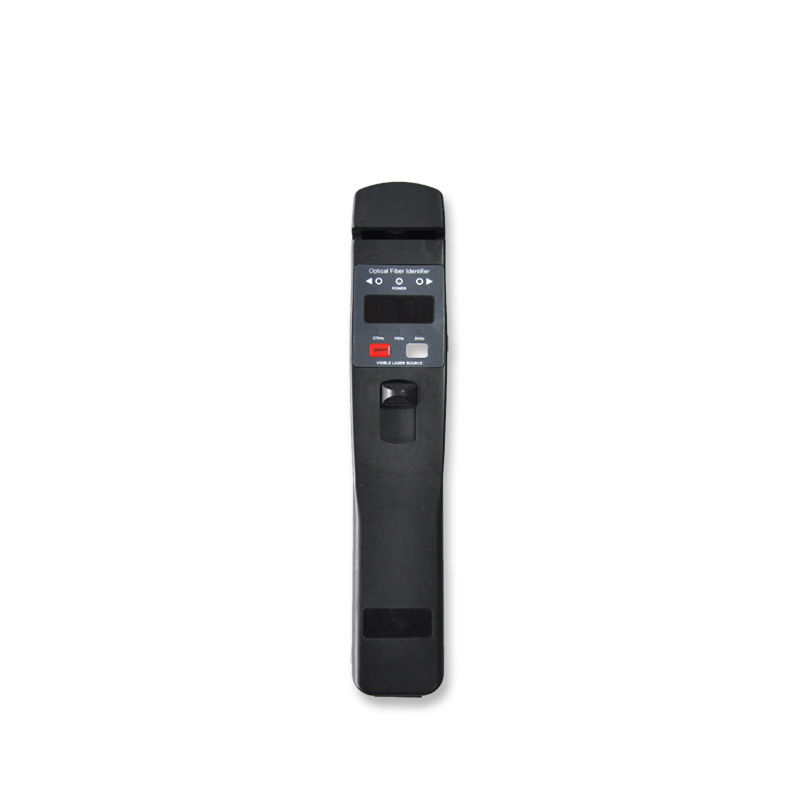

| OFI-A Front View | OFI-A VFL Port View | OFI-A Adapter Head View | OFI-A Testing with Power Value |
Description:
OFI-A Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification work and can detect both SM and MM fiber in any location. Meanwhile it also has Visual Fault Locator module with fault location function. It is the ideal instrument for online testing.
Features:
1. Indicate the signal directions and power in fiber
2. Indicate the signal presence or absence(Live or dark fiber)
3. Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
4. Display the relative core power
5. Easy-to-replace adapters
6. Low power indication
7. Build in VFL function
Specification:
Range Identified Wavelength Range | 750nm~1700nm |
Insertion Loss | 1.0dB |
Fiber Type | <3mm Fiber |
Identified Signal Type | 270Hz/1KHz/2KHz |
Display Type | LED |
Detector Type | 1mm InGaAs |
Minimum Detection Power | -35dBm (1550nm); -30dBm (1310nm) |
Center Wavelength | 650nm |
Output Power | 10mW |
Alkaline Battery | 2*AA |
Battery Life | >60H |
Weight | 200g |
Dimension | 230*43*48mm |
Other Functions | Power Measurement; Auto-off function |
Operating Temperature | 0~+50℃ |
Storage Temperature | -20~+60℃ |
