Description:

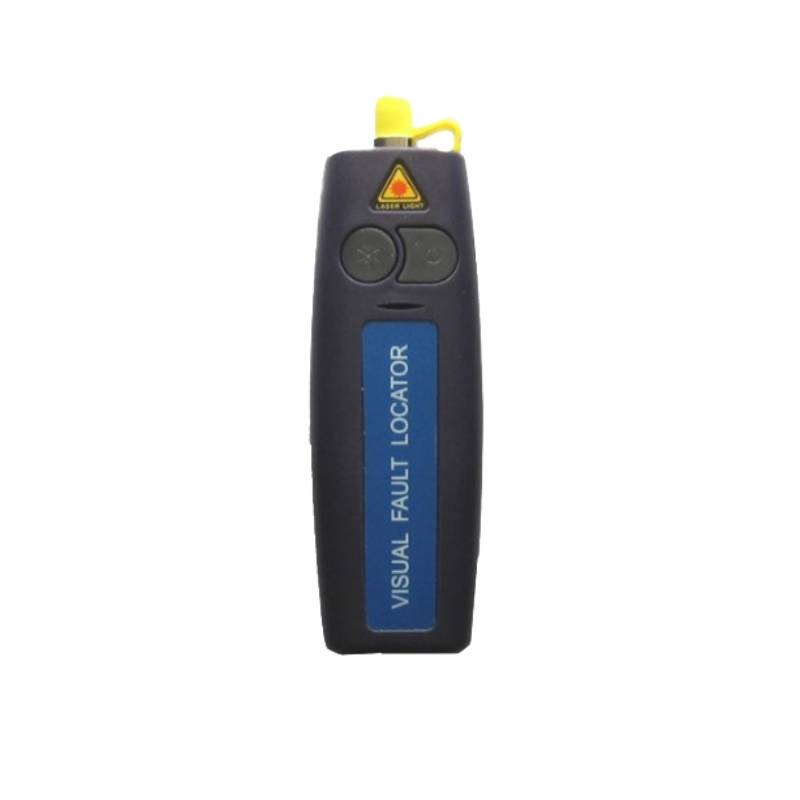

The Visual Fault Locator is a fiber optic testing tool for finding the broken point in optical fiber/cable, patch cord, and etc. It is a perfect complementary tool for OTDR because of its capability of finding breaks in the dead zone of OTDR.
Features:
Mini size design, portable and durable
Universal connector, ceramic tube replaceable
CW/2Hz modulated output
Specifications:
Part Number | VFL-1A | VFL-10A | VFL-15A | VFL-30A |
Laser Launcher Level | CLASS IIIA | CLASS IIIB | CLASS IIIB | CLASS IIIB |
Output Power (1) | 1mW | 10mW | 15mW | 30mW |
Detecting Range(2) | About 5km | About 12km | About 14km | About 15km |
Laser Launcher Type | LD |
Optical Connector | Universal 2.5mm adapter |
Output Wavelength | 650nm±10nm |
Modulation Frequency | CW / 2Hz |
Power Supply | 2*AAA Batteries |
Working Temperature | -10℃~+50℃; <90%RH |
Storage Temperature | -20℃~+70℃; <90%RH |
Dimension & Weight | 113×34×20 mm(L×W×H) ; 70g |
Standard Accessories: |
Visual fault locator, carrying bag, manual |
Optional Items |
FC Adapter, SC Adapter, FC(Male) to LC(Female) Adapter for LC Connector |
Note:
(1) The output power is figured out by multi-mode optical fiber at 23℃±3℃
(2) Detecting range will be different with different fibers.
