Description:

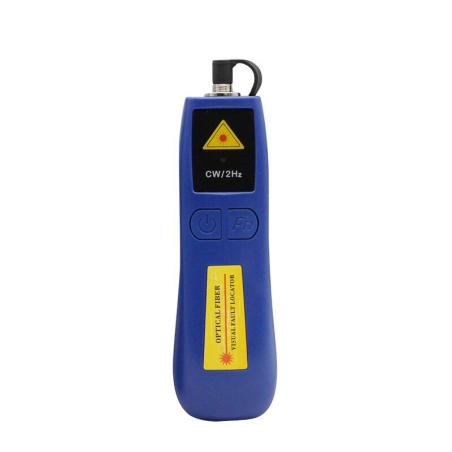

The Visual Fault Locator is also called fiber optic breakpoints checker. It is usually used to find the broken point in optical fiber/cable, patch cord, and etc. It is a perfect complementary tool for OTDR because of its capability of finding breaks in the dead zone of OTDR.
Features:
Mini size design, portable and durable
Universal connector, ceramic tube replaceable
CW/2Hz modulated output
Specifications:
Part Number | VFL-5B | VFL-10B | VFL-20B | VFL-30B | VFL-50B |
Laser Launcher Level | CLASS IIIA | CLASS IIIB | CLASS IIIB | CLASS IIIB | CLASS IIIB |
Output Power (1) | 5mW | 10mW | 20mW | 30mW | 50mW |
Detecting Range(2) | 5km | 12km | 15km | 16km | 18km |
Laser Launcher Type | FP-LD |
Optical Connector | Universal 2.5mm adapter |
Output Wavelength | 650nm±10nm |
Modulation Frequency | CW / 2Hz |
Power Supply | 2*AAA Batteries |
Battery Life (CW) | 13Hours | 6Hours | 5Hours | 3Hours | 2Hours |
Battery Life (2Hz) | 19Hours | 12Hours | 7Hours | 5Hours | 4Hours |
Working Temperature | -10℃~+50℃; <90%RH |
Storage Temperature | -20℃~+70℃; <90%RH |
Dimension & Weight | Ø13 x 181mm;106g(without battery) |
Standard Accessories: |
VFL, carrying bag, manual |
Optional Items |
FC Adapter, SC Adapter, FC(Male) to LC(Female) Adapter for LC Connector |
Note:
(1) The output power is figured out by multi-mode optical fiber at 23℃±3℃
(2) Detecting range will be different with different fibers.
