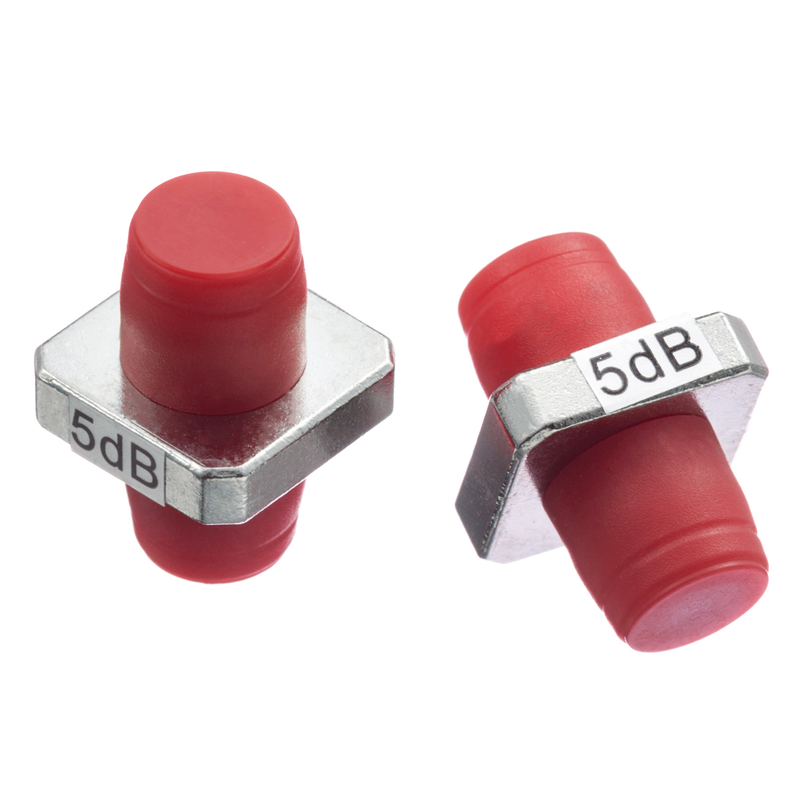

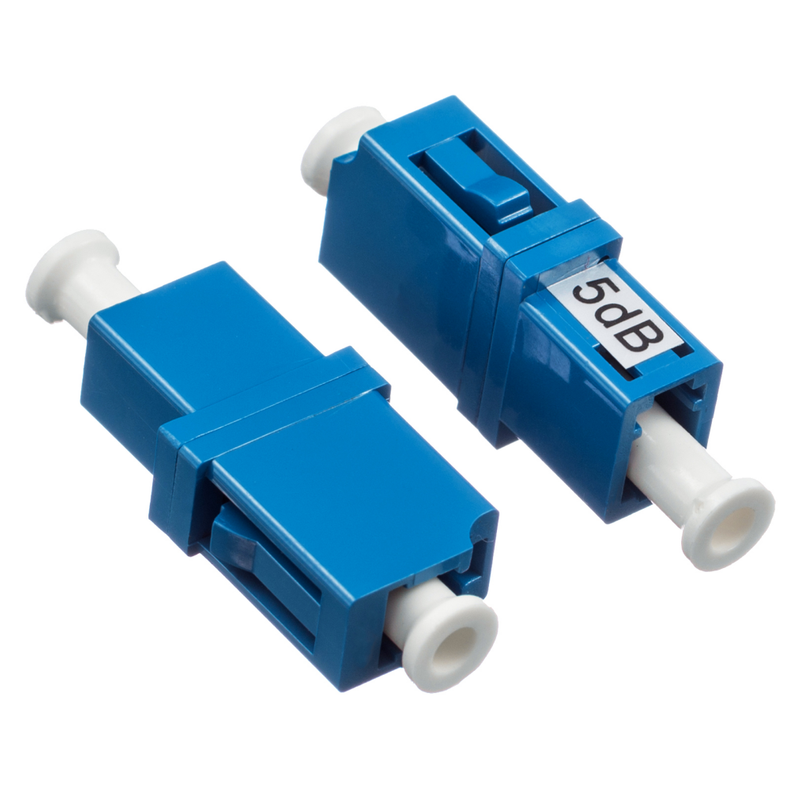

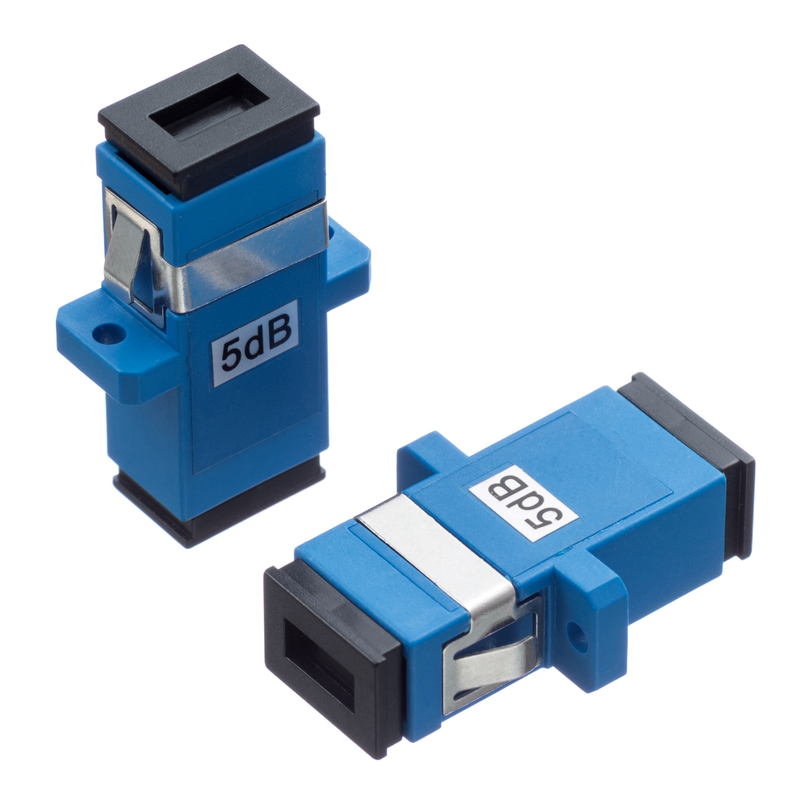

Bulkhead Mechanical Fixed Attenuation Value Fiber Optic Attenuator
 | | |
Description:
A mechanical optical attenuator is a passive optical attenuator. The shape of the mechanical attenuator is just like the fiber adaptor. It can be applied in traditional optical network, optical testing project, FTTx construction and etc which the optical power may be over the limit of the equipment.
The bulkhead mechanical attenuator allows the interconnection of two patchcords. Both fixed value and variable value type attenuator are available. User can select the right one according to the construction environment. It can be used in CATV, LAN, WAN and telecommunication applications.
3S Telecom provides various mechanical attenuator both female to male and bulkhead types are available.
Features:
Specifications:
Fiber Optic Attenuator | Parameter |
Single mode | Multi-mode |
Work Wavelength | 1310nm, 1550nm | 850nm, 1300nm |
Attenuation Value | 0-20dB (1 step)
|
Connector Type | FC SC ST LC MU
|
Attenuation Tolence | 0-9dB: ±0.5dB; 10-20dB: ±10% |
Return Loss | UPC ≥ 50, UPC ≥ 60 | -- |
Operating Temperature | -20ºC to +70ºC |
Storage Temperature | -40ºC to +85ºC |
