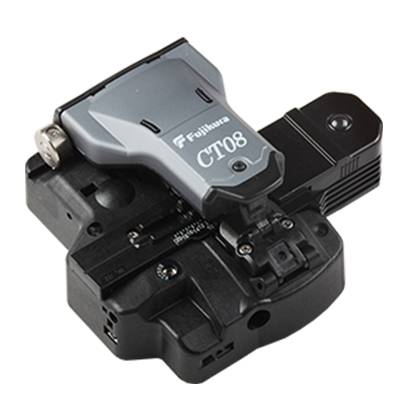

Fujikura CT08 High Precision Fiber Optic Cleaver
|
Descriptions:
The CT08 fiber optic cleaver is an extremely rugged, durable, and easy to use single fiber cleaver. Ideal for FTTH applications, the CT08 provides unmatched levels of impact resistance and also eliminates the requirement for tools during blade rotation. A thumbwheel on the bottom of the cleaver is utilized for blade rotation, and the blade position indicator has been relocated to enable quick and easy viewing. The top clamp opens to a position past vertical allowing for easy viewing, cleaning, and adjustment of the cleave length. The blade is retracted automatically when opening the top clamp and is activated upon closing, making this a true one-step cleaver. The cleaver blade and fiber clamping mechanism is extremely easy to replace in the field. A manual scrap collector is included.
Features:
• Dedicated for single fiber cleaving
• Ruggedized design withstands extreme shock levels
• Tool free blade rotation
• Simple one-step operation
• Blade and clamp/anvil assembly are field serviceable
Applications:
Specifications:
Applicable Fiber
| Fiber Type | Single Mode
Multi Mode |
Fiber Count | Singe Fiber |
Cladding Diameter | Approx. 125v |
Applicable Coating | Fiber Plate | AD-50: Max. 3 min Coating Diameter |
Fiber Holder | Coating Shape: Refer to Splicer Holder Options |
Clave Length | Fiber Plate | AD-50 [CD = coating diameter]
CD= 250 µm or less : 5 to 20 mm
250 µm < CD < 1000 µm : 10 to 20 mm
1000 µm < CD < 3 mm : 14 to 20 mm |
Fiber Holder | Approx. 10mm |
Cleave Angle | Single Fiber | Avg. 0.3 to 0.9 Degrees |
Blade Life | Approx. 48,000 Fiber Cleaves |
Physical description | Dimensions W | Approx. 120 mm when closing the lever |
Dimensions D | Approx. 95 mm when closing the lever |
Dimensions H | Approx. 58 mm when closing the lever |
Weight | Approx. 185 g |
Environmental Condition | Temperature | Operate : -10 to 50oC
Storage : -40 to 80oC |
Humidity | Operate : 0 to 95% non-condensing
Storage : 0 to 95% non-condensing |
Screw Hole For Tripod | 1/4-20UNC |
Other features | Blade rotation | Manual rotation dia |
Replaceable part | Blade |
Clamp arm |
Standard Package | AD-50 Adapter Plate, CC-34 Carrying Case, Hex Wrench, Scrap Collector and Instruction Manual |
