Description:

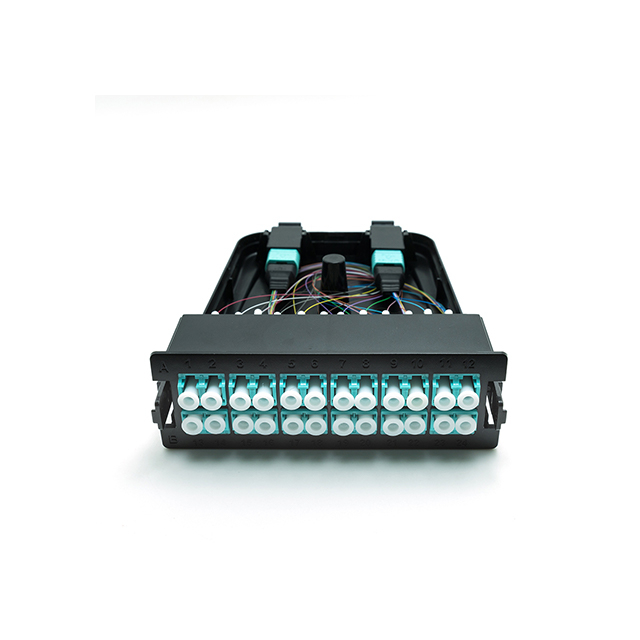

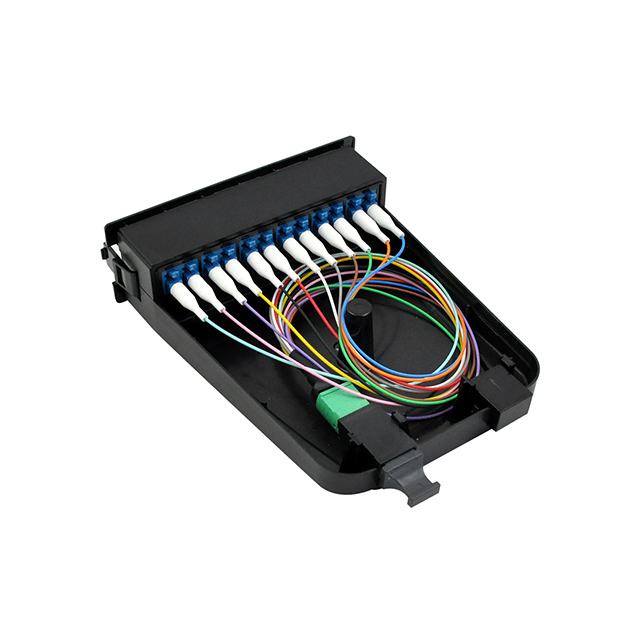

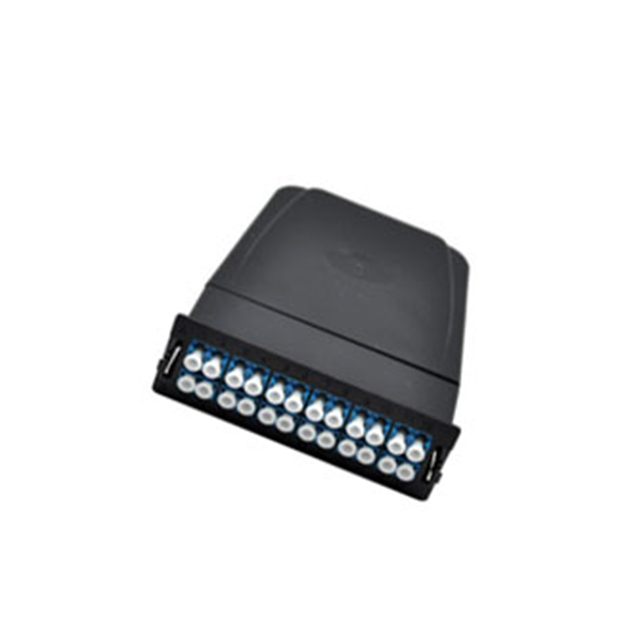

MPO to LC or SC Cassette Modules consists of empty cassette module, MPO/MTP adapter, LC/SC adapter and MPO-LC/SC harness patchcord. They provide secure transmission between MPO/MTP and LC or SC discrete connectors. They provide a quick, reliably high performance and efficient way to deploy up to 24 LC or 12 SC fiber ports in a single module. The Modules can be mounted in 1U or 4U 19"rack chassis.
Features:
1. High density design, plug-and-play installation
2. Available in 12/24 fibers
3. Modular system management, easy reconfiguration
4. Cold rolled steel material
Applications:
1. Data Centre Infrastructure
2. High Density Fiber Management
3. Telecommunications networks and Broadband
Standard:
1. IEC 61754, TIA/EIA 604-5
Ordering Information:
Name | CM: Cassette Module |
A End Connector | MP: MPO male TP: MTP male |
B End Connector and Adapter | LC: LC/UPC duplex AL: LC/APC duplex LCQ: LC/UPC quadplex ALQ: LC/APC quadplex SC: SC/UPC duplex AS: SC/APC duplex |
Loss Grade | S: standard loss L: loss loss |
Fiber Type | A: G.652D B: G.657A1 C: G.657A2 D: OM1 E: OM2 F: OM3 G: OM4 |
Fiber Count | 12: 12 fibers 24: 24 fibers |
Polarity | A: 1-1, 2-2, 3-3,... B: 1-12, 2-11, 3-10,... C: 1-2, 2-1, 3-4, 4-3,... |
