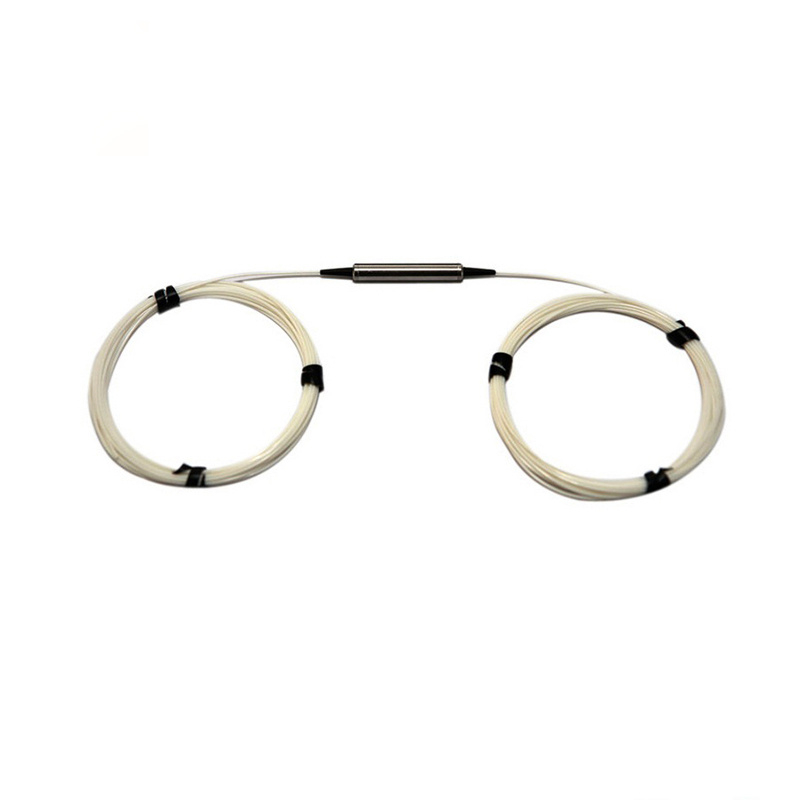

In-line Fiber Optic Polarizer

You are here: Home » Products » Polarization Maintaining Series Products » In-line Polarizer » In-line Fiber Optic Polarizer

PRODUCT CATEGORY

Contact Us

Random Products

FOTB-PC-8-A Pre-connectorized Fiber Optical Termination Box -8 Cores

2200Max OTDR Fully Touch Screen Measurement Machine

FOTB-PC-8-E Pre-connectorized Fiber Optical Termination Box-8 Cores

FOTB-8-B Fiber Optical Termination Box-8 Cores

FOTB-8-C Fiber Optical Termination Box-8 Cores

FOTB-12-A Fiber Optical Termination Box-12 Cores

FOTB-12-D Fiber Optical Termination Box-12 Cores

FOTB-16-H Inline Fiber Optical Termination Box-16 Cores

High Precision Max Measurement OTDR

IP68 Inline Horizontal Fiber Optic Splice Closure FOSC

Single Core Alignment China Fiber Optic Fusion Splicer

BPON EPON GPON PON Power Meter with OPM VFL

OFI-D Live Fiber Identifier Built OPM VFL

Fiberglass Duct Rodder For Cable Laying

Tray Type PLC Splitter for ODF Application

Fiber Optic FBT Coupler Singlemode Triple Window 1310/1490/1550nm Splitter

Fiber Optic FBT Coupler Multimode 850/1300nm Splitter

Electric Fiber Optic Cleaner for SC FC ST LC MU

Electric Fiber Optic Cleaning Pen for Fiber End Face SFP Transceivers

XGPM-B 10G EPON GPON XGPON Power Meter

PRODUCT DETAIL

Model:

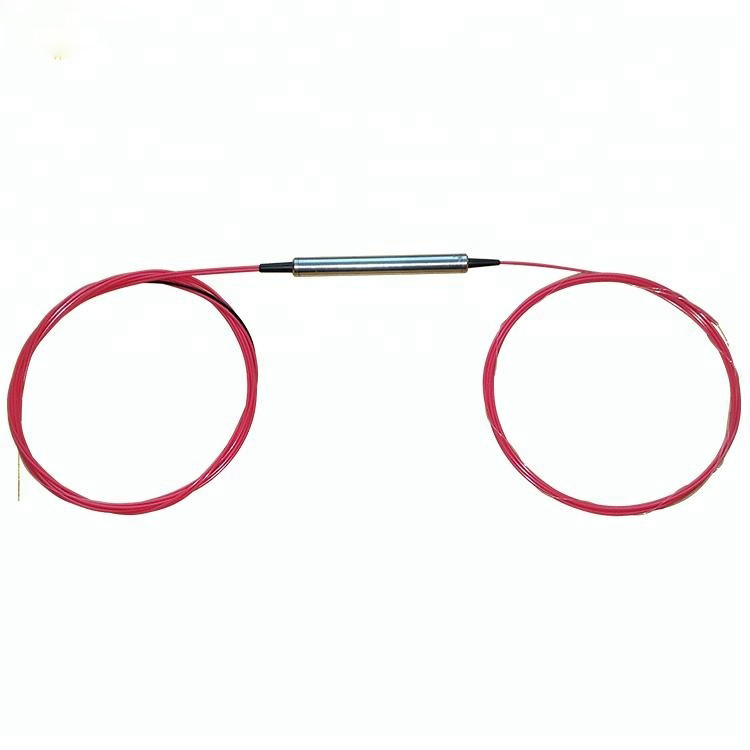

In-line Polarizer

Product Description

Description

The In-line fiber optic polarizer can be used to convert un-polarized light into polarized light with a high extinction ratio. The polarizer can pass light with one specific polarization (slow or fast axis) while blocking the other polarization (fast or slow axis). The inline polarizer offers low loss, high extinction ratio and high return loss.

Features

High isolator

Hight return loss

Low insertion loss

Compact size

Applications

PM test systems

Fiber optic lab

Specifications

Parameters	Unit	P Grade
Center Wavelength (λc)	nm	1310, 1480, 1550
Operation Wavelength Range	nm	λc +/-20
Typical Extinction Ratio (at 23℃)	dB	30
Min. Extinction Ration (at 23℃)	dB	≥25
Typical Insertion Loss (at 23℃)	dB	≤0.45
Max. Insertion Loss (at 23℃)	dB	≤0.55
Return Loss	dB	≥55
Power Handling	mW	500
Fiber Type	--	Input port fiber type: SMF-28e or PM Panda fiber Output port fiber type: SMF-28e or PM Panda fiber
Working Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85

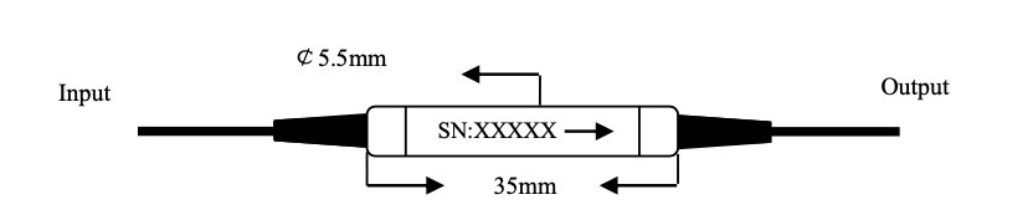

Package Dimensions	mm	Ø5.5 x L35
Notes: 1. The PM fiber and connector key are aligned to the slow axis.
2. IL is 0.3dB higher, RL is 5dB and ER is 2dB lower for each connector added.
