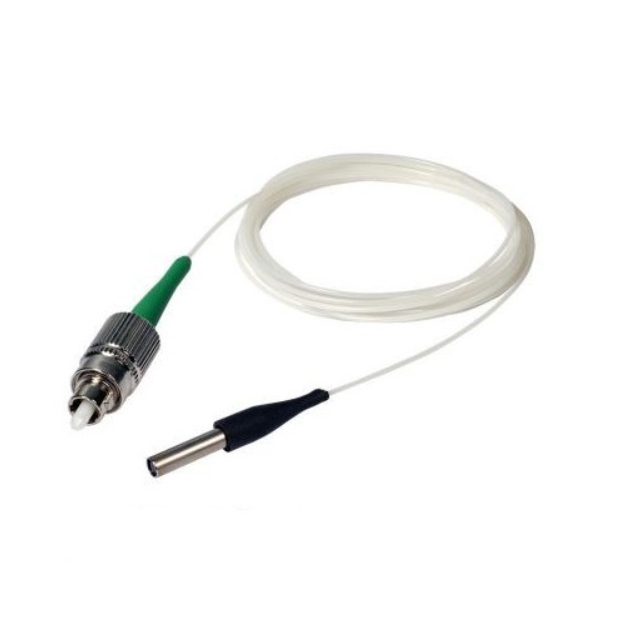

Description:
Polarization Maintaining Faraday Mirror is a fiber optic passive device that provides a 45-or-90 -degree rotation regarding to the polarization state of the input light. The polarization maintaining faraday mirror (PMFM) offers excellent performance including the lowest possible insertion loss and environmental stability.
Features:
Low insertion loss
High return loss
Low polarization sensitivity
Compact size
Applications:
CATV fiber optic links
Fiber optical system testing
Fiber optical LAN systems

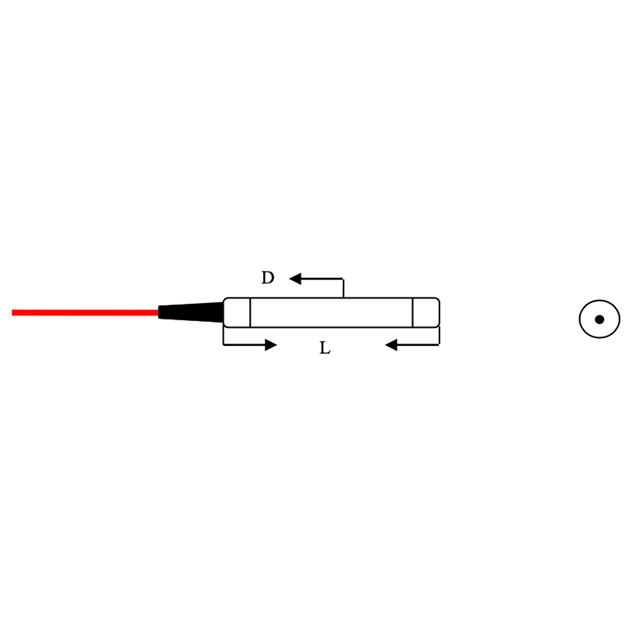

Dimensions:
Specifications:
Parameters | Unit | Single Stage | Dual Stage |
Center Wavelength | nm | 1310 or 1550 |
Bandwidth | nm | +/-15 |
Insertion Loss (at 23ºC) | Typical | dB | ≤0.4 | ≤0.7 |
Max. | dB | ≤0.6 | ≤0.8 |
Min. Extinction Ration | dB | >20 |
Faraday Rotation Angle (Single Pass) | º | 45º | 90º |
Rotation Angle Tolerance over Wavelength and Temperature | -- | +/-3 |
Fiber Type | -- | PM Panda Fiber |
Working Temperature | ℃ | -20 to +70 |
Storage Temperature | ℃ | -40 to +85 |
Package Dimensions | mm | Ø5.5 X L35 or Specify |
Ordering Information:
PMFRM-X | X | XXXX | X | XX | XX |
FRM Type | Port | Wavelength | Pigtail Type | Fiber Length | Fiber Connector |
S=Single stage D=Dual stage | 1=1x0 2=1x1 X=specify | 1550=1550nm 1310=1310nm XXXX=specify | 1=PM Panda 250um bare fiber 2=PM Panda 400um bare fiber 3=900um loose tube X=specify | 05=0.5m 10=1m 15=1.5m XX=specify | NC=non connector AF=FC/APC FC=FC/UPC AS=SC/APC SC=SC/UPC AL=LC/APC LC=LC/UPC XX=specify |
