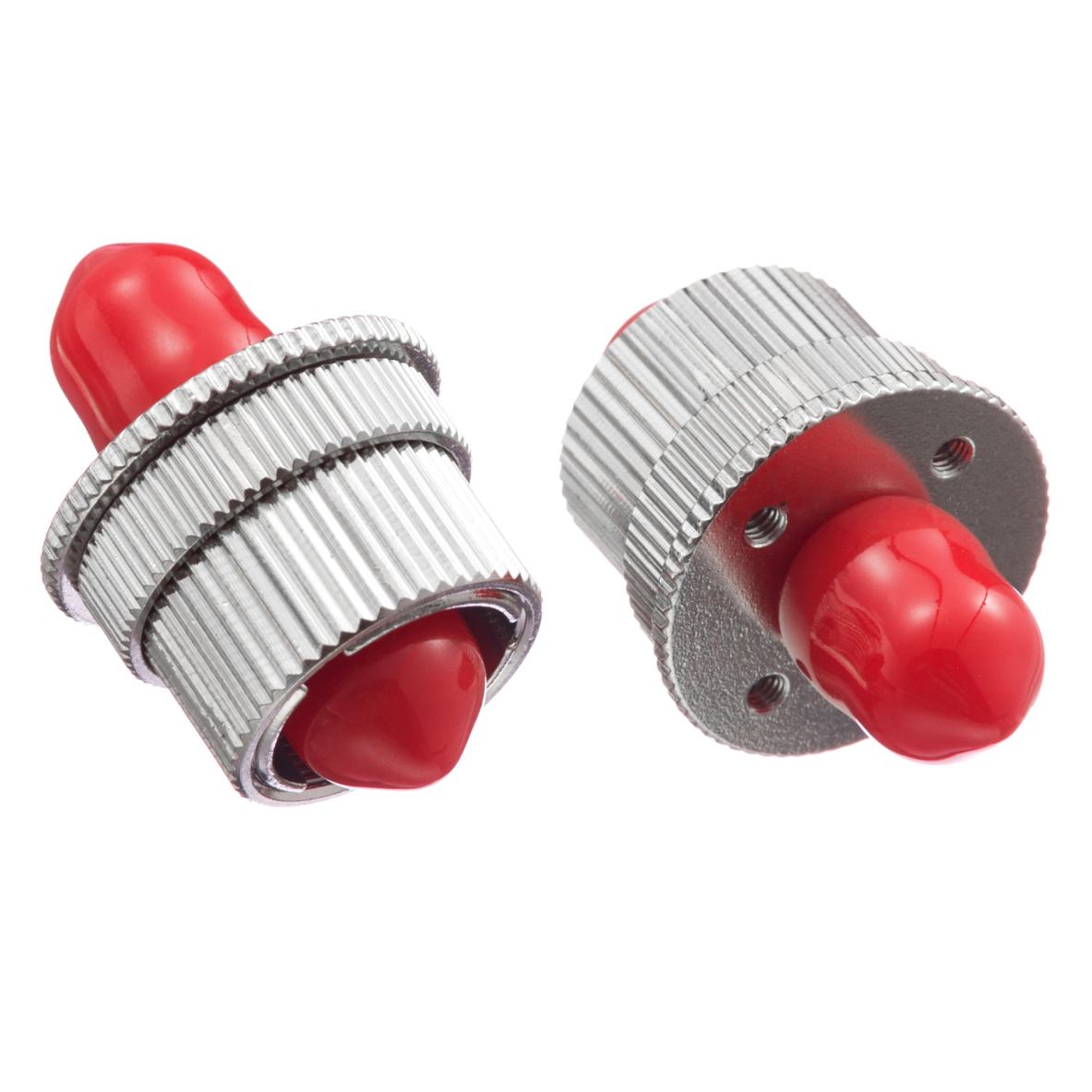

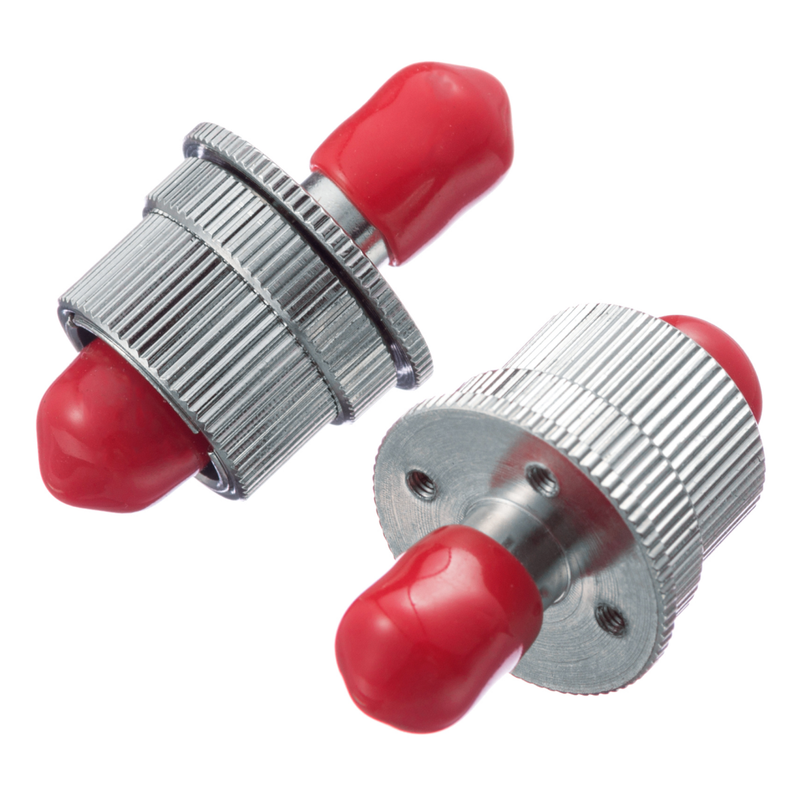

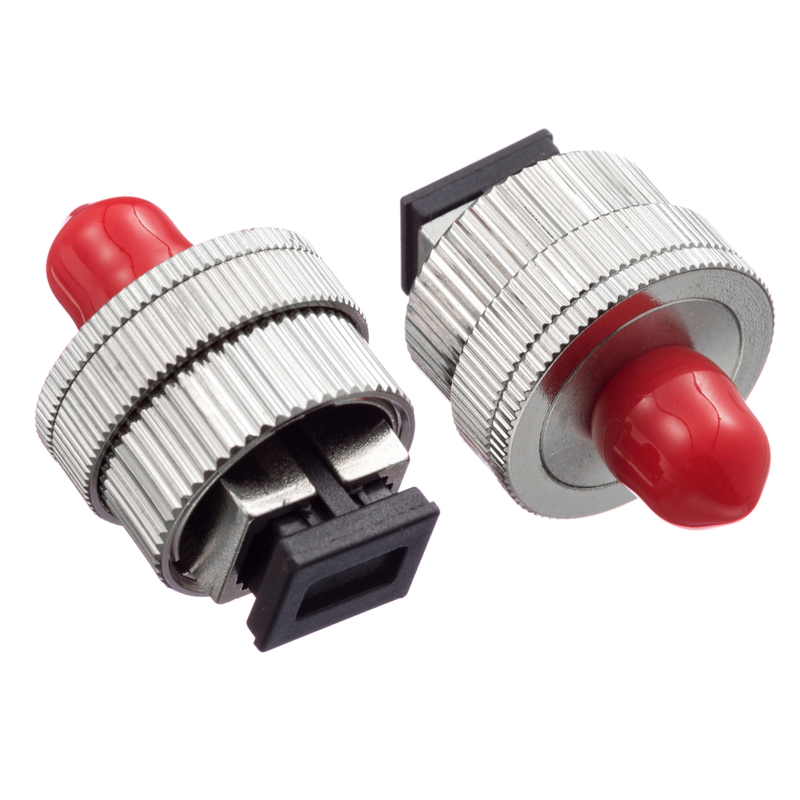

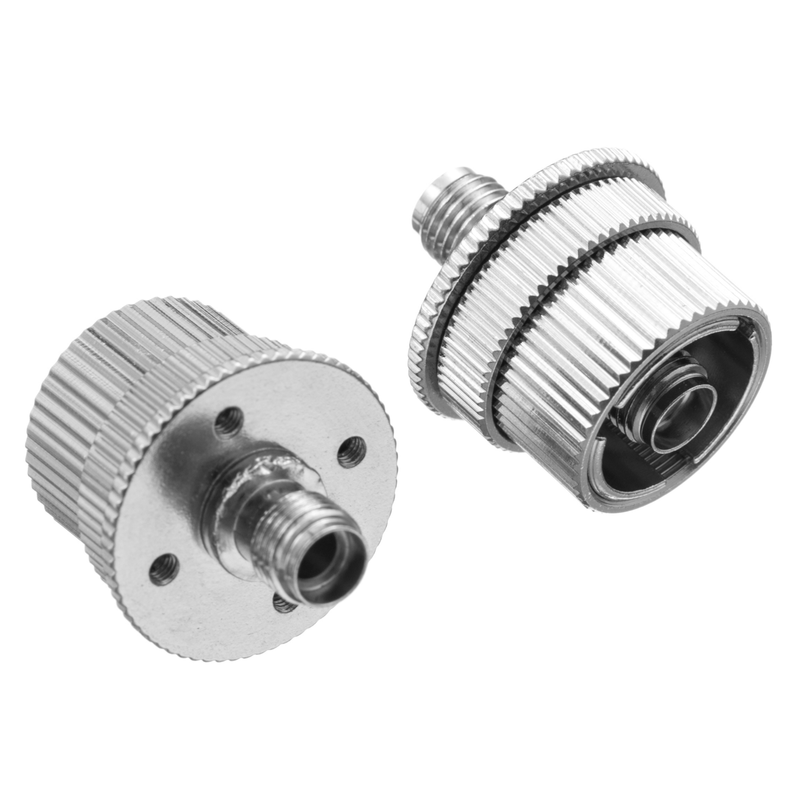

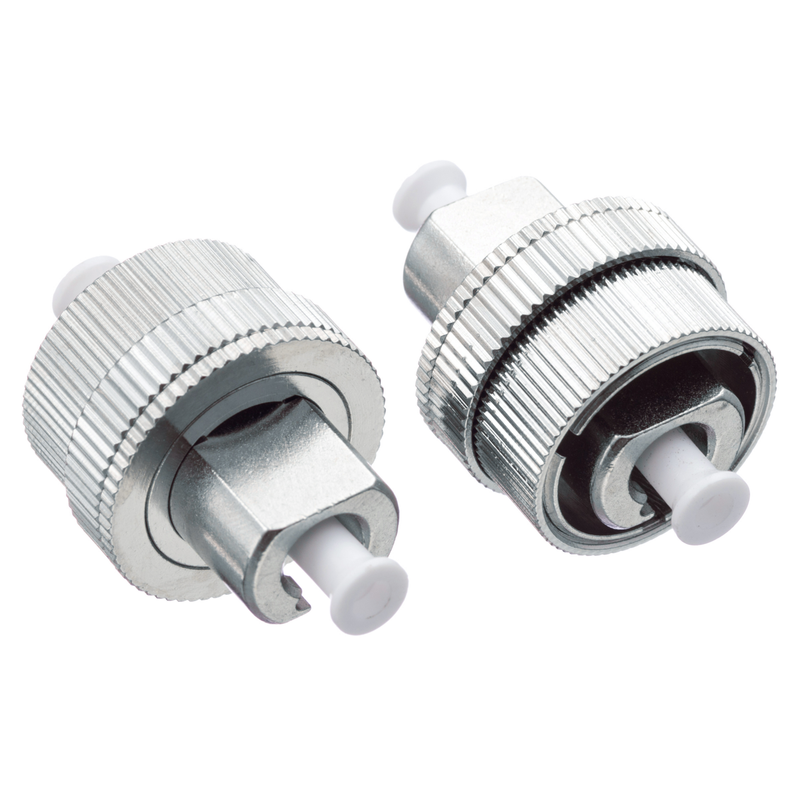

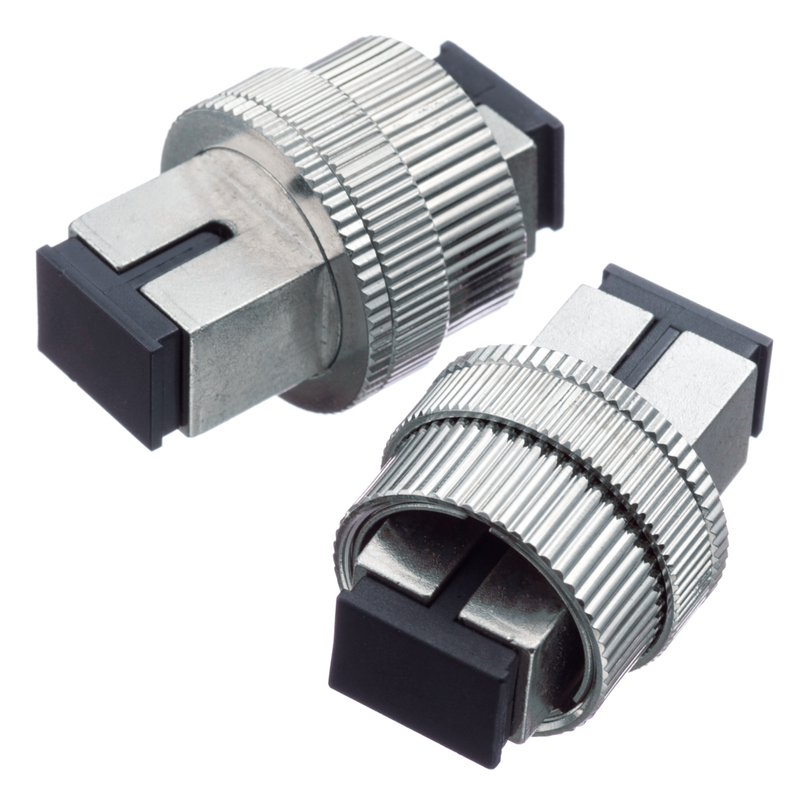

Variable Adapter Type Fiber Optic Attenuator -Attenuation Range 30dB
 | | |
| | |
Description:
The optical transmission is restricted by total reflection law in optical fiber. Light can not be scattered out to maintain a relatively stable intensity. If it is out of the optical fiber, the light will be scattered between the optical fiber and the optical fiber, and the light will be scattered, causing the attenuation of light. The mechanical variable adapter type fiber optic attenuator based on this principle, the rotating distance of the two ends of the connector can be adjusted by the mechanical device, and the light attenuation value can be controlled between 0-30dB.
Features:
Specifications:
Fiber Optic Attenuator | Parameter |
Single mode | Multi-mode |
Work Wavelength | 1310nm, 1550nm | 850nm, 1300nm |
Attenuation Value | FC SC ST (0-30dB); LC (0-15dB) |
Connector Type | FC SC ST LC MU
|
Return Loss | UPC ≥ 50, UPC ≥ 60 | -- |
Operating Temperature | -20ºC to +70ºC |
Storage Temperature | -40ºC to +85ºC |
