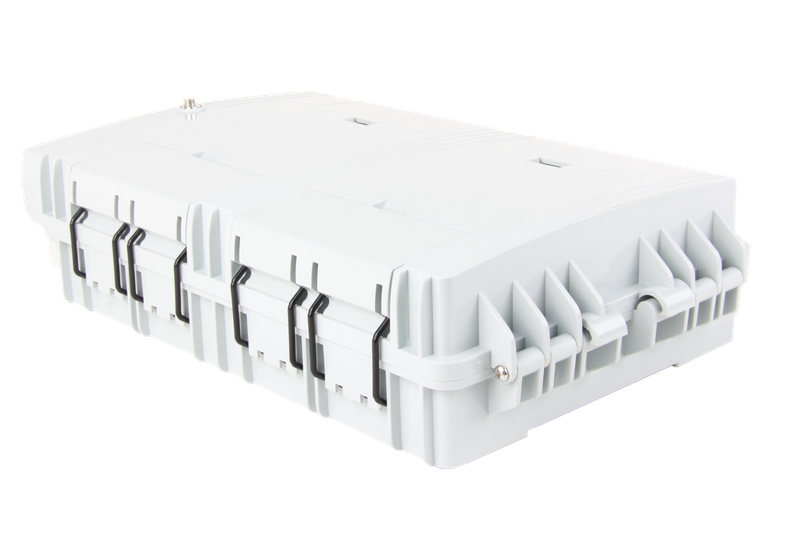

3S FOSB-16-F Fiber Optical Splitter Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
1. Water-proof design with IP65 Protection level
2. Integrated with cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm

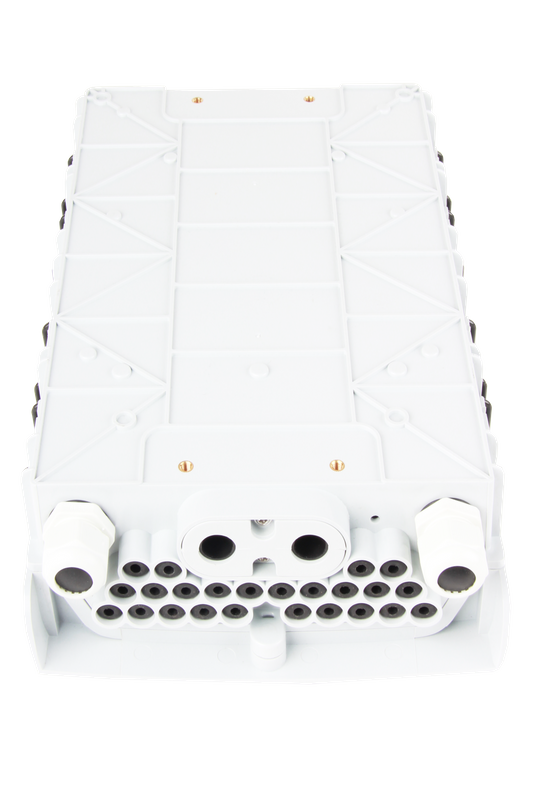

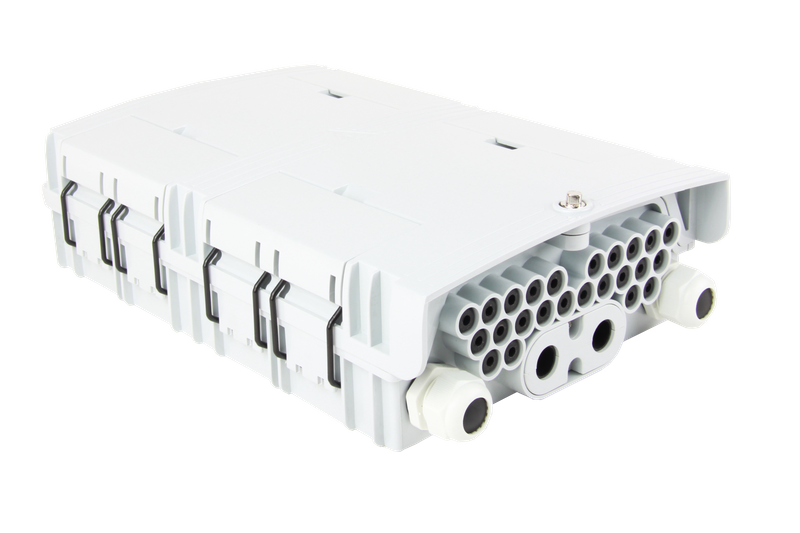

6. 24 ports cable entrance for 2*3mm FTTH drop cable
7. 1 uncut cable port and 2 round cable ports for feeder cables

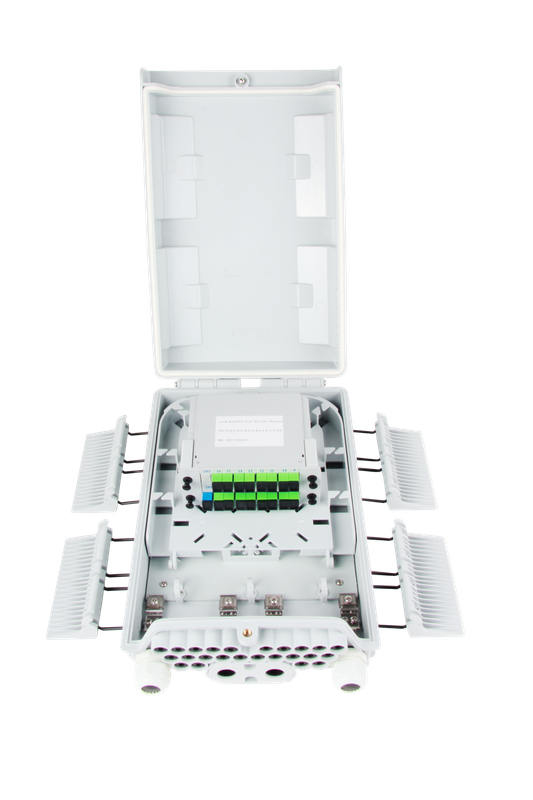

8. 1*16 or 1*8 Insertion Module Splitter can be installed
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 330*210*87 | PLC 1pcs of 1x16 or 2pcs of 1×8 | 1.4kg | 1.8kg | Gray |
How to order a Fiber Optical Splitter Box?
Model Rules: FOSB-16-F-XX-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail | XX: Splitter |
FOSB | 16 | F | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | P1: 1×2 P2: 1×4 P3: 1×8 P4: 1×16 |
