Description

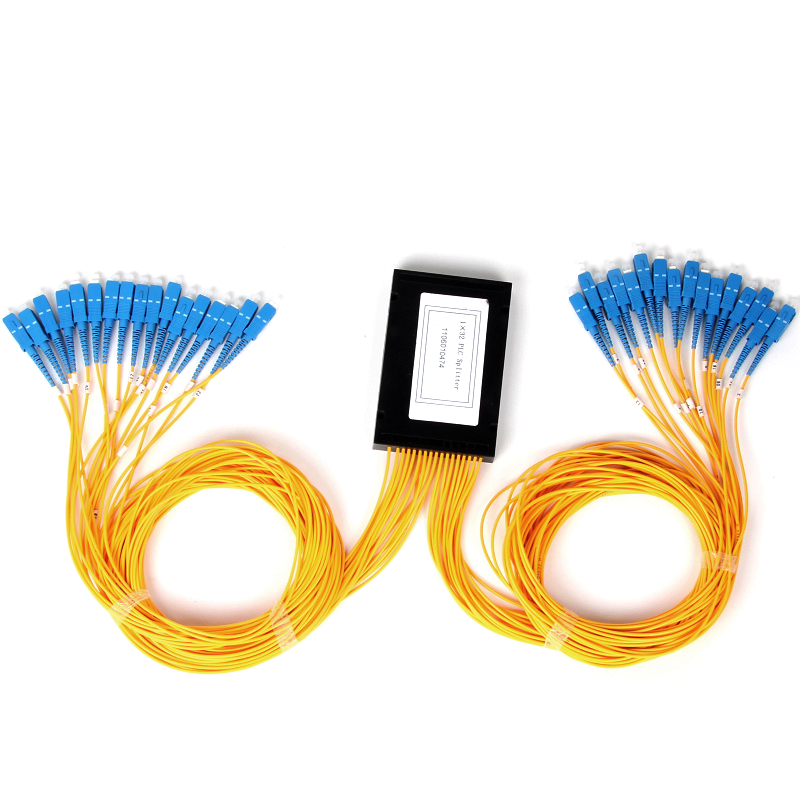

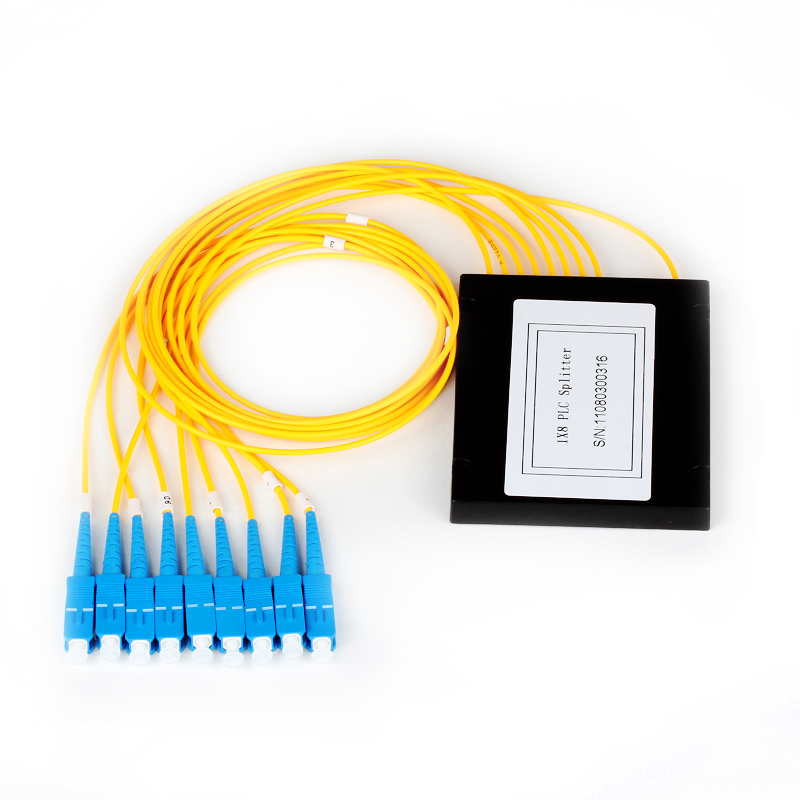

An ABS Box Type PLC Splitter is a micro/Mini PLC splitter enclosed into ABS box with standard pigtails. 3S provides a high precise cassette type PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact cassette type design, can easily be placed into optical fiber distribution box, optical fiber junction box or any kind of box, which can reserve some space. It can be easily applied in FTTx construction, optical network construction, CATV networks and etc.
Features
1. Compact design
2. Low insertion loss and low PDL
3. High reliability
4. High channel counts
5. Wide wavelength range
6. Large operating and temperature range
7. Customized packaging and configuration
8. Full Telcordia GR1209/1221 qualifications
Specification
1×N (N>2) PLCS (With connector) Optical parameters |
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operation wavelength (nm) | 1260~1650 |
Insertion loss (dB) Max | 4.1 | 7.4 | 10.5 | 13.8 | 17.1 | 20.4 |
Return loss (dB) Min | APC | 55 | 55 | 55 | 55 | 55 | 55 |
UPC | 50 | 50 | 50 | 50 | 50 | 50 |
PDL (dB) Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 |
Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 |
WDL (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Pigtail length (m) | 1.2(±0.1) or customer specified |
Fiber type | SMF-28e with 2.0/3.0mm tight buffered fiber |
Operation temperature (°C) | -20~65 |
Storage temperature (°C) | -40~85 |
Dimension (L×W×H) (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×114×18 | 140×114×18 |
2×N (N>2) PLCS (With connector) Optical parameters |
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Operation wavelength (nm) | 1260~1650 |
Insertion loss (dB) Max | 4.4 | 7.7 | 10.8 | 14.1 | 17.4 | 20.7 |
Return loss (dB) Min | APC | 55 | 55 | 55 | 55 | 55 | 55 |
UPC | 50 | 50 | 50 | 50 | 50 | 50 |
PDL (dB) Max | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 |
WDL (dB) |
| 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Pigtail length (m) | 1.2(±0.1) or customer specified |
Fiber type | SMF-28e with 2.0/3.0mm tight buffered fiber |
Operation temperature (°C) | -20~85 |
Storage temperature (°C) | -40~85 |
Dimension (L×W×H) (mm) | 100×70×9 | 100×70×9 | 100×70×9 | 120×80×18 | 140×114×18 | 140×114×18 |
