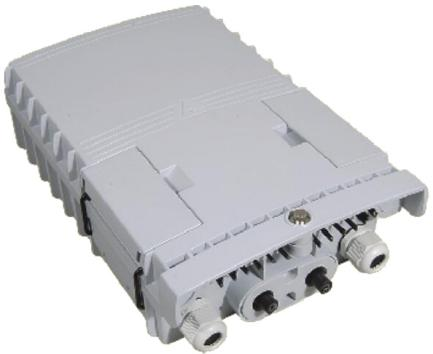

3S FOSB-8-B Fiber Splitter Box provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
Features:
Water-proof design with IP65 Protection level

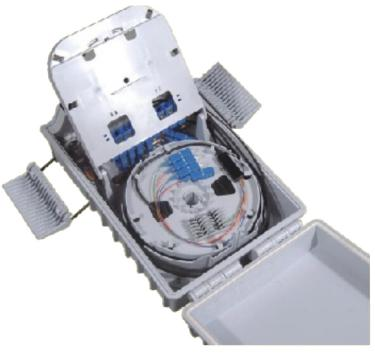

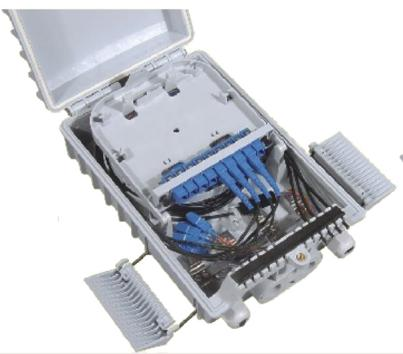

Integrated with splice cassette and cable management system
1*8 Insertion Module or micro type Splitter can be installed
1 uncut cable port and 2 round cable ports for feeder cables
Splice holder for 12pcs of Fiber Splice Protective Sleeves
40m of 3*2mm FTTH Drop Cable or 30m of 4.5mm mini armored cable can be stored in the freewheeling reel and pulled out from it.
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 274*175*82 | PLC 1×8 | 1.2kg | 2kg | White |
How to order a Fiber Optical Splitter Box?
Model Rules: FOSB-8-B-XX-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail | XX: Splitter |
FOSB | 8 | B | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | P1: 1×2 P2: 1×4 P3: 1×8 |
