Description:

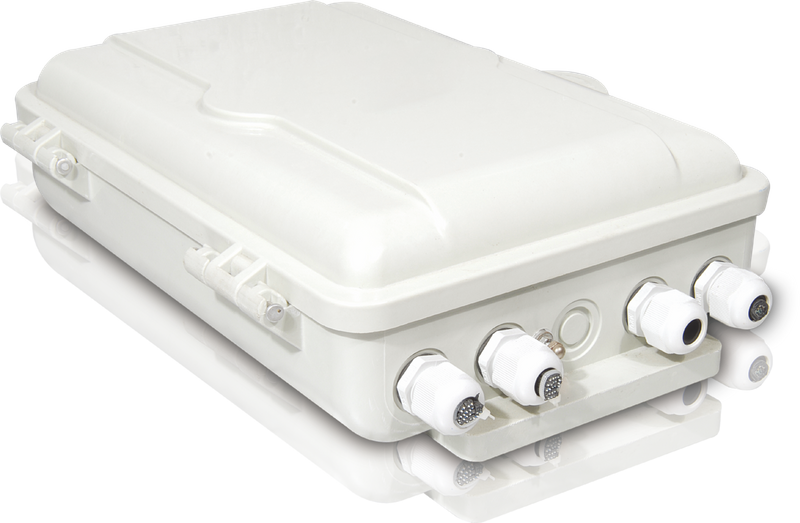

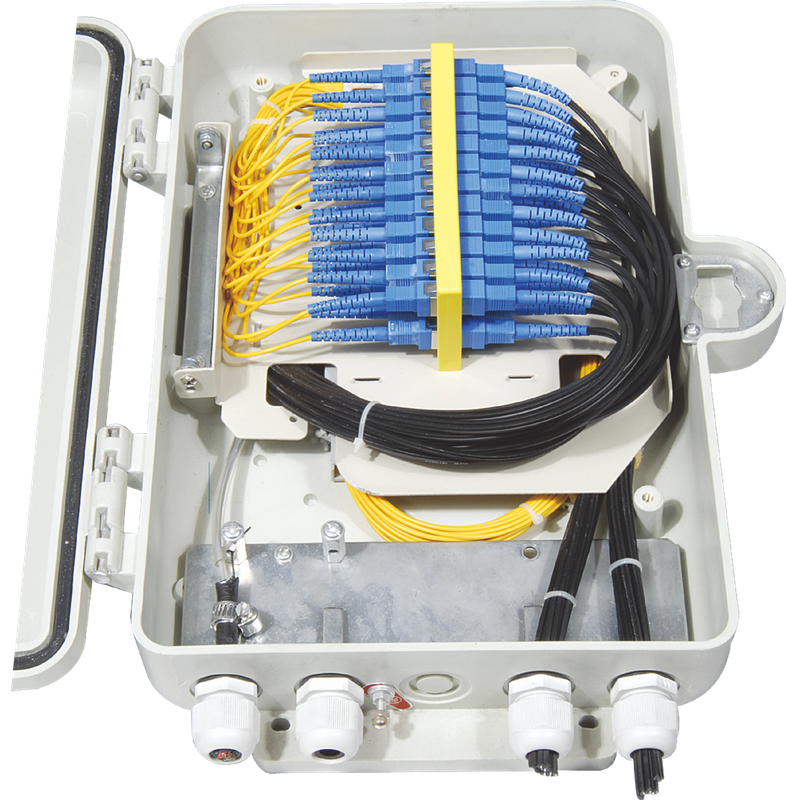

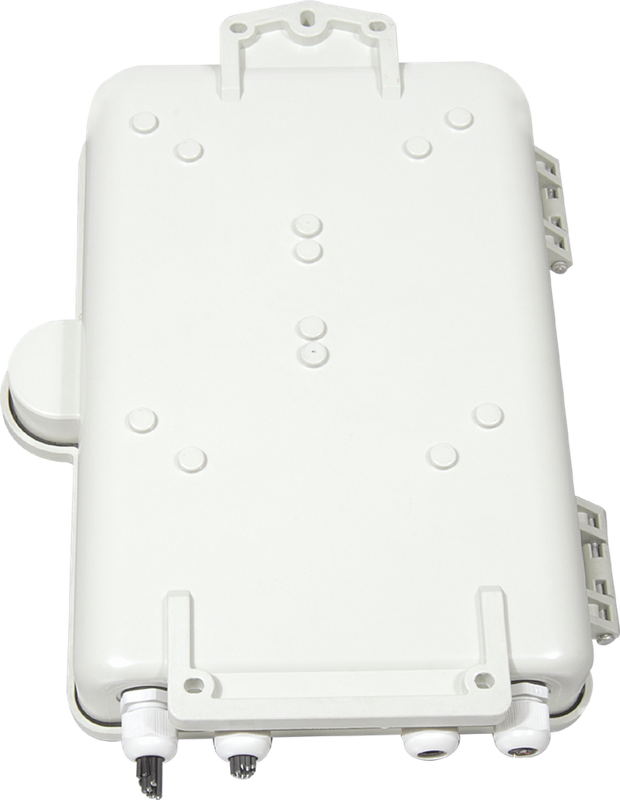

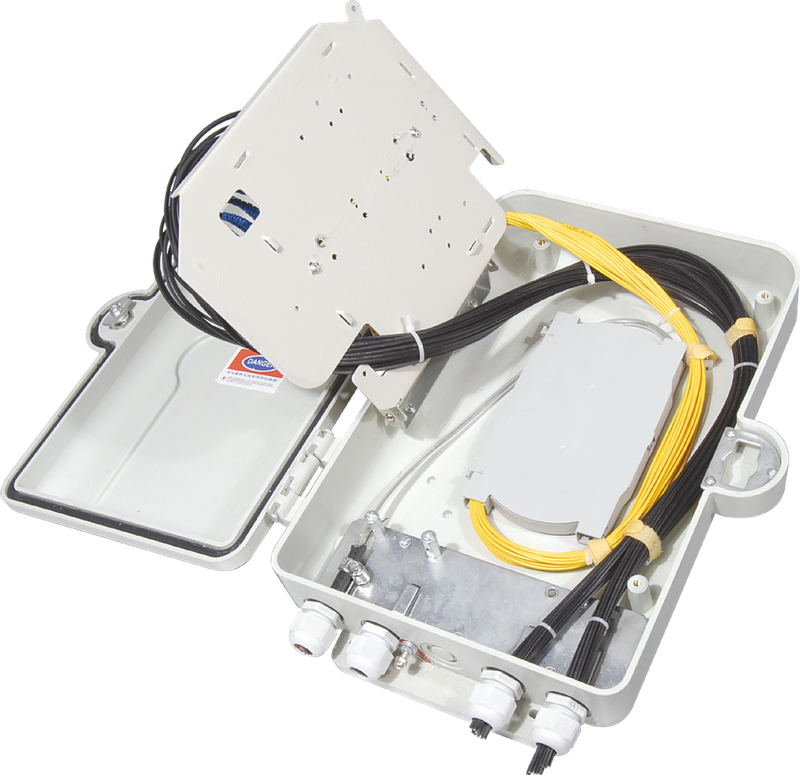

3S FOTB-24-E Fiber Optical Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. Suitable for the fusion splice or mechanical splice
7. 2 ports cable entrance for FTTH drop cable
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
SMC | A*B*C(mm) 390*288*105 | SC 24 Ports | LC 48 Ports | 2.7kg | 3.9kg | White |
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-24-E-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
FOTB | 24 | E | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC |
