Descriptions:
FC-800 High Precision Fiber Optic Cleaver is a new generation product. it's an extremely light and reliable cleaver for the construction of optical network. Designed for excellent portability, FC-800 High Precision Fiber Cleaver is ideal for FTTx applications. The attached hexagonal wrench on the bottom allows you to adjust cleaver anytime and everywhere, enhancing the working efficiency greatly. With the special hand wrist strap, users should worry about accidental dropping no more.
Features:
1. Special hand wrist strap design, dropping proof
2. Internal hexagonal wrench placement design
3. One step operation, no special skill is required
4. Compact design
5. High reliability
6. Good cleaving performance
7. 36,000 times cleave per blade
8. High stability and precision
Applications:
1. FTTx construction
2. Optical network construction
3. LAN, WAN, and Metro networks
4. CATV networks
Specifications:
Fiber Type | silicon |
Fiber Diameter | 250um/900um |
Bare Fiber Diameter | 125um |
Cleave Angle Capability | typically <1˚ (single core) |
Cleave Length | fiber diameter 250um/900um: 9~16mm/10~16mm |
Blade Lifetime | 36,000 fiber cleaves |
Dimension | 52W*52D*51H (mm) |
Weight | 260g |
Ordering Information:
Model | Name | Description |
FC-800 | High Precision Fiber Cleaver | without fiber collector |

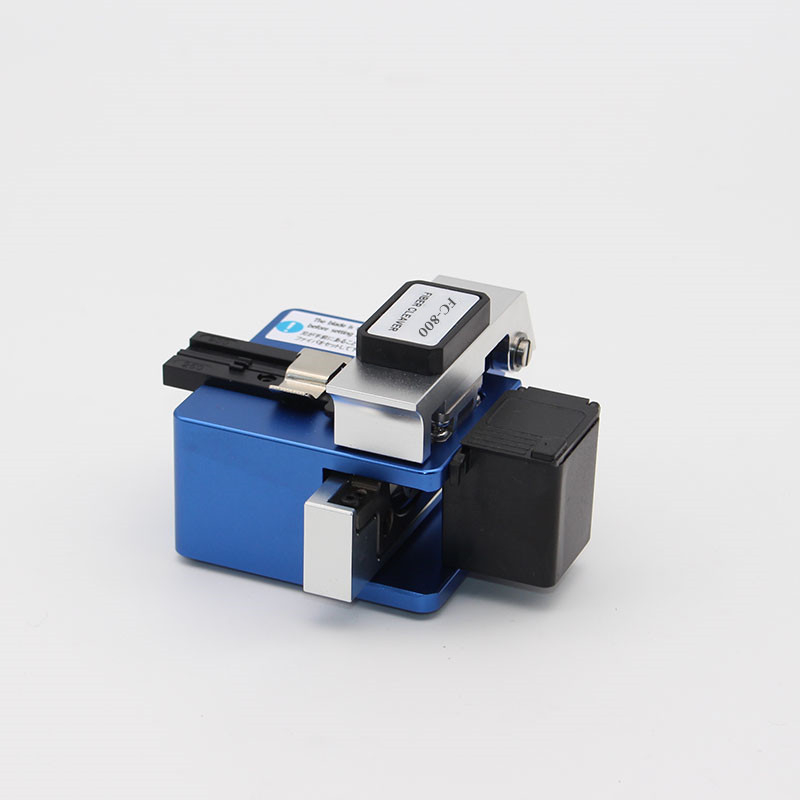

FC-800A | High Precision Fiber Cleaver | with fiber collector |
FC800-12RB | Replacement Blade | 12 positions |
