Carrying bulky heavy fiber test equipment for simple daily FTTH troubleshooting is a burden for front line entry level technicians.

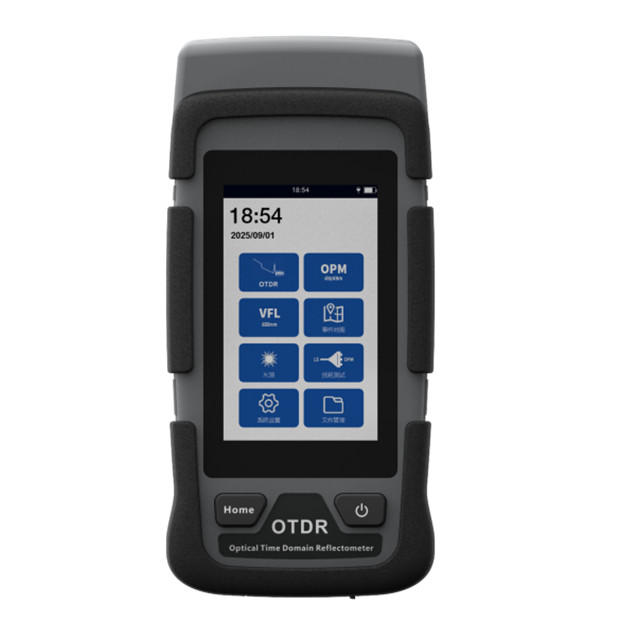

Built for routine FTTx installation and fault repair work, the 1500PRO mini OTDR delivers powerful fiber testing performance in an ultra compact palm size body weighing merely 380 grams. You can easily slip it into your tool pouch or pocket, no more heavy equipment to carry up poles.

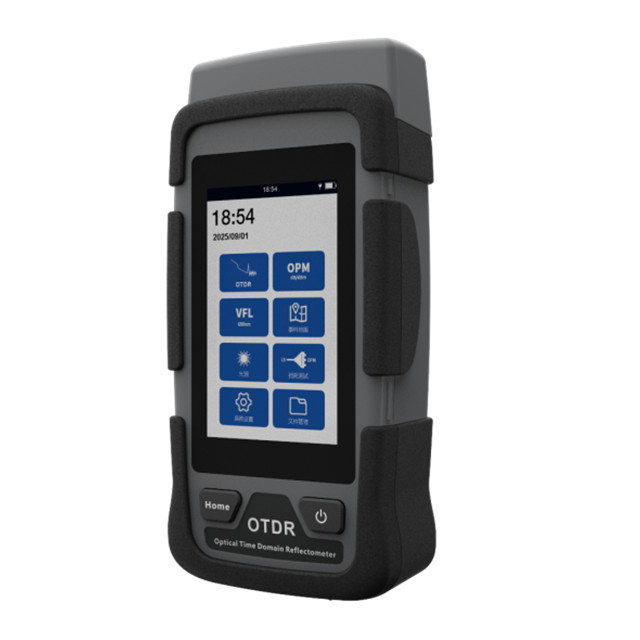

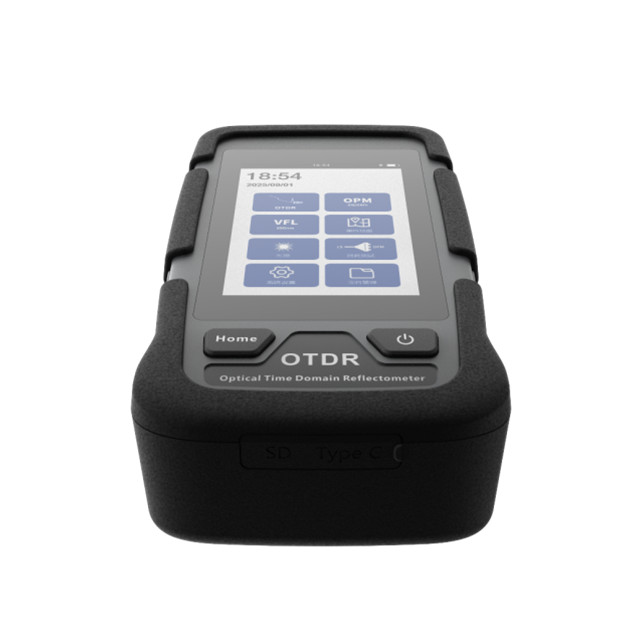

Equipped with a 4 inch capacitive touchscreen and beginner friendly one button auto test, even less experienced technicians can complete fiber inspection and get readable test results quickly. It integrates 7 practical functions: OTDR, optical power meter, light source, VFL, event map, RJ45 network cable sequence test and LED flashlight.
Filtered versions support live PON testing with automatic optical protection to prevent module damage. Adopting widely used Type C charging interface, you can power it with common mobile phone chargers for 8 hour continuous field work. It is the cost effective daily work companion for FTTx fault repair, link acceptance and access network maintenance.
Need glove operable physical keys for heavy duty outdoor work? Check our 2100PRO OTDR.
For long haul backbone fiber testing, view flagship 2200MAX OTDR.

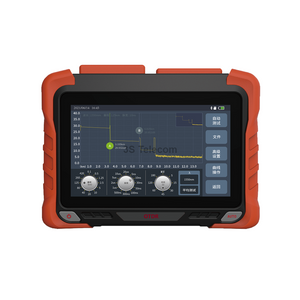

For professional deep PON ODN troubleshooting through 1:64 splitter, see 2000PON OTDR.
Key Features
Palm -sized ultra- light weight unit — only 380g, easy to store in tool pouch or pocket
4- inch color capacitive touchscreen — simple intuitive UI for field operation
7 in 1 integrated tester — OTDR + OPM + OLS + VFL + Event Map + RJ45 cable test + LED flashlight
Beginner friendly one- button auto test, fast results for entry level field technicians
1.2m event dead zone, reliable detection for short fiber jumpers and patch cords
Filtered models support live PON test, built in automatic optical module protection
Universal Type C charging, compatible with ordinary mobile phone chargers, up to 8 hours continuous test
Standard Telcordia SOR trace format, SD card storage expansion, direct PDF report output
Application
FTTx / PON construction & daily maintenance
Fiber fault repair and on site troubleshooting
Access network installation & engineering acceptance test
CATV network field testing
LAN / WAN structured cabling verification
Telecom access link routine inspection
Quick Selection Guide
Entry level daily FTTH test → choose D28
Dual wavelength live fiber test → choose D28F
PON live network test(1610/1625/1650nm) → choose SF / ST series
Data center multi mode test → choose M26
Single mode + multi mode all in one → choose SM28
Model
Wavelength (nm)
Dynamic Range (dB)
Dead Zone (m)
Max Range
1500Pro‑D28
1310/1550
28/26
1.2/5
150km
1500Pro‑D28F
1310/1550
28/26
1.2/5
150km, dual‑wavelength live test
1500Pro‑SF3
1610
26
1.2/5
150km, filtered
1500Pro‑SF4
1625
26
1.2/5
150km, filtered
1500Pro‑SF5
1650
26
1.2/5
150km, filtered
1500Pro‑ST3
1310/1550/1610
28/26/26
1.2/5
150km, triple filtered
1500Pro‑ST4
1310/1550/1625
28/26/26
1.2/5
150km, triple filtered
1500Pro‑ST5
1310/1550/1650
28/26/26
1.2/5
150km, triple filtered
1500Pro‑M26
850/1300
22/26
2/8
Multi‑mode, data center
1500Pro‑SM28
1310/1550 + 850/1300
28/26 + 22/26
1.2/5 + 2/8
SM+MM all‑in‑one
Note: D28F model supports automatic dual wavelength live fiber testing. Custom models available on request.
Technical Specifications
OTDR Module
Parameter
Value
Pulse Width
3ns ~ 20μs (SM), 3ns ~ 2μs (MM)
Distance Range
100m ~ 150km
Sampling Points
Max 20,000 points
Sampling Resolution
12.5cm ~ 8m
Distance Accuracy
±(1m + sampling interval + 0.005%×distance)
Linearity
±0.2dB/dB
Reflectance Accuracy
±3dB
IOR Range
1.0000 ~ 2.0000 adjustable
File Format
Standard SOR (Telcordia SR‑4731)
Laser Safety
Class 3B, automatic optical protection
OPM / OLS / VFL & Extra Functions
Parameter
Value
OPM Wavelength
850~1650nm, 10 calibrated wavelengths
OPM Test Range
Type A: -70~+10dBm; Type B: -50~+26dBm
OPM Accuracy
±5%
OLS Output Power
-5dBm ±2dB adjustable
OLS Stability
±5% @ 25°C
VFL
≥10mW 650nm, CW/1Hz blink
RJ45 Test
Line sequence check, cable tracing
Extra Function
Built‑in LED flashlight
General Specifications
Parameter
Value
Display
4" color capacitive touchscreen
Battery
3.7V/4000mAh Li‑ion
Battery Life
8h continuous test, 15h standby
Charging
USB Type‑C, universal phone charger
Storage
Internal ≥1000 traces, SD‑card expansion
Interface
FC/SC/ST universal optical port, Type‑C, SD slot
Environment & Mechanical
Parameter
Value
Operating Temp
-10°C ~ +50°C, 0~90% RH non‑condensing
Storage Temp
-40°C ~ +70°C
Dimensions
180 × 76 × 48 mm (palm‑sized)
Weight
Only 380g (with battery)
Certification
CE, RoHS, laser safety IEC 60825
FAQ
Q1: What are the differences between 1500PRO, 2100PRO, 2200MAX and 2000PON?
The 1500PRO is palm‑sized mini entry‑level OTDR at only 380g, for daily short‑range FTTx troubleshooting. 2100PRO is mid‑range FTTH model with touch+hard‑key dual‑operation for glove‑friendly field work. 2200MAX is flagship unit for long‑haul backbone testing. 2000PON is dedicated PON OTDR which can test through 1:64 PLC splitter for operator‑grade ODN maintenance.
Q2: What is special about the RJ45 test and LED flashlight function?
Built‑in RJ45 port checks LAN cable sequence and traces cables. Integrated LED flashlight offers auxiliary lighting for dark manholes or cabinet environments.
Q3: Does it use common phone‑type charger for charging?
Yes. It adopts universal Type‑C charging interface, you can use ordinary mobile‑phone chargers for power supply. It provides up to 8‑hour continuous testing and 15‑hour standby time.
Q4: Is this OTDR suitable for new or beginner technicians?
Yes. One‑button auto‑test simplifies operation. New users can obtain test results quickly without professional OTDR‑curve reading experience.
Q5: What trace file format does it support and is PC software available?
It saves traces as standard Telcordia SOR format and supports direct PDF report output. Free PC analysis software is provided for trace review and report processing.
