FPX-P1 Series ODF

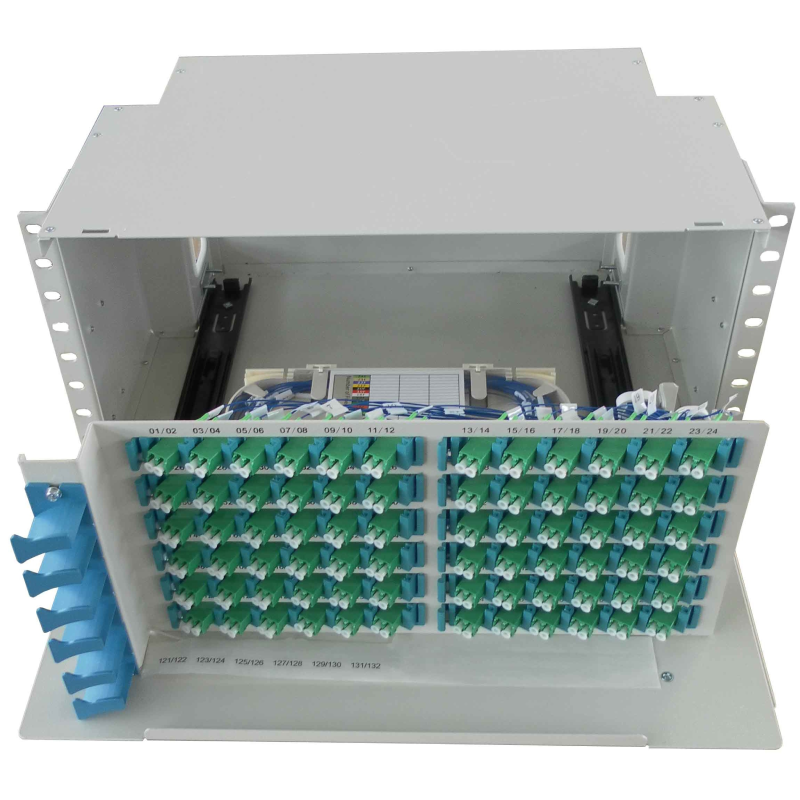

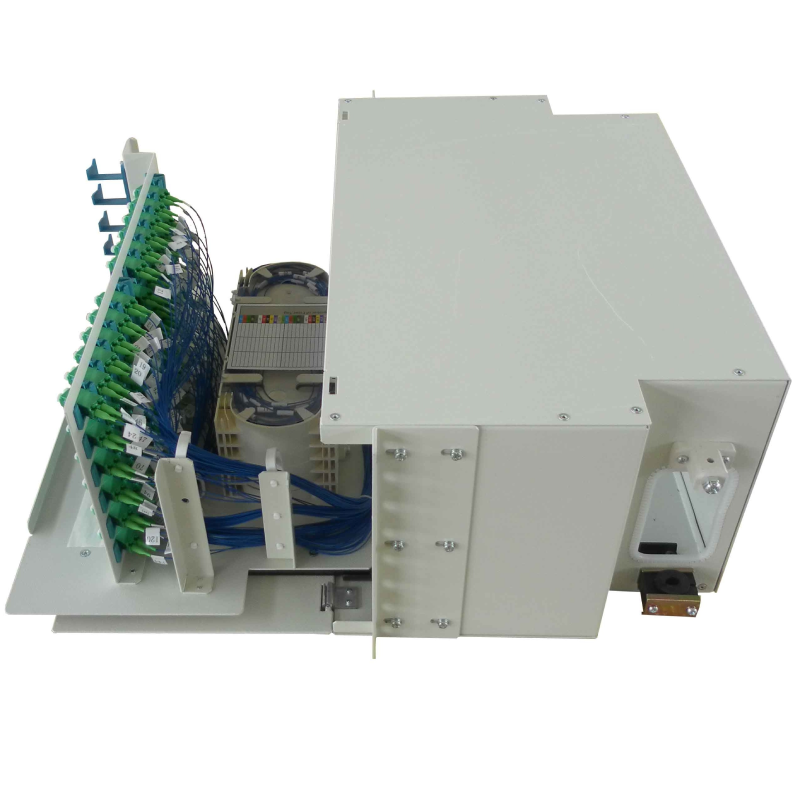

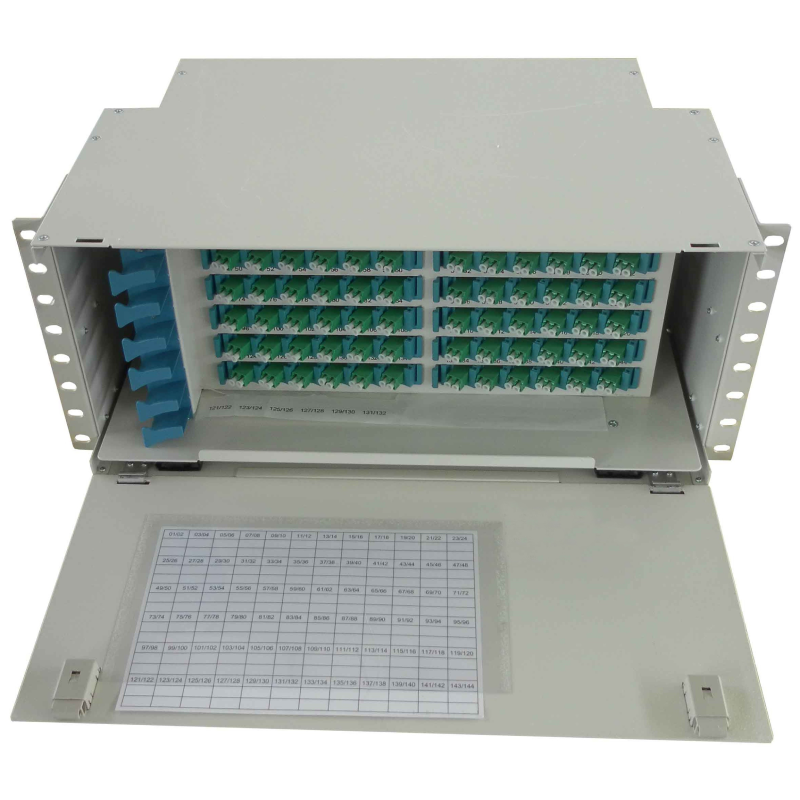

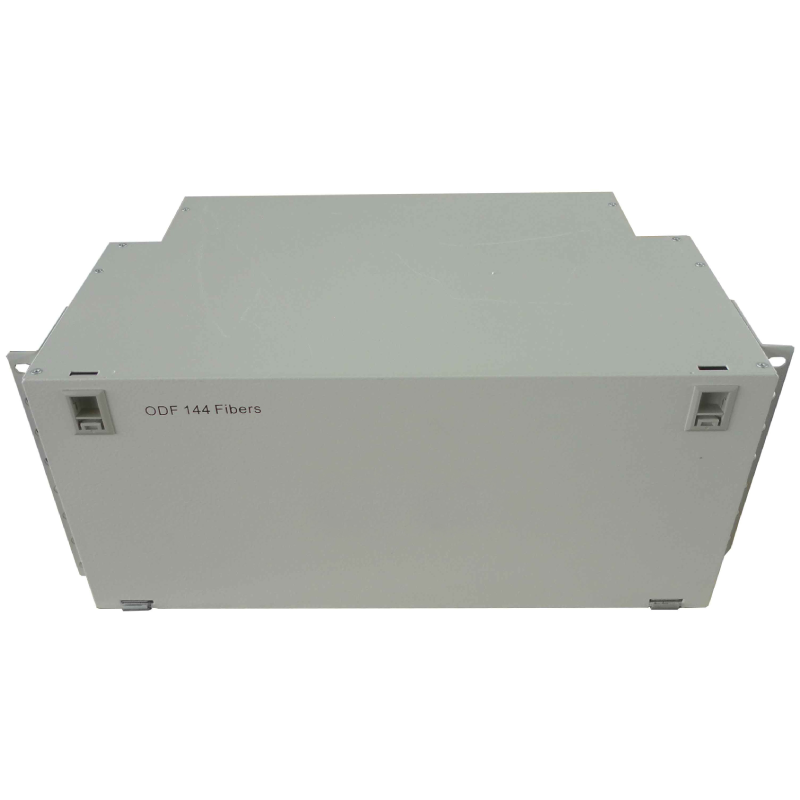

Fig. 1: ODF

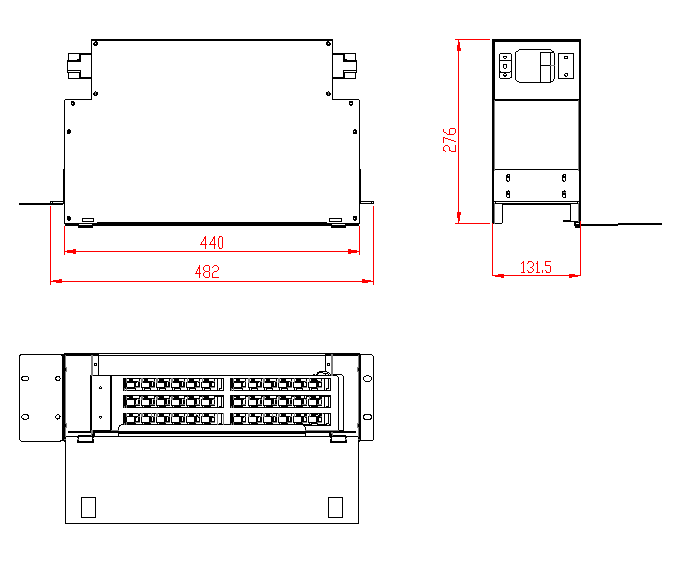

Fig.2: Dimension
Description:
FPX-P1 Series ODF is used as terminal equipment of fiber optic cable for optical fiber wiring, fixation, fusion and patching.
Features:
1. Cable clamping and strength member fixation system
2. Universal adapter panel, suitable for SC, FC and LC adapters
3. Clear fiber number marking on adapter panel and for pigtails
General Specifications:
Applicable Adapter | SC, FC, duplex LC |
Capacity | 12 fibers, 24 fibers, 36 fibers, 48 fibers, 72 fibers, 96 fibers, 144 fibers etc |
Material | cold rolled steel |
Color | Black or grey |
Fiber Capacity | 482(W)*276(D)*44(H)mm | SC/FC: 12 fibers; LC: 24 fibers |
482(W)*276(D)*87(H)mm | SC/FC: 24 fibers; LC: 48 fibers |
482(W)*276(D)*131.5(H)mm | SC/FC: 36 fibers; LC: 72 fibers |
482(W)*276(D)*150(H)mm | SC/FC: 48 fibers; LC: 96 fibers |
482(W)*276(D)*200(H)mm | SC/FC: 72 fibers; LC: 144 fibers |
Installation Method | 19” rack mount (21” rack mount is available) |
Splice Tray Capacity | 24 fibers/tray |
How to order a ODF Fiber Optical Patch Panel?
Model Rules: FPX-P1-XX-XX-XX
Ordering Information:
Model | Type | XX: Adapter | Fiber Capacity | XX: Pigtail |
FPX | P1 | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | 12=12 fibers 24=24 fibers 48=48 fibers 72=72 fibers | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC |
