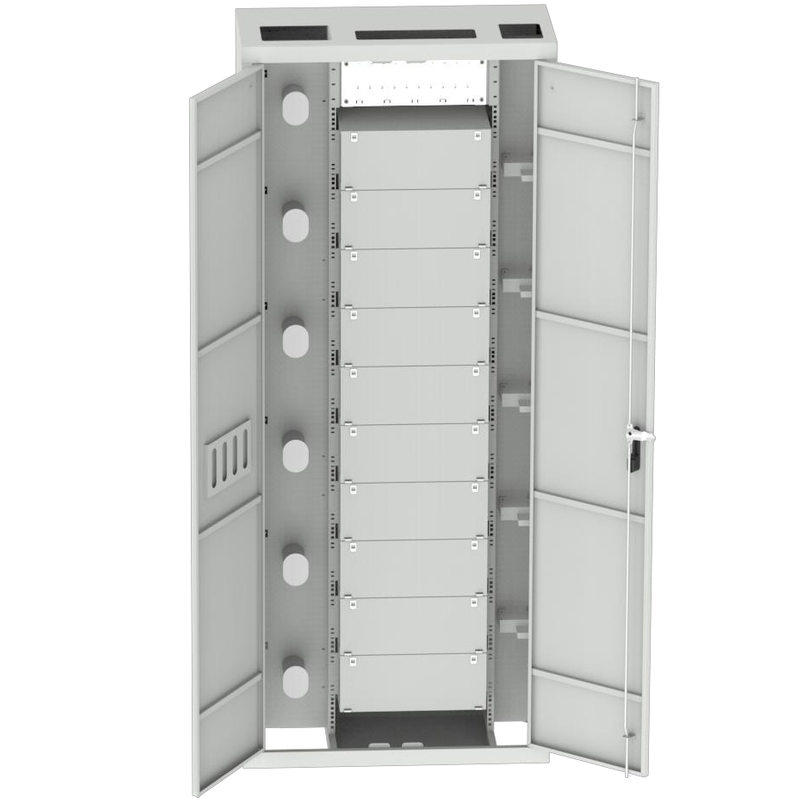

Features of ODF-F2-C 42U ODF
1. Humanization: Products are of humanized management and operation, and detail-orientation.
2. Specialization: Technical professionals and production/testing equipment ensure excellent product performance.
3. Standardization: We strictly follow industry standard and actively participate in the modification of industry specifications.
4. The ODF for MDU/MTU in telecommunication room is designed SC connector type splice/patch sub-rack and SC optical splitter.
5. The ODF support minimum 900 fibre terminations capacity in the same enclosure for Central Office.
6. There are identification marks on the sub-racks for easy management and maintenance.
7. The ODF is designed with front access termination only, the ODF is fully enclosed with lockable common key front door and detachable back panel.
8. All metal parts, parts and accessories have been powder spray coating or electroplated on the surface, free from corrosion and various forms of local corrosion.
9. The ODF dimension is meet ETS 300 119-2 standard requirements.The Mounting frame used in the ODF is in a standard 19" open rack system in accordance with BS EN 60297- 3.
10. The ODF support vertical patch cord routing management minimum 1000 patch cord.Use a set of Bobbin to store excess length of patch cord.
11. Useful operating life life is greater than 20 years.
12. All metal accessories are made of a resistant material protected against corrosion (Complies with ASTM B117 - NTC 1156 - standard).
13. Complies with IEC 60068-2-1.
14. Complies with IEC 60950-1 .
Specifications of ODF-F2-C 42U ODF
Model | ODF-F2-C |
Installation Method | Floor Mount |
Material | Cold Rolled Steel |
Color | Gray ( Default RAL 7035 ) |
Size (Pic 1) | H*W*D* = 2200 * 900 * 300 (mm) |
Installed Capacity | 42 U |
Minimum Bending Radius | ≥ 33 MM |

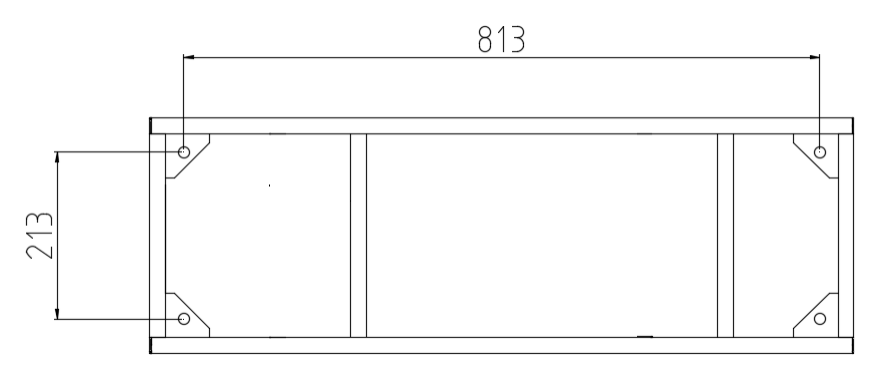

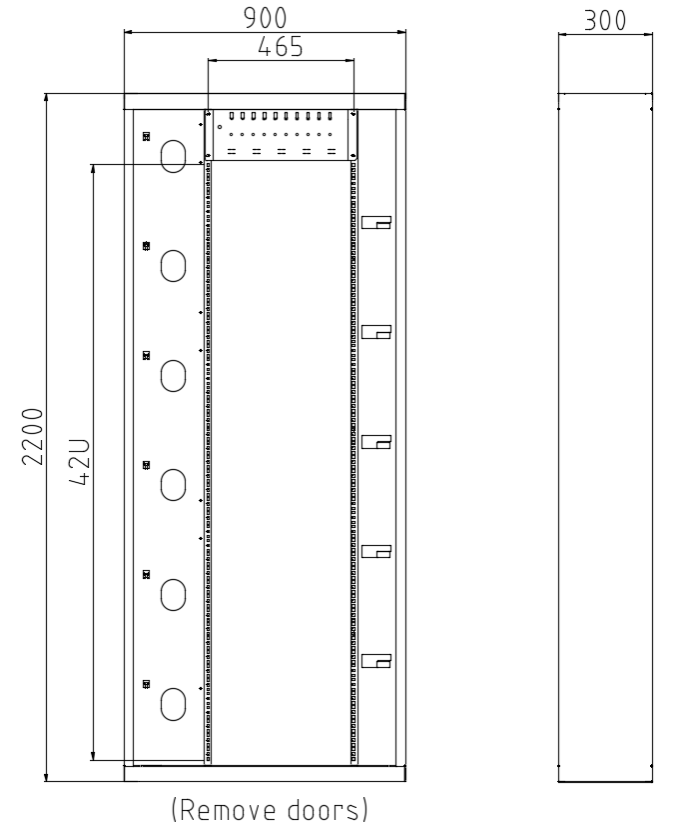

ODF Dimensions(Pic 1)

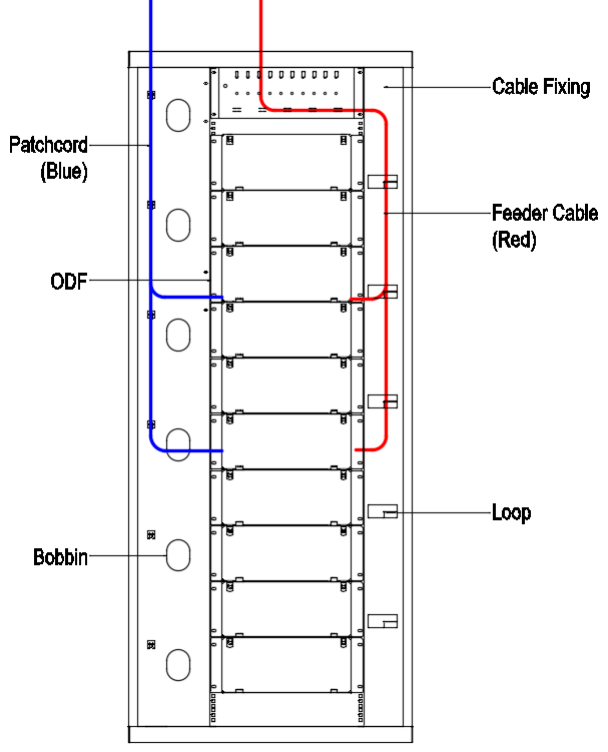

Fiber Routing(Pic 2)

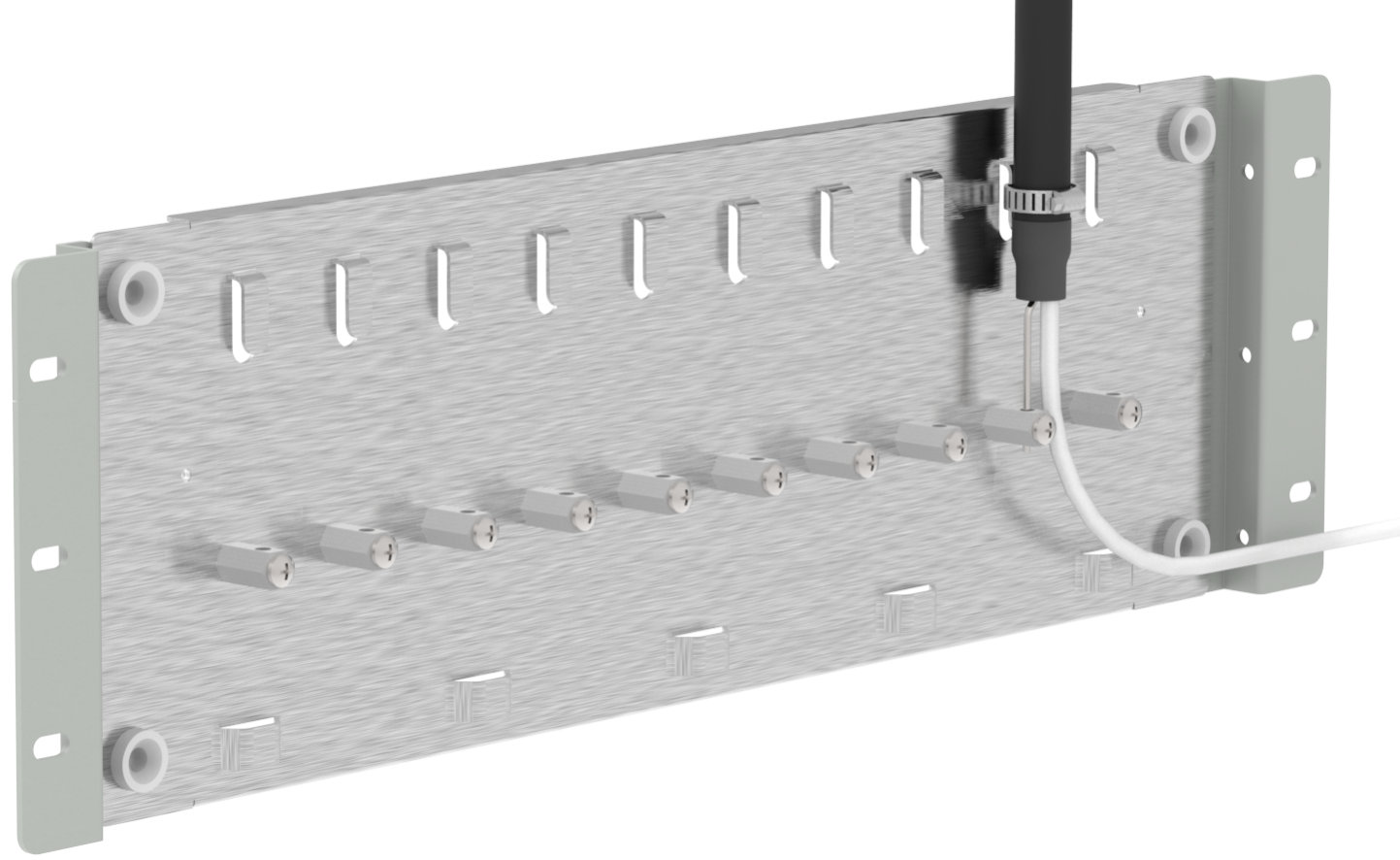

Cable Fixing Panel(Pic 3)
It is used for fixing incoming cable, and it can fix cable with a diameter of 12~22mm. It also comes with strain relief bar and cable clamping mechanism(optional).

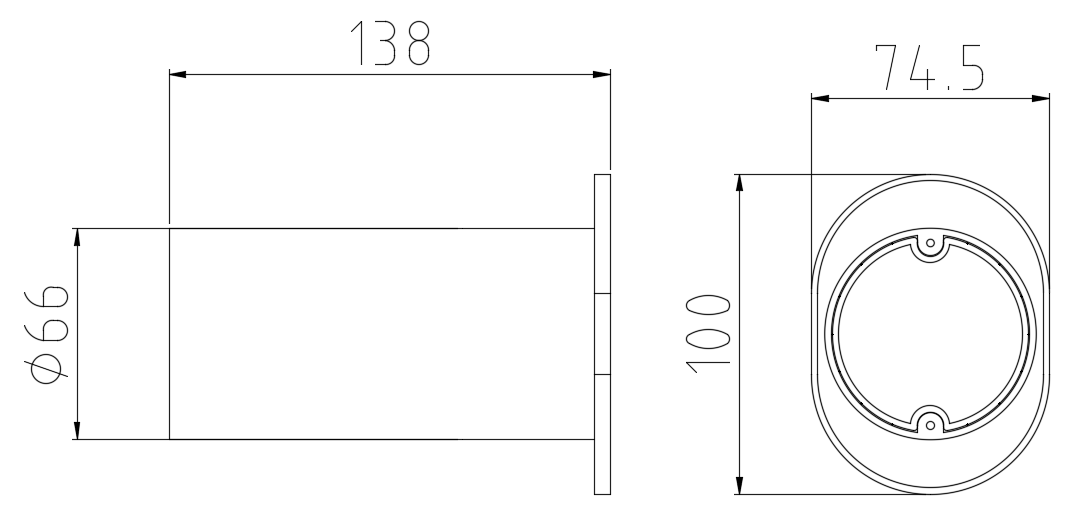

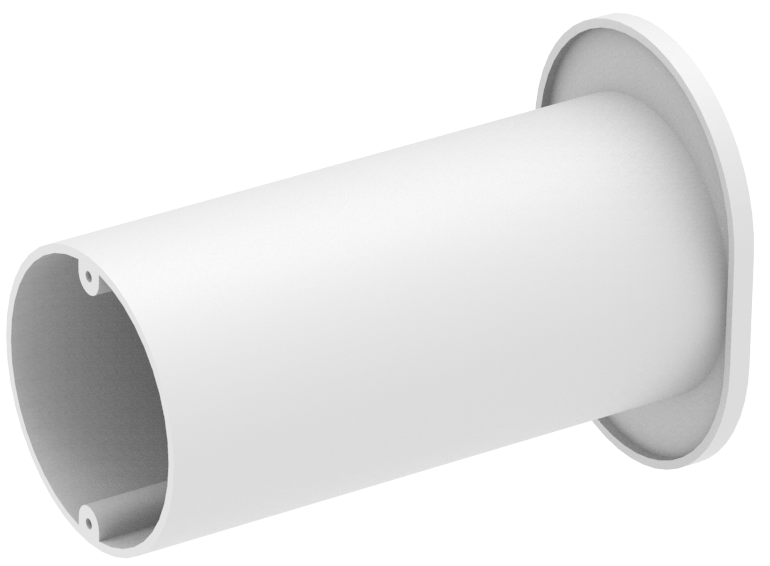

Bobbins(Pic4-5)
Theyare used to store excess length of patch cord.
Installation：
Floor-mounted by Using 4pcs expansion bolts to connect and fix the base and the floor（Pic 6) .
