Description:

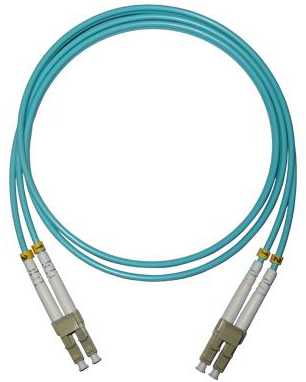

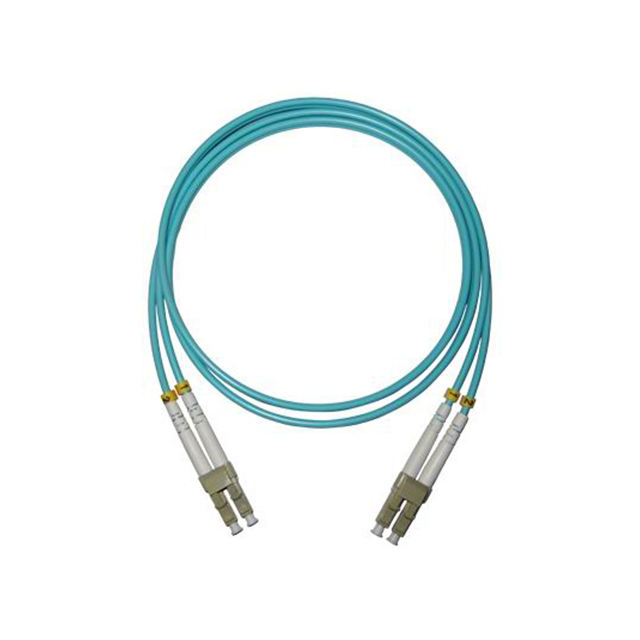

LC Patchcord consists of 1F or 2F fiber optic cable and LC/SC/FC connector. They can be quickly connected from one ODF to the other in high density connection.
Features:
1. Low insertion loss, high return loss

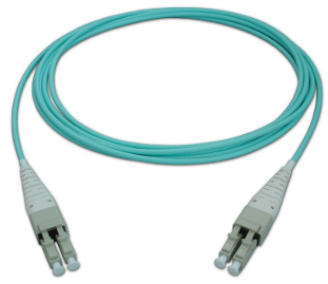

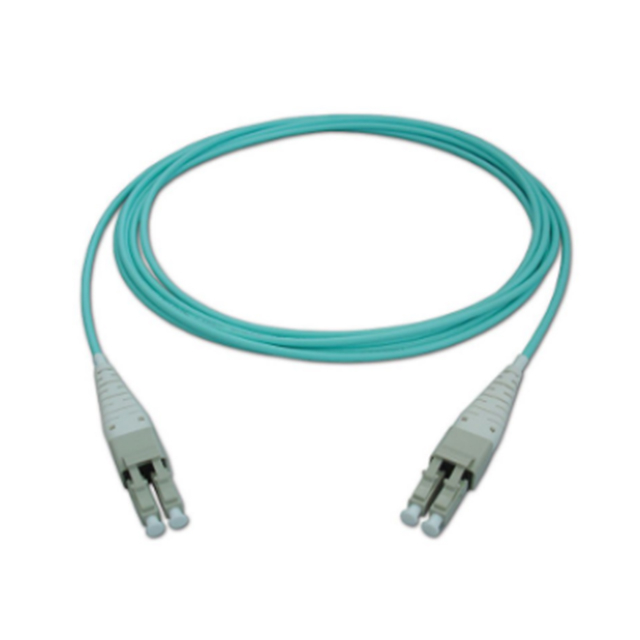

2. Uniboot in LC connectors for easy installation

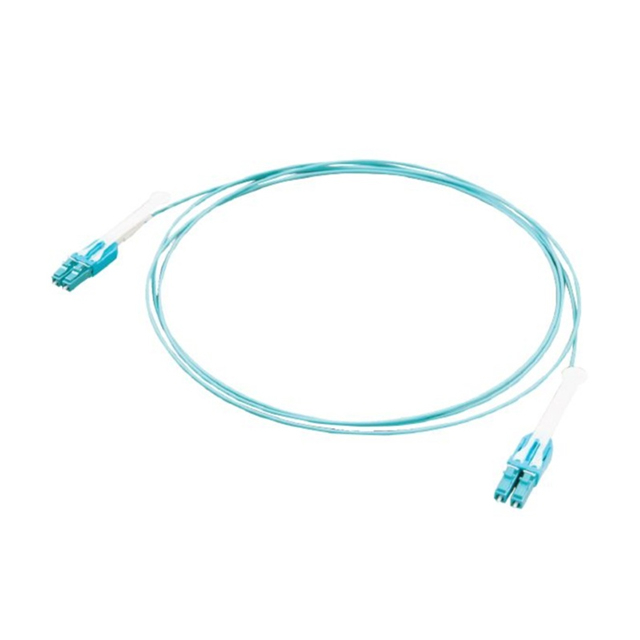

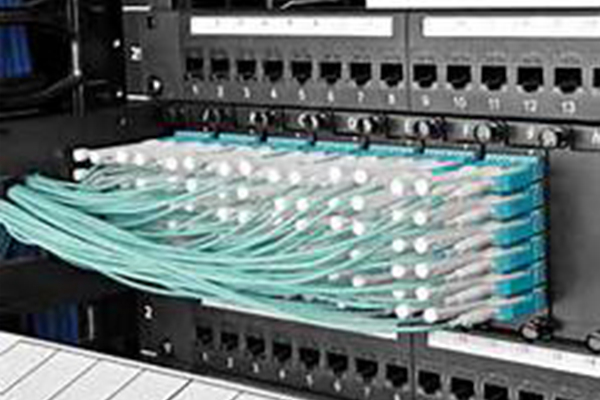

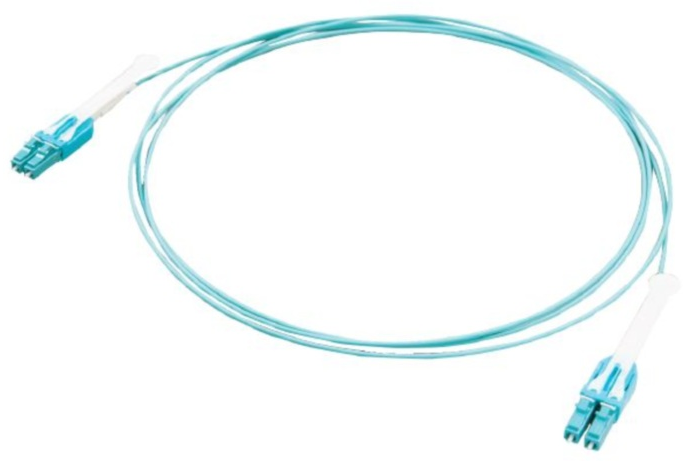

3. Optional pull bar for high density application
Standard:
1. IEC 61754, Telcordia GR-326 Issue 4
2. Low smoke (IEC 61304), Zero Halogen (IEC 60754-1), Fire retardant (IEC 60332-3C), Corrosion resistance (IEC 60754-2)
Mechanical Performance:
Fiber | Static Bending Radius (mm) | Dynamic Bending Radius (mm) | Working Temperature (°C) |
1 | 10D | 20D | -40~+75 |
2 | 10D | 20D | -40~+75 |
Ordering Information:
Name | PA: Patchcord |
A End Connector | LC: LC/UPC AL: LC/APC LCD: LC/UPC duplex ALD: LC/APC duplex LCU: LC/UPC uniboot ALU: LC/APC uniboot LCUP: LC/UPC uniboot with pull bar ALUP: LC/APC uniboot with pull bar SC: SC/UPC AS: SC/APC SCD: SC/UPC duplex ASD: SC/APC duplex |
B End Connector | LC: LC/UPC AL: LC/APC LCD: LC/UPC duplex ALD: LC/APC duplex LCU: LC/UPC uniboot ALU: LC/APC uniboot LCUP: LC/UPC uniboot with pull bar ALUP: LC/APC uniboot with pull bar SC: SC/UPC AS: SC/APC SCD: SC/UPC duplex ASD: SC/APC duplex |
Fiber Type | A: G.652D B: G.657A1 C: G.657A2 D: OM1 E: OM2 F: OM3 G: OM4 |
Fiber Count | 1: 1 fiber 2: 2 fibers |
Cable Jacket | LZ: LSZH NR: OFNR NP: OFNP |
Cable Diameter | 2: 2mm 3: 3mm |
Length | 001: 1 meter 010: 10 meters 999: 999 meters |
