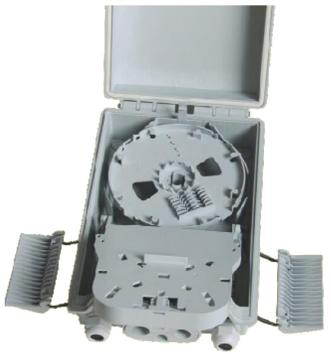

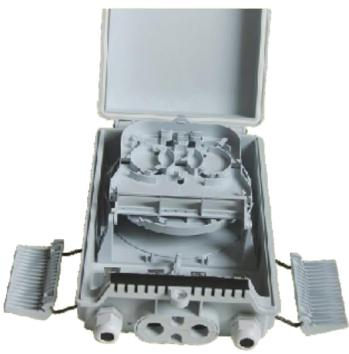

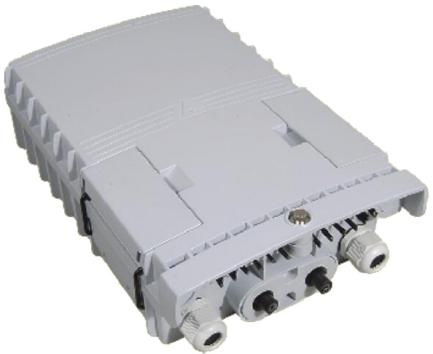

3S FOTB-12-D Fiber Optical Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
1*8 micro type splitter can be installed as an option
1 uncut cable port and 2 round cable ports for feeder cables
Splice holder for 12pcs of Fiber Splice Protective Sleeves
40m of 3*2mm FTTH Drop Cable or 30m of 4.5mm mini armored cable can be stored in the freewheeling reel and pulled out from it
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC+ABS
A*B*C(mm)
274*175*82
SC
12 Ports
LC
24 Ports
1.2kg
2kg
White
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-12-D-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
FOTB
12
D
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
