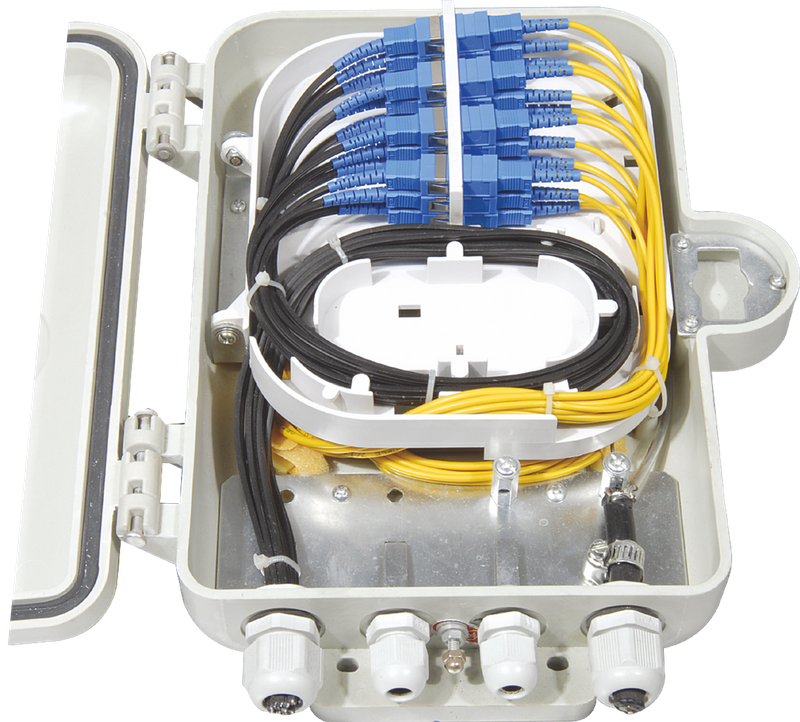

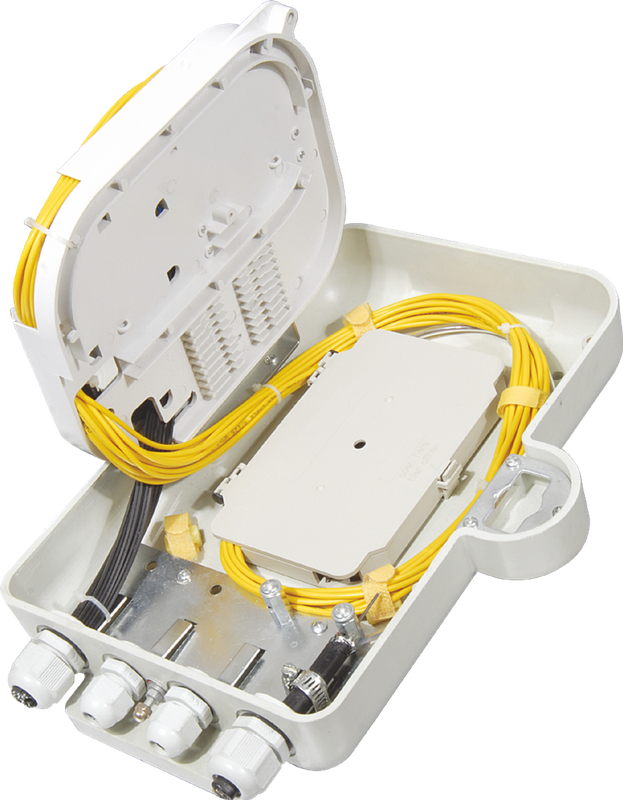

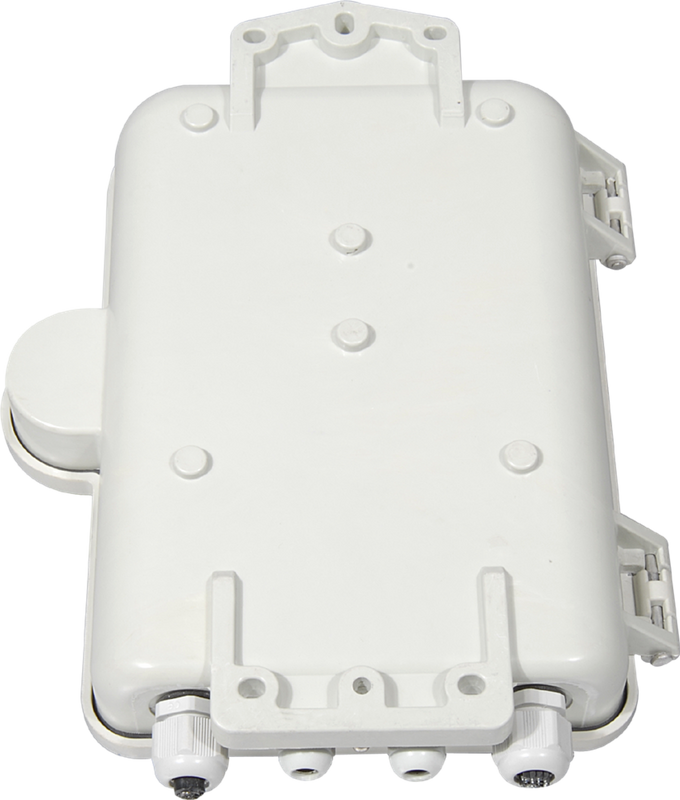

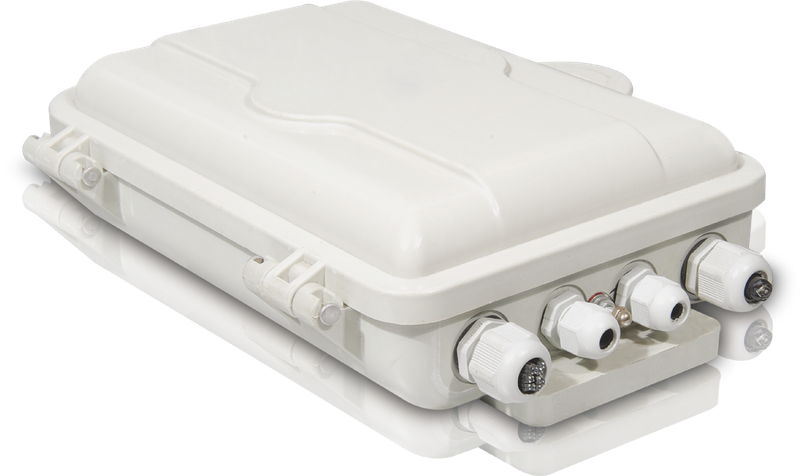

3S FOTB-12-C Fiber Optical Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
2 ports cable entrance for FTTH drop cable
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
SMC
A*B*C(mm)
314*242*82.5
SC
12 Ports
LC
24 Ports
2.5kg
3.7kg
White
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-12-C-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
FOTB
12
C
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
