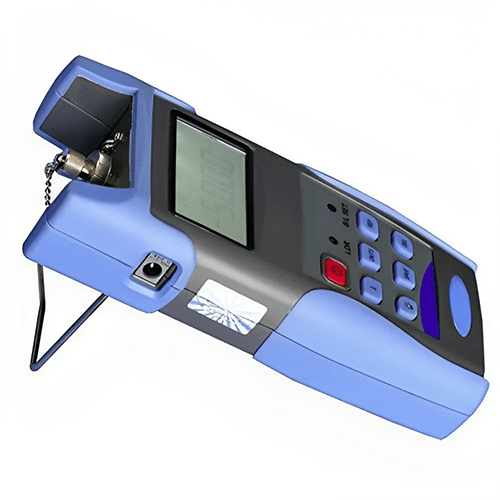

FOLT-B Series Fiber Optic Loss Testing Multi Meter - Optical Power Meter & Optical Light Source | Supporting wavelength 1310/1550nm and 1310/1490/1550nm | Supporting Customized Big Output Power Value 0dBm and +5dBm |
| |
Description:

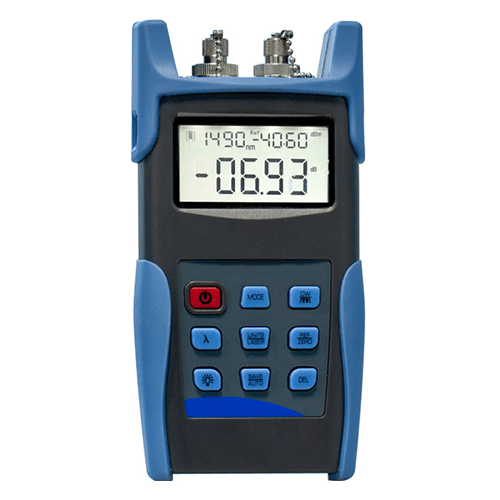

3S FOLT-B Fiber Optical Multi-Meter is a multi-function testing instrument by integrating fiber optical light source (OLS) and optical power meter (OPM) for fiber optical loss testing. It is commonly called fiber optical loss tester. The optical power meter (OPM) is used to test the loss of fiber optic link. The optical light source (OLS) is used to measure the continuous optical signal. FOLT-B has the function of recording, storing and uploading the data tested by the instrument. They are widely used in the fiber optic line project construction, testing and maintenance, such as digital data network, telecommunication network and cable television.
Features:
1. Support automatic shutdown
2. Support backlight switch
3. Support frequency identification
4. Support user self-calibration
5. Support 1,000 data storage
Technical Specifications:
Part Number | FOLT-7006B | FOLT-5026B |
Optical Power Meter (OPM) |
Wavelength Range(nm) | 800-1700 | 800-1700 |
Fiber Connector | 2.5mm universal connector, FC/PC and SC/PC |
Type of Detector | InGaAs |
Measurement Range(dBm) | -70~+6 | -50~+26 |
Uncertainty | ±5% |
Calibration Wavelength (nm) | 850/1300/1310/1490/1550/1625/1650 |
Display Resolution | Linear display: 0.1%, logarithmic display: 0.01 dBm |
Frequency Identification | 270Hz / 330Hz / 1000Hz / 2000Hz |
Data Storage | 1,000 |
Optical Light Source (OLS) |
Wavelength (nm) | 3155:
SM 1310/1550nm ±20 | 314955:
PON 1310/1490/1550nm±20 |
Type of Laser | FP-LD |
Spectral Width (nm) | 5 |
Output Power (dBm) | ≤-5 |
Stability | ±0.05dB / 30min |
Mode | CW / 270Hz / 330Hz / 1000Hz / 2000Hz |
Power Regulation | 0 ~ 6dB, 1dB / step |
Connector Port | 2.5mm universal connector, FC/PC and SC/PC |
General Information |
Power Supply | 3pcs AA Battery |
Automatic Shutdown Time (min) | 10 |
Operating Temperature (C) | -10~+50 |
Storage Temperature (C) | -40~+70 |
Relative Humidity | 0 ~ 95% No Condensing |
Instrument size (mm) | 175 x 90 x 44 |
Weight (g) | 265g |
