Description:

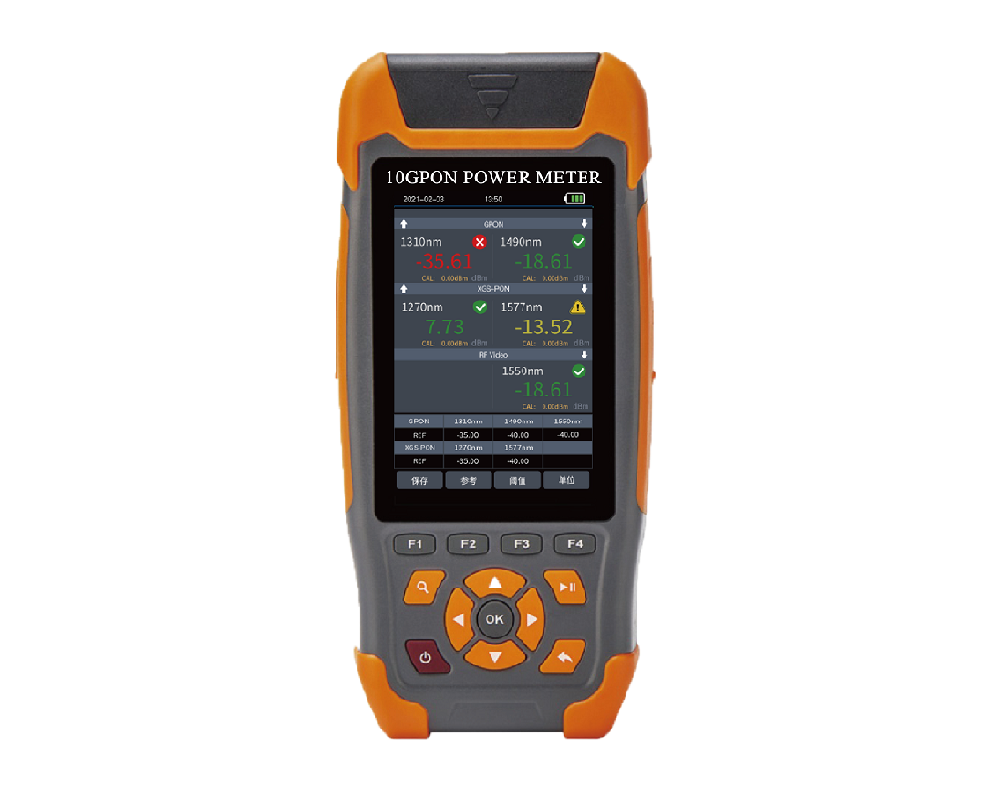

The 10GPON EPON XGPON Power meter is a fiber optic tester for measuring the optical power value of EPON and GPON network system. 10GPON power meter can simultaneously measure the voice, data and video signals on 1490nm/1550nm/1577nm (downlink spectrum) and 1270nm/1310nm (burst mode uplink spectrum) optical fiber, the same screen displays the signal power of each of the 5 wavelengths, which enables the maintenance personnel to truly master the power value of the single wavelength optical signal on the line. It is an ideal choice for PON network engineering, construction and maintenance to detect and analyze optical fiber with optional end-face detector and judge whether the signal power is up to the standard by threshold data set by the instrument itself.
Features:
1. 3.5-inch TFT color screen
2. Compatible with EPON GPON and next generation 10G-EPON/XG-PON power measurement
3. 5 wavelength power value simultaneous measurement display
4. The instrument can set the measurement threshold to determine the pass, warning, fail state
5. Integrate 5 functions 10GPON power meter, VFL, RJ45 cable testing(sequence /distance/tracking)
Technical Specifications:
10GPON Power Meter Mode |
Measuring wavelength | 1270nm | 1310nm | 1490nm | 1550nm | 1577nm |
Measuring range（dBm） | +10～-35 | +10～-35 | +12～-40 | +25～-40 | +12～-40 |
Spectral passband(nm) | 1270±10 | 1310±10 | 1490±10 | 1550±10 | 1577±10 |
Insertion loss（dB） | ≤1.5 |
Uncertainty （dB） | ≤0.5 |
Interface type | SC |
Display resolution（dB） | 0.01 |
Fiber Type | SM 9/125um |
VFL |
Wavelength (nm) | 650±10 |
Output power（mW） | 10 |
Modulation frequency | CW/1Hz/2Hz |
Connector | Universal |
Others |
Operating temperature (℃) | -10～+60 |
Storage temperature (℃) | -25～+70 |
Relative humidity | 0%～95%RH |
Communication interface | USB |
Power supply | Rechargeable 3.7V lithium battery/USB |
Operating time(h) | Operating time ≥20H，stand-by time ≥60H |
Dimension (mm) / Weight (g) | 173×82×37 / 350 |
Packing List | Main Unit / USB Cord / User Manual / Power Charger |
Notes：1. T=23±2℃ test 2. @1550nm, under +26～-30 dBm test
