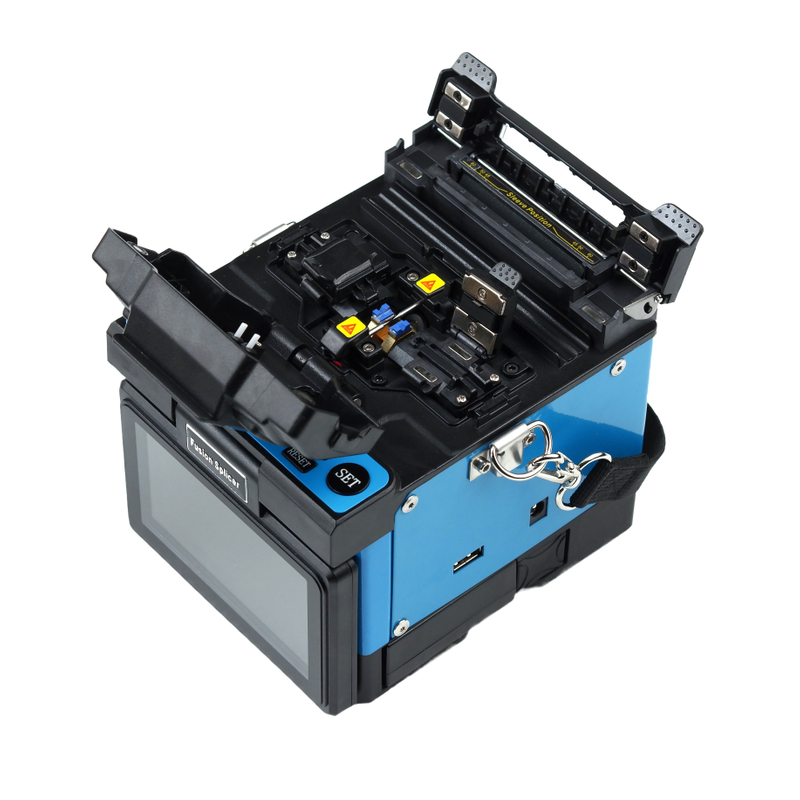

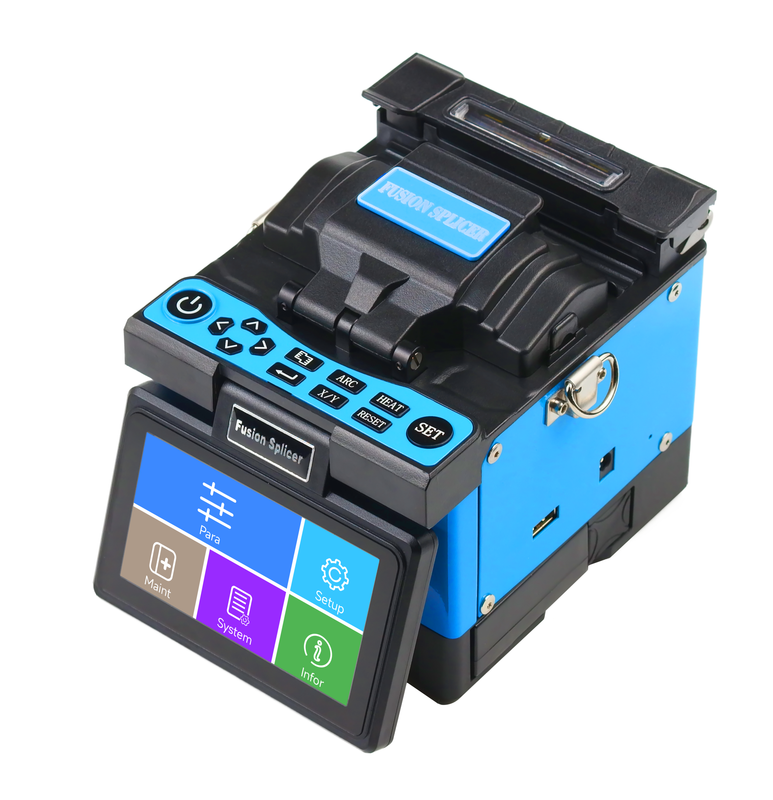

China High Precision Fiber Optic Fusion Splicing Machine

Fiber count

Single

Dimension

149 (L) x 120 (W) x 127 (H) mm, weight: 1.9kgs (battery included)

Fiber holder

Muti-function, suitable for bare fibers, drop cables, pigtails, etc.

Applicable fiber

SM(G.652),MM(G.655),DS(G.653),NZ DS(G.655),BI(G.657)

Splicing program

40 groups

Diameter of fiber

Cladding:80-150μm, coating:160-900μm

Fiber cleaved length

10-16mm(coating diameter <250μm), 16mm(coating diameter: 250-1000μm)

Typical splicing time

8s

Tube heating time

26s

Splicing program

Many(self-regulation)

Tube heating program

Many(self-regulation)

Protection sleeve length

60mm, 40mm

Storage of splice result

4000 results

Typical splice loss

SM:0.02dB, MM:0.01 dB, DS:0.04dB, NZ DS:0.04dB, BI:0.02dB (ITU-T Standard)

Return Loss

>60dB

Test of end-face

available

Loss evaluation

available

Operating condition

Altitude: 0-5000m, Humidity: 0-95%

Temperature: -20℃～+50℃, Wind speed: max 15m/s

Storage temperature

Humidity: 0-95%, temperature: -40-+80℃

Fiber view magnification

250X(X or Y view), 125X(X and Y view)

Terminals

USB 2.0 port for data transfer and upgrading software

Electrode life

4000 ARC discharges

Power supply

Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V;

battery capacity:5200mAh

1

Fusion splicer

1

7

Fiber stripper

1

2

Battery

1

8

Drop cable stripper

1

3

Fiber cleaver

1

9

Cooling tray

1

4

Spare electrodes

1

10

Carrying case

1

5

Power adapter & cord

1

11

Certificate of Approval

1

6

Manual
