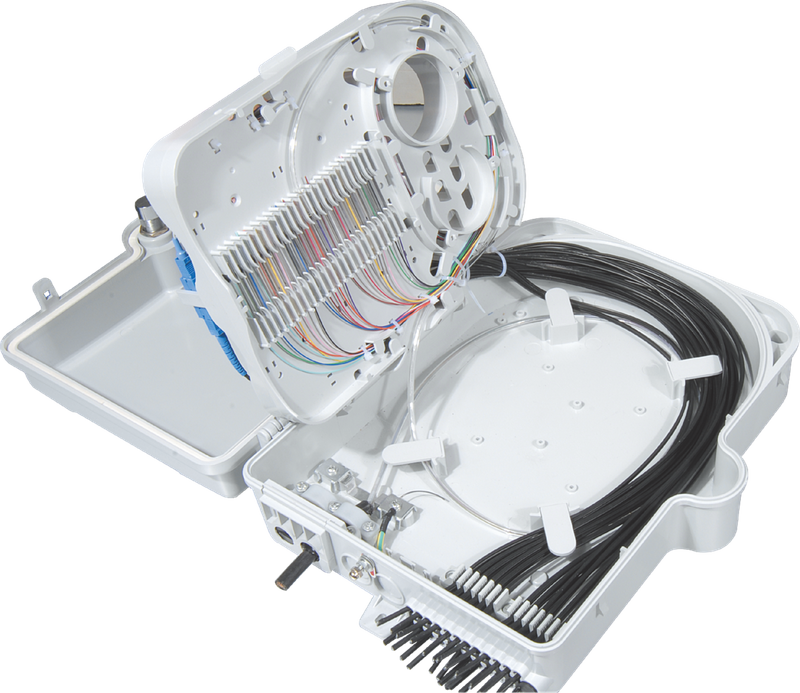

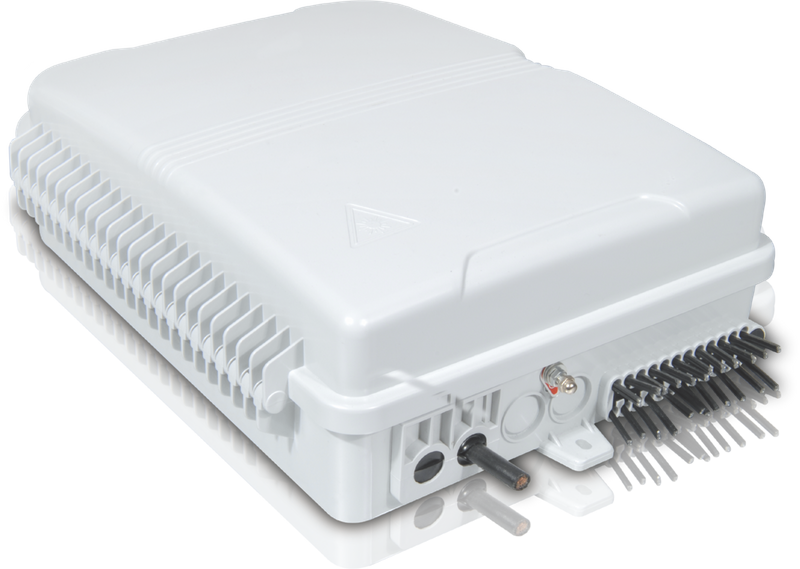

3S FOTB-24-B Fiber Optical Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level

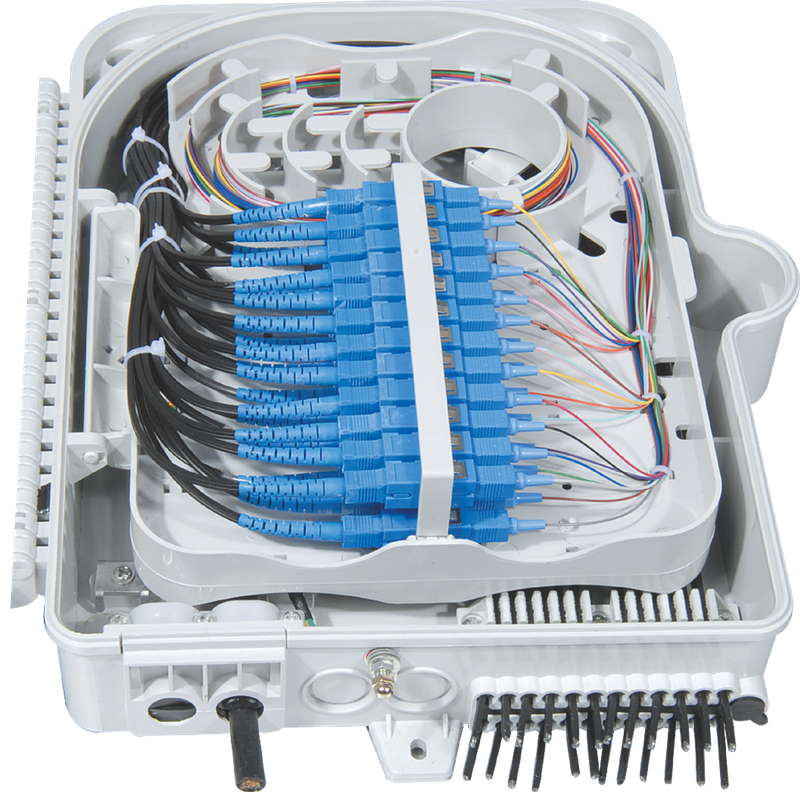

Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
24 ports cable entrance for FTTH drop cable
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC+ABS
A*B*C(mm)
320*240*100
SC
24 Ports
LC
48 Ports
1.5kg
2.3kg
White
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-24-F-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
FOTB
24
B
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
