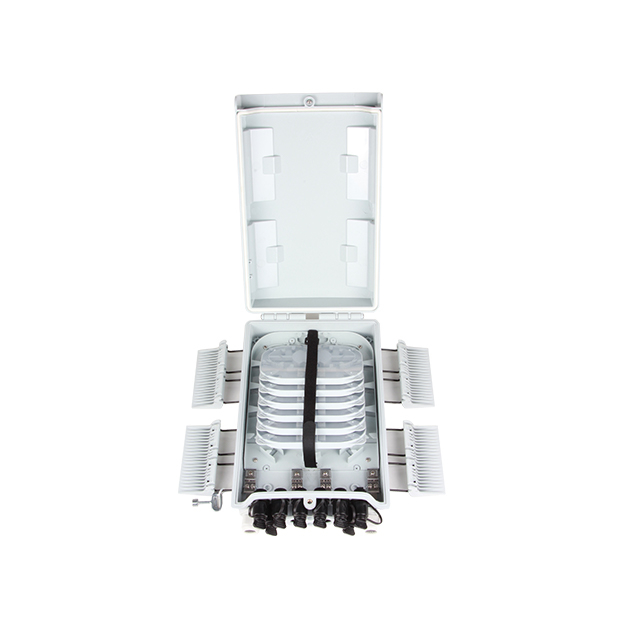

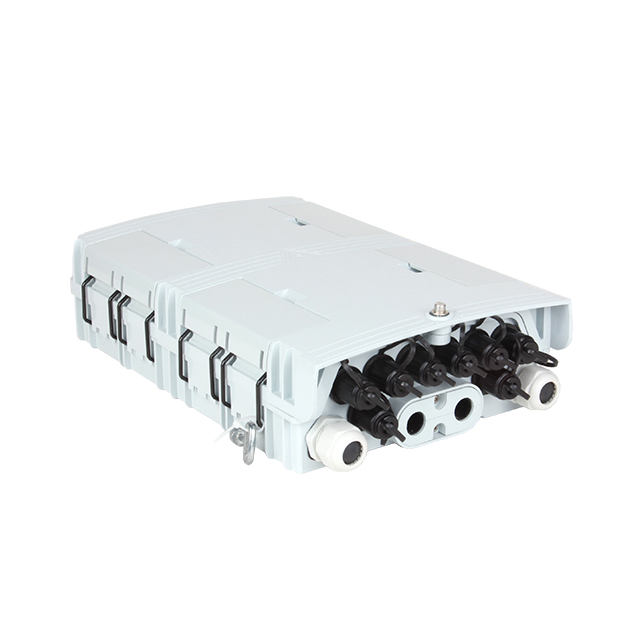

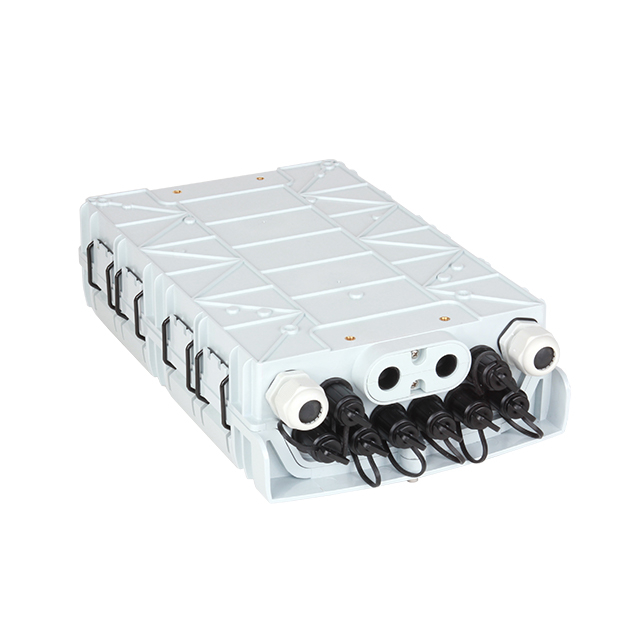

FOTB-PC-8-A Pre-connectorized Fiber Optical Termination Box is a 8cores fiber optical distribution box with pre-terminated connectors at factory end. It can combine with HUAWEI MiNi SC adapters. 3S Pre-connectorized Fiber Optical Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Fiber bend radius control more than 40mm
8 ports cable entrance for pre-terminated distribution cables
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC+ABS
A*B*C(mm)
357*210*87
SC
8 Ports
1.5kg
1.8kg
White
How to order a Pre-connectorized Fiber Optical Termination Box?
Model Rules: FOTB-PC-8-A-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
FOTB-PC
8
A
SC: SC/UPC
AS: SC/APC
SC: SC/UPC
AS: SC/APC
