Descriptions:

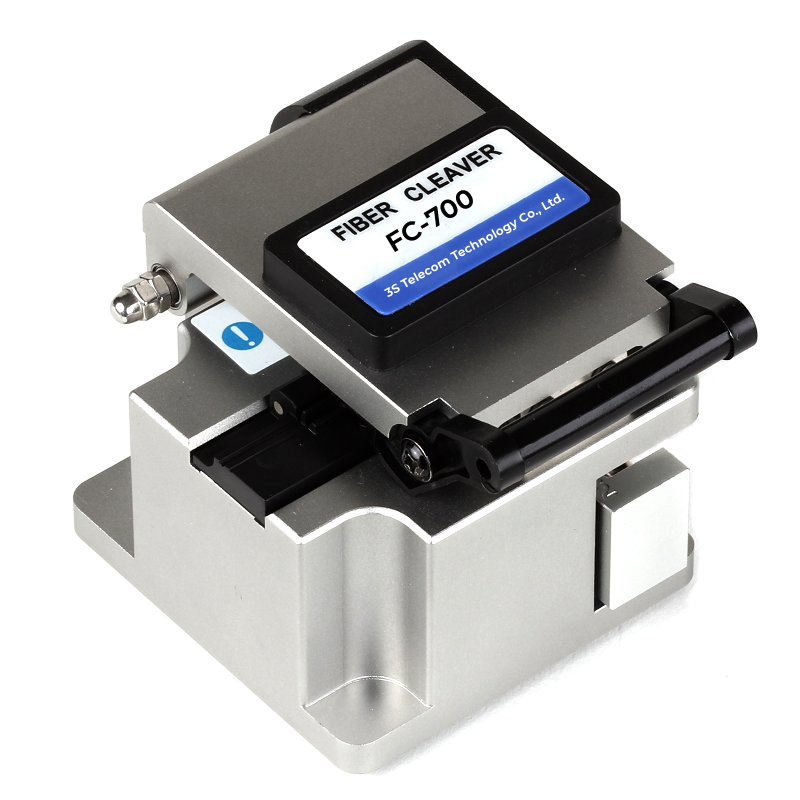

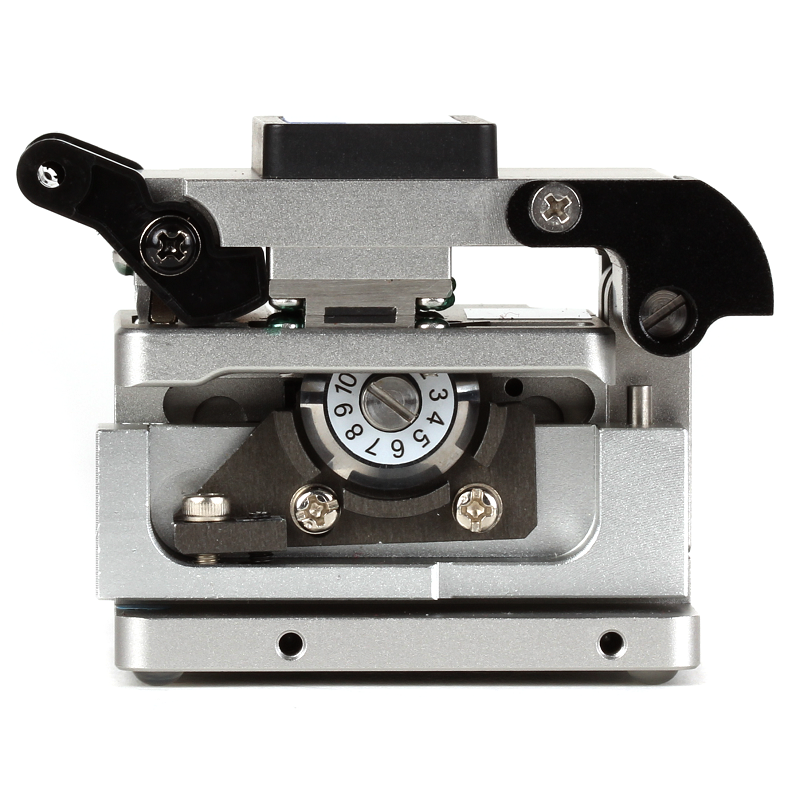

FC-700 High Precision Fiber Cleaver is used to cleave fiber for mechanical or fusion splicing operation. Both full size and mini fiber cleavers are available. The full size fiber cleaver contains a great stability. It is a very reliable cleaver for the construction of optical network and FTTx applications. The mini fiber cleaver is much smaller than the full size cleaver. It provides a great portability and precision of cleaving angle. Fiber cleavers contain 12-position blade. This could proceed with 36,000 times single fiber cleaves, or 3,000 times 12-fiber ribbon cleaves.
Features:
1. Compact design
2. High reliability
3. Good cleaving performance
4. 36,000 times cleave per blade
5. High stability and precision
Applications:
1. FTTx construction
2. Optical network construction
3. LAN, WAN, and Metro networks
4. CATV networks
Specifications:
Fiber Type | single fiber |
Fiber Diameter | 250um/900um |
Bare Fiber Diameter | 125um |
Cleave Angle Capability | typically <0.5˚ (single core) |
Cleave Length | fiber diameter 250um/900um: 9~16mm/10~16mm |
Blade Lifetime | 36,000 fiber cleaves |
Blade Lifetime | 36,000 times fiber cleaves (3,000 times 12-fiber cleaves) |
Dimension | 60W*76D*57H (mm) |
Weight | 420g |
Ordering Information:
Model | Description |
FC-700 | High Precision Fiber Cleaver |
FC700-12RB | Replacement Blade 12 positions |
