Description:

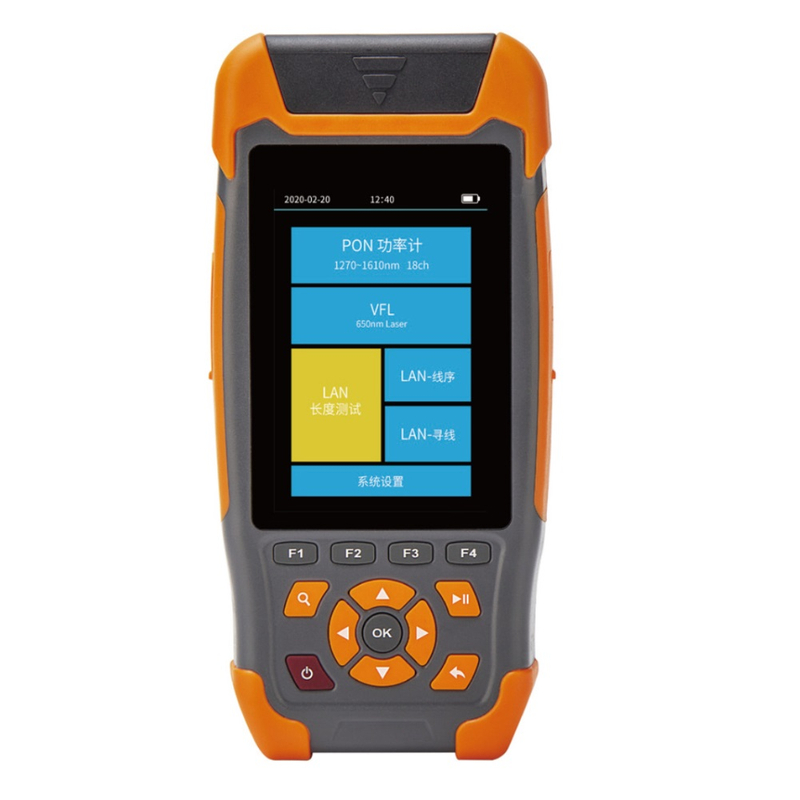

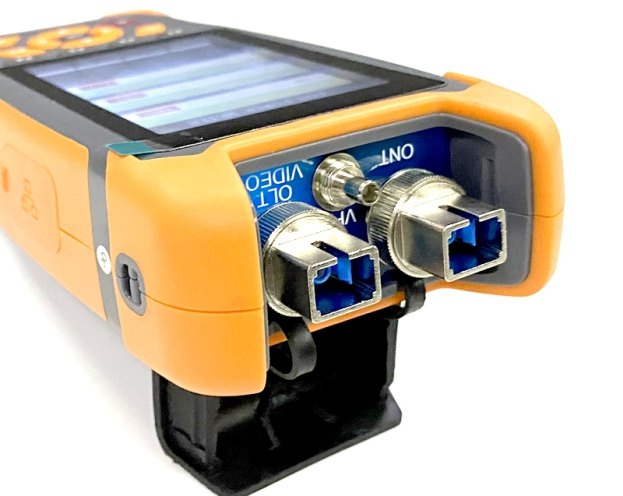

The PON Power Meter (PON test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It's a useful site test tool for the engineers of PON network and maintenance operators.
Features：
1. Can test 3 wavelengths power of PON system synchronously: 1310nm, 1490nm, 1550nm
2. Can test the burst mode signal of 1310nm
3. Can save 1000 testing results. Analyze and display pass/fail status in real time
4. Relative value choice and edit function
5. Can set the threshold value
6. Auto shut off (according to set value)
7. Auto backlight off(according to set value)
8. Power saving design (Low voltage self check and power off)
9. Real-time clock display
PON Power Meter Specification:
Wavelength | 1310nm Upstream | 1490nm Downstream | 1550 Downstream |
Pass Zone | 1260~1360nm | 1470~1505nm | 1535~1570nm |
Measurement Range | -35~+10dBm | -40~+12dBm | -40~+25dBm |
Isolation@1310nm | - | >40dB | >40dB |
Isolation@1490nm | >40dB | - | >40dB |
Isolation@1550nm | >40dB | >40dB | - |
Uncertainty | <±0.5dB |
Polarization Dependent Loss | <±0.25dB |
Linearity | ±0.1dB |
Through Insertion Loss | <1.5dB |
Resolution | 15dBm |
Connector | SC/UPC |
Visual Fault Locator |
Wavelength | 650±20nm |
Power | 10mW |
Mode | CW/1Hz/2Hz |
Connector | 2.5mm universal connector |
RJ45 Cable Length / RJ45 Cable Sequence / RJ45 Cable Tracker (need to purchase external cable tracker module) |
Test Distance | 300m |
General Information |
Display | 3.5 inch TFT LCD display, high resolution 320*480 |
Data Interface | Micro USB |
Power Supply | Lithium battery 3.7V 4000mAh, power adapter 5V DC, 2A |
Battery Working Time | >12h |
Weight | 350g |
