Description

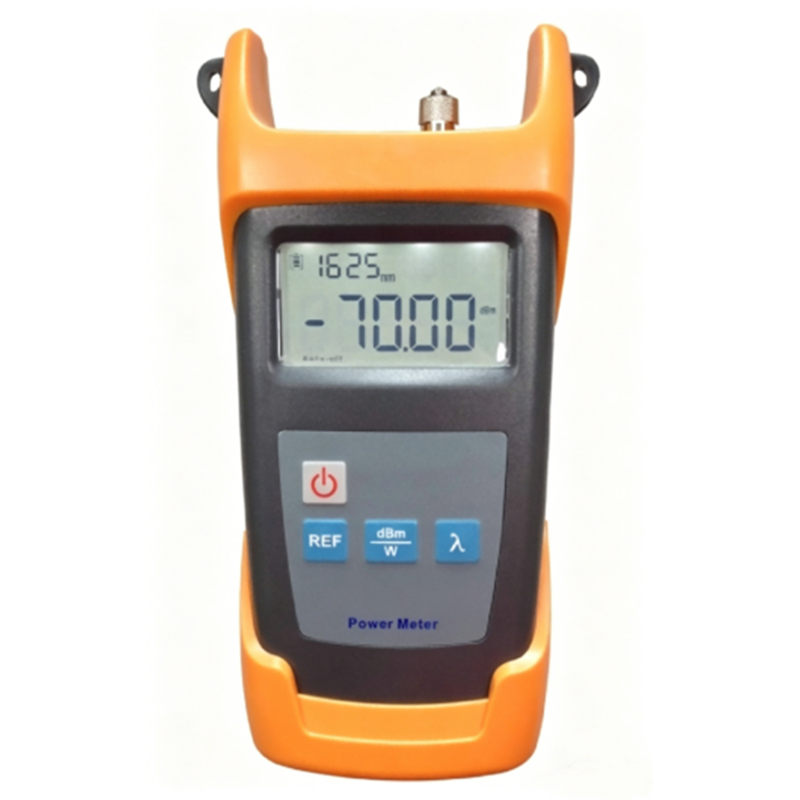

FOPM‑A Series Fiber Optical Power Meter
— Large Φ1.0mm InGaAs Detector
Standard Connector-FC/SC/ST
Field fiber‑optic technicians often suffer unstable floating readings caused by imperfect fiber‑connector alignment. Conventional small‑size detector power meters require extremely precise connector positioning; minor offset brings measurement drift and repeated readjustment, reducing work efficiency.
FOPM‑A series handheld fiber optical power meter solves this real‑world pain‑point by adopting large Φ1.0‑mm InGaAs detector. Larger receiving area greatly reduces alignment‑sensitivity and keeps test‑data stable even under non‑ideal field‑site connector mating conditions.
Two independent variants cover different application scenarios: FOPM‑7010A provides ‑70~+10dBm wide low‑power range for standard FTTx / access‑network testing; FOPM‑5026A features ‑50~+26dBm high‑power range specially adapted for CATV high‑signal‑level measurement.
It supports user‑operated self‑calibration function, technicians can complete calibration on‑site without sending instrument back‑to‑factory. 0.01dBm high‑resolution display ensures fine power‑level observation. Backlit display adapts for dark cabinet or manhole environment; 10‑minute auto‑shutdown prevents accidental power‑waste. Up to 140‑hours long battery runtime supports continuous field‑shift work.
Dual‑power‑supply architecture accepts standard AA batteries for outdoor field deployment, or 5V external AC adapter for non‑stop production‑line and laboratory long‑time measurement. Compact ergonomic handheld form‑factor suits long‑time hand‑holding operation.
This instrument is widely adopted for telecom construction, network maintenance, CATV inspection, production‑line quality‑control, optical‑component R&D and lab calibration.
If you need integrated multi‑function fiber test instrument, please view our series of mini OTDR testers.
Key Features
Large Φ1.0mm InGaAs detector, lower alignment‑sensitivity, highly‑stable field‑measurement results
Two model‑range selections: FOPM‑7010A (‑70~+10dBm); FOPM‑5026A (‑50~+26dBm)
User self‑calibration function for convenient on‑site instrument calibration
0.01dBm high‑resolution readout for subtle optical‑power‑level observation
6 factory‑calibrated wavelengths: 850 /1300 /1310 /1490 /1550 /1625nm
Backlight‑switchable display, adapts to dark cabinet and underground manhole working‑sites
10‑minutes auto‑shutdown to avoid unnecessary battery consumption
Up to 140‑hours long battery life for full‑day continuous field assignments
Dual‑power‑supply: AA batteries for field use; 5V adapter for lab / production‑line continuous test

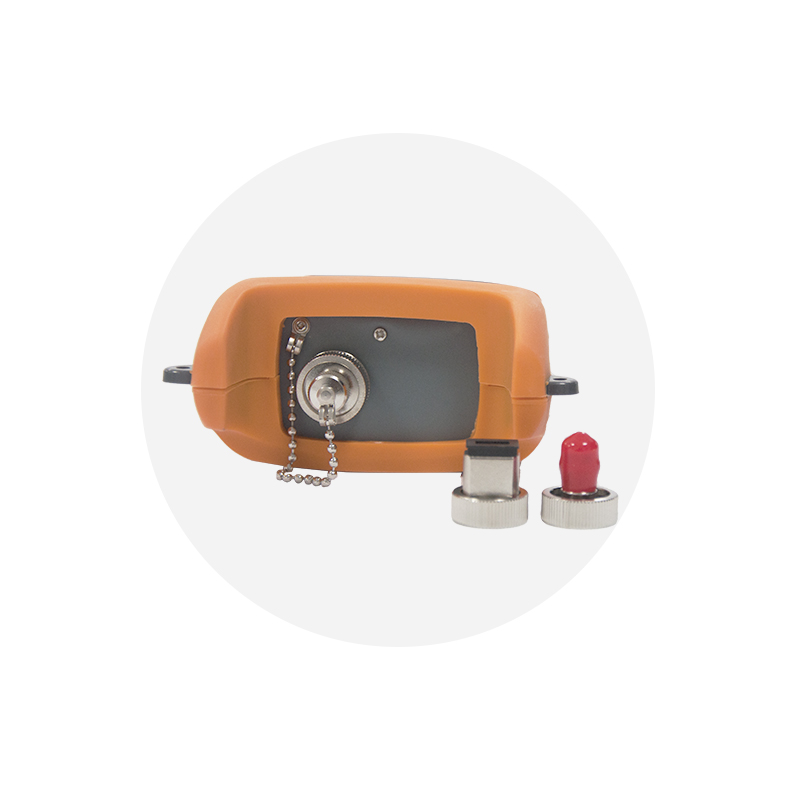

Compact ergonomic handheld housing, FC/SC/ST standard adapters, custom‑adapter & OEM private‑label available
Applications
FTTx network installation and optical‑power‑level verification
Telecom access‑network daily maintenance & troubleshooting
CATV high‑power optical‑signal measurement
Production‑line fiber‑product quality‑control inspection
Optical‑component R&D and performance‑testing
Laboratory optical‑instrument calibration & measurement
Fiber‑optic technician practical‑skill training
FOPM‑A = Fiber Optical Power Meter. Select range‑model and connector‑adapter type. Custom adapters and OEM service are supported.
Code Position | Available Options |
Product Code | FOPM‑A |
Model | 7010A = ‑70~+10dBm; 5026A = ‑50~+26dBm |
Adapter | FC / SC / ST; custom adapters available on request |
Note: Every unit is fully calibrated and tested before shipment.
Custom adapters, ODM / OEM private‑label service can be provided.
Specifications subject to change without notice.
Technical Specifications
Optical Specifications
Parameter | Value |
Wavelength Range | 800 ~ 1700 nm |
Detector | InGaAs, Φ1.0mm large‑area detector |
Measurement Range FOPM‑7010A | ‑70 ~ +10 dBm |
Measurement Range FOPM‑5026A | ‑50 ~ +26 dBm |
Measurement Uncertainty | ±5% |
Calibrated Wavelength | 850 / 1300 /1310 /1490 /1550 /1625 nm |
Display Resolution | 0.01 dBm |
Auto‑off | 10‑minutes auto‑shutdown |
Mechanical & Electrical
Parameter | Value |
Dimensions | 185 × 84 × 48 mm |
Weight | 200 g (without AA batteries) |

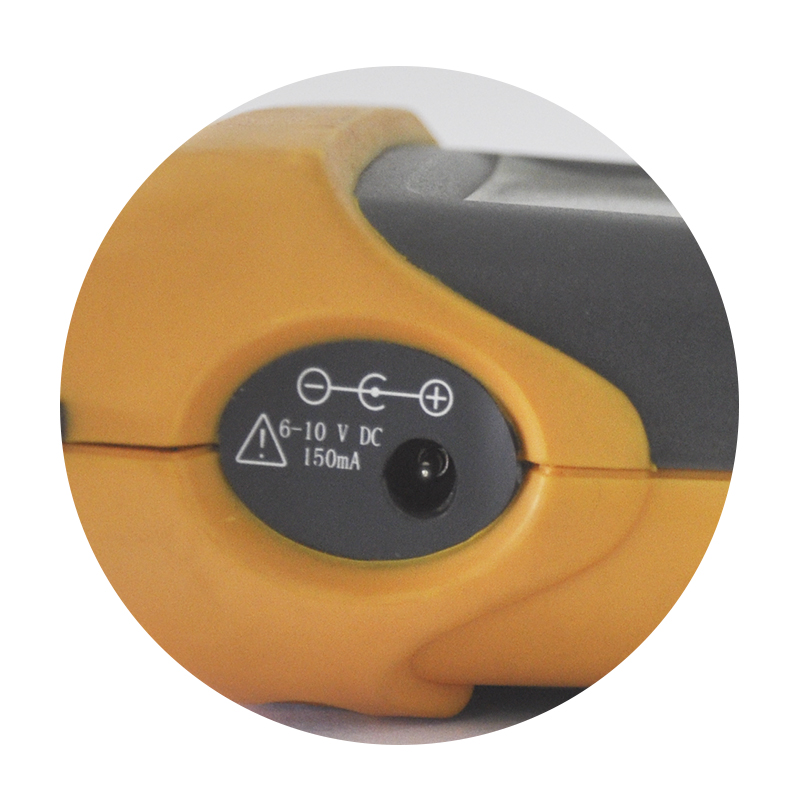

Power Supply | 3 × AA 1.5V batteries OR 5V external AC adapter |
Operating Temperature | ‑10°C ~ +60°C |
Storage Temperature | ‑25°C ~ +70°C |
FAQ
Q1: What is the main advantage of Φ1.0mm large‑size detector compared with ordinary small‑detector power meters?
A: Larger receiving‑area reduces fiber‑connector alignment‑sensitivity. Even with minor connector offset in field‑site environment, it maintains stable readings and avoids floating jumpy measurement values.
Q2: How should I choose between FOPM‑7010A and FOPM‑5026A?
A: Choose FOPM‑7010A (‑70~+10dBm) for regular FTTx and access‑network testing. Select FOPM‑5026A (‑50~+26dBm) for CATV high‑optical‑power signal measurement scenarios.
Q3: What does user self‑calibration mean? Do I need factory‑return for calibration?
A: This device supports on‑site user self‑calibration operation. You can finish calibration in‑field, no need to send instrument back to factory for routine calibration work.
Q4: What are the two power‑supply modes used for respectively?
A: Install AA batteries for outdoor field maintenance work. Connect 5V external AC adapter for non‑stop long‑time running on production‑line or inside laboratory.
Q5: Can I get custom adapters and OEM private‑label service?
A: Yes, custom connector adapters, ODM hardware modification and OEM private‑label are supported upon request.
