Description

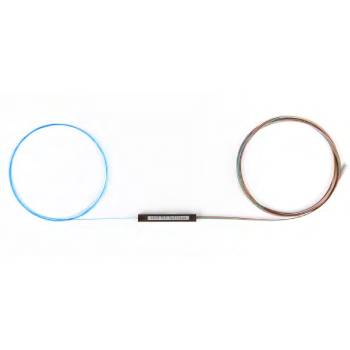

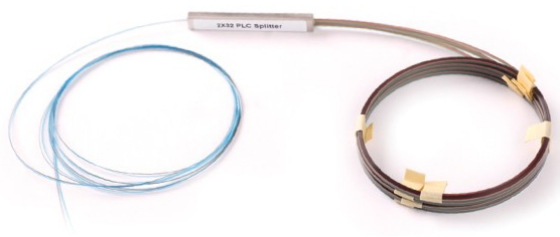

A bare fiber PLC splitter is a PLC splitter with bare fiber for both splitter in and splitter out. 3S provides a high precise PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact micro type design. It is especially suitable for tiny room installation and can be easily placed into different types of terminal boxes and distribution boxes, in favor of splicing and staying in tray without additional space reservation.
Features
1. Compact design
2. Low insertion loss and low PDL
3. High reliability
4. High channel counts
5. Wide wavelength range
6. Large operating and temperature range
7. Customized packaging and configuration
8. Full Telcordia GR1209/1221 qualifications
Specification
1×N (N>2) PLCS (Without connector) Optical parameters |
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operation wavelength (nm) | 1260~1650 |
Insertion loss (dB) Max | 4.0 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
Return loss (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 |
PDL (dB) Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 |
Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 |
WDL (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Pigtail length (m) | 1.2(±0.1) or customer specified |
Fiber type | 250um bare fiber |
Operation temperature (°C) | -40~85 |
Storage temperature (°C) | -40~85 |
Dimension (L×W×H) (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
2×N (N>2) PLCS (Without connector) Optical parameters |
Parameters |
| 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Operation wavelength (nm) | 1260~1650 |
Insertion loss (dB) Max |
| 7.6 | 11.0 | 14.8 | 17.9 | 21.5 |
Loss uniformity (dB) Max |
| 1.2 | 1.5 | 1.8 | 2.0 | 2.0 |
Return loss (dB) Min |
| 55 | 55 | 55 | 55 | 55 |
PDL (dB) Max |
| 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
Directivity (dB) Min |
| 55 | 55 | 55 | 55 | 55 |
WDL (dB) |
| 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Pigtail length (m) | 1.2(±0.1) or customer specified |
Fiber type | 250um bare fiber |
Operation temperature (°C) | -40~85 |
Storage temperature (°C) | -40~85 |
Dimension (L×W×H) (mm) |
| 50×4×4 | 50×4×4 | 60×7×4 | 60×7×4 | 60×7×4 |
