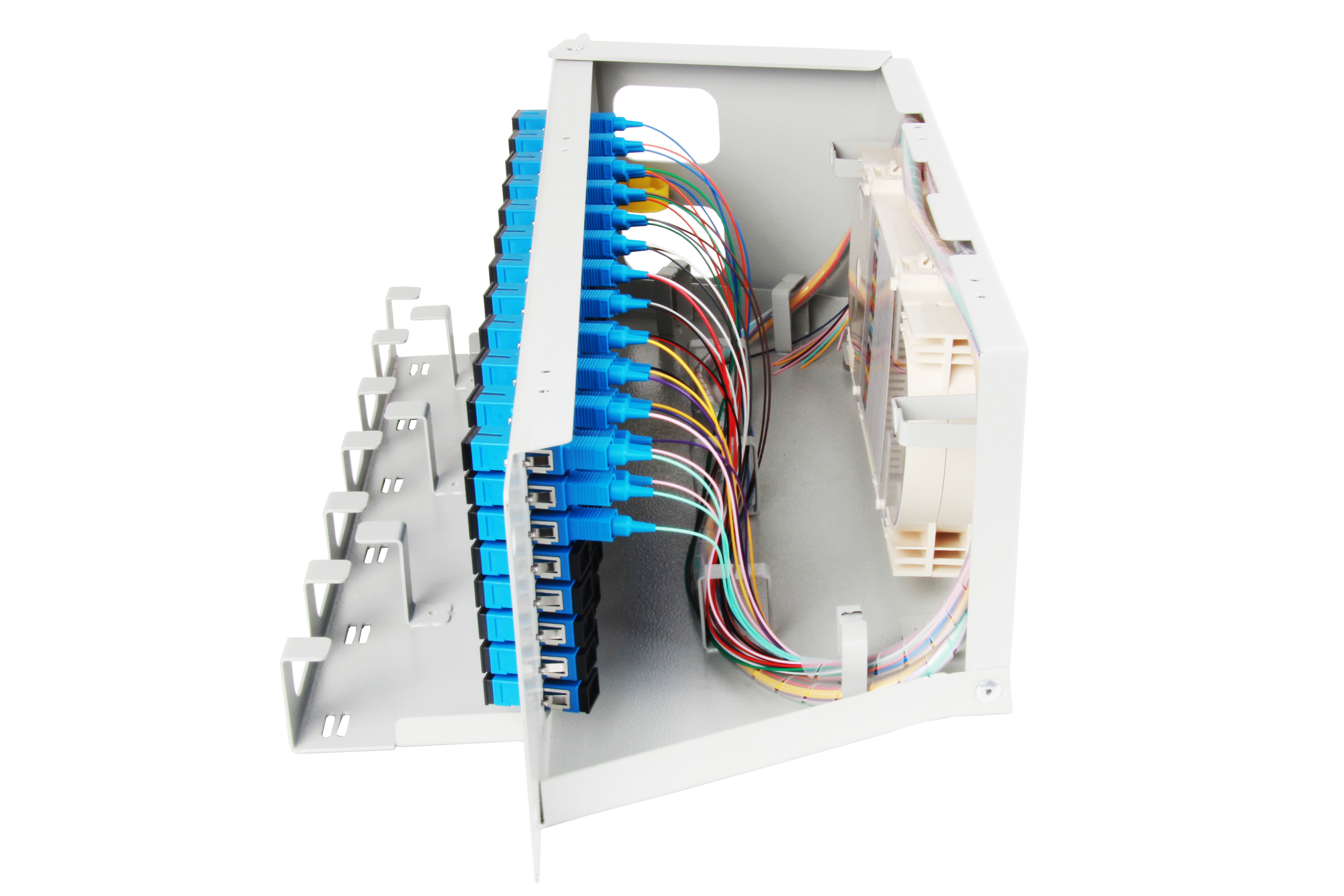

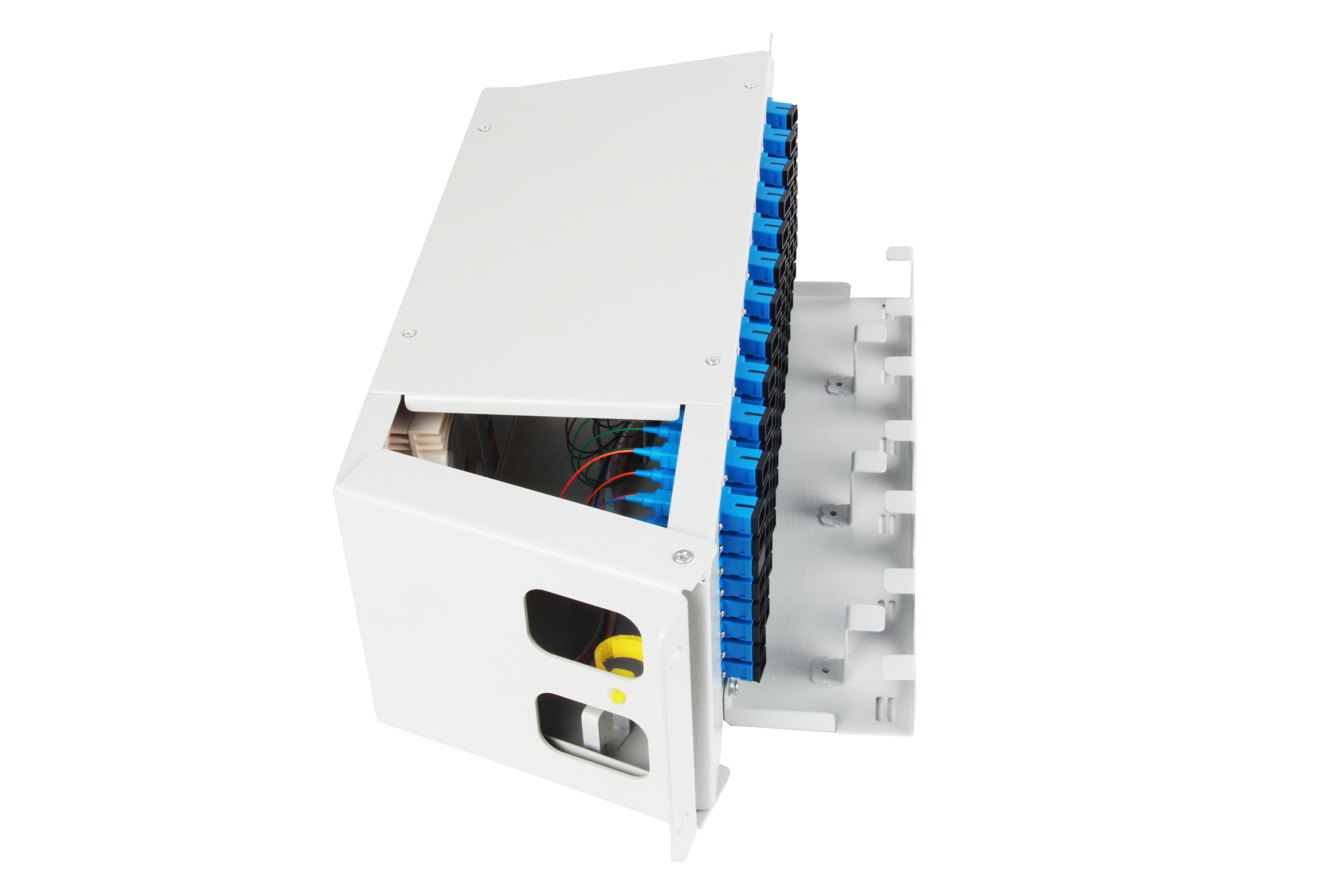

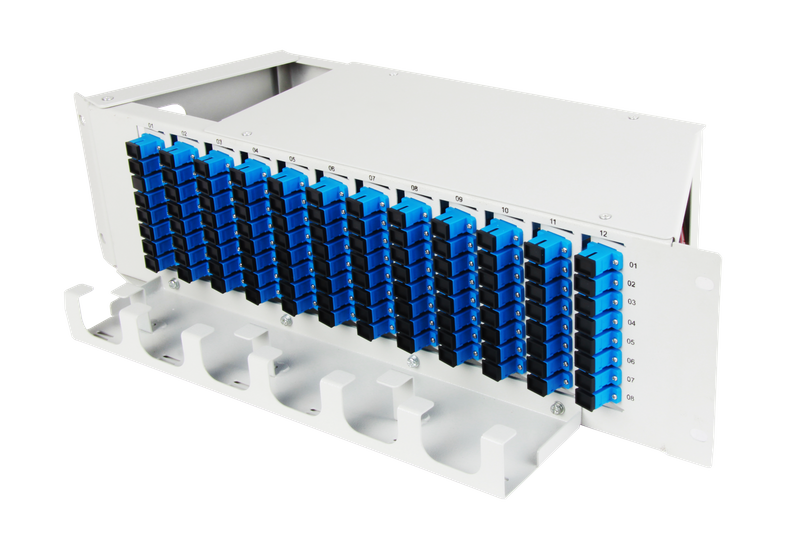

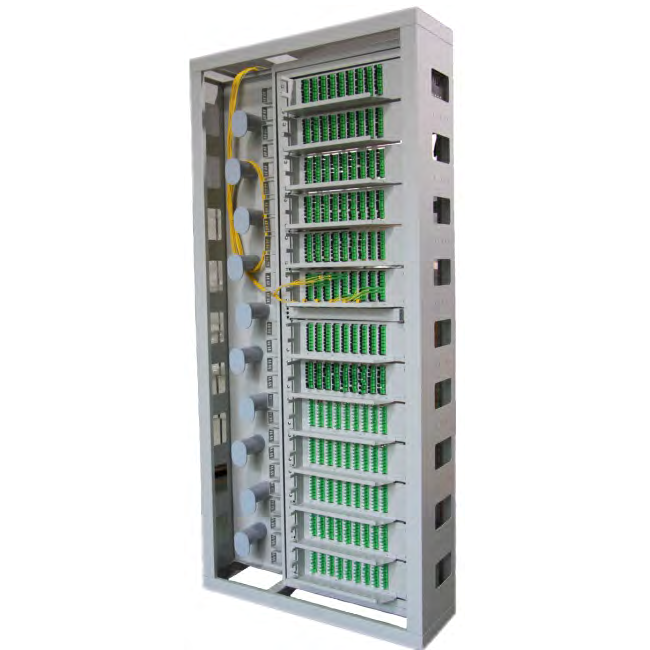

ODF-F3 Series Fiber Optic Distribution Frame (ODF) is a high density up to 1248 fibers capacity. It is open design without doors. Its ODF sub unit, fiber optic patch panel, is modular design. Each modular can be up to 72 fibers or 96 fibers capacity. It can be customized according to customer demand.
Features:
Modular designn(72 or 96 optical connectors per module)

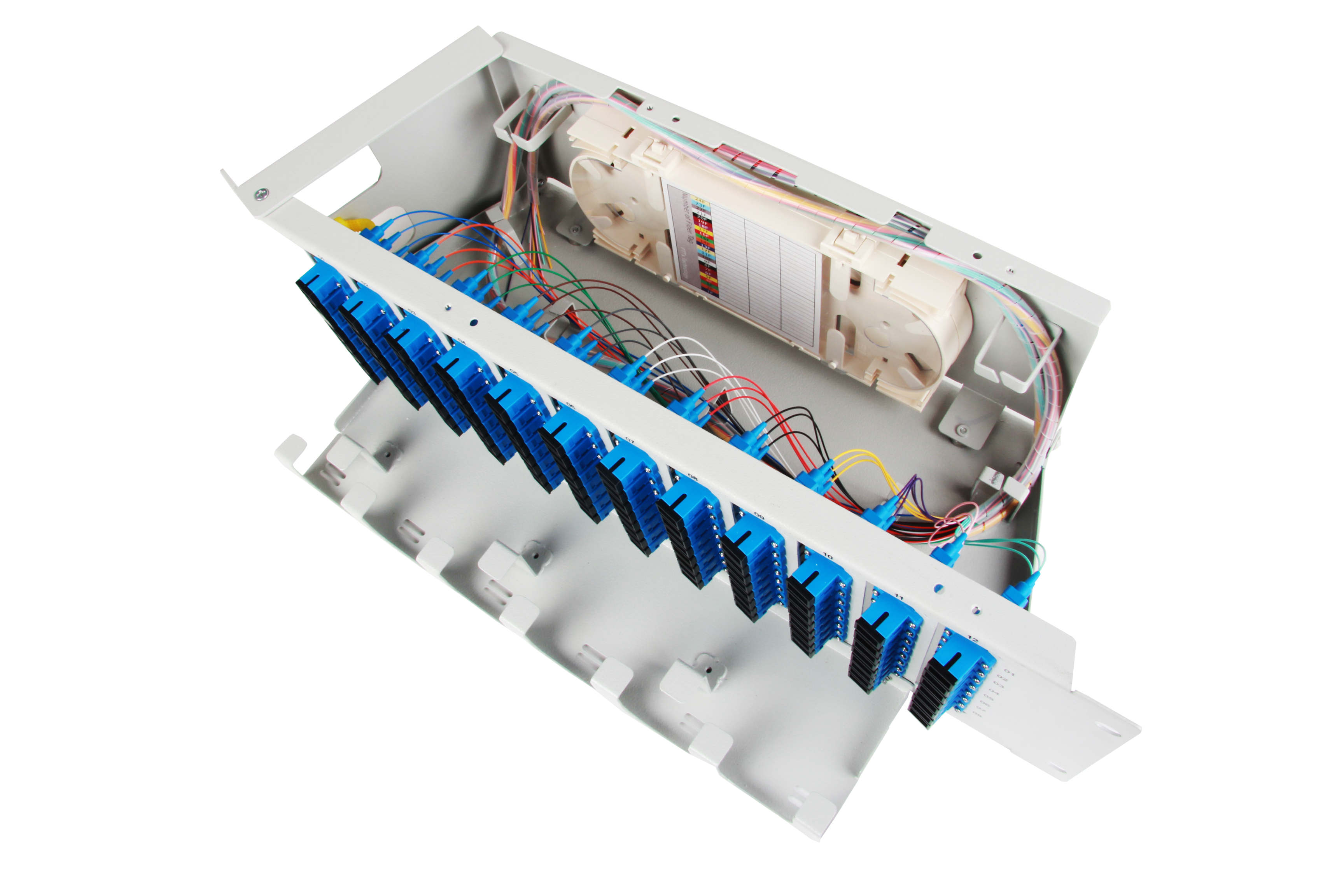

Module for placement of splice trays
Easy access-double rotating system(frame/module)
Connector pannel E2000, SC simplex, LC duplex
Easy and variable management
Possibility of installing passive elements into the modules
Frame locking in the open position
Specifications:
Part No.
Dimension (mm)
Capacity (C)
OPP-P12-72
482(W)*235(D)*131(H)
72
OPP-P12-96
482(W)*235(D)*131(H)
96
ODF-F3-936
900(W)*300(D)*2000(H)
936
ODF-F3-1248
900(W)*300(D)*2200(H)
1248
ODF-F3 Series Fiber Optic Distribution Frame (ODF) is a high density up to 1248 fibers capacity. It is open design without doors. Its ODF sub unit, fiber optic patch panel, is modular design. Each modular can be up to 72 fibers or 96 fibers capacity. It can be customized according to customer demand.
Features:
Modular designn(72 or 96 optical connectors per module)
Module for placement of splice trays
Easy access-double rotating system(frame/module)
Connector pannel E2000, SC simplex, LC duplex
Easy and variable management
Possibility of installing passive elements into the modules
