Description of SLM-9802Q CATV Signal Level DB Meter

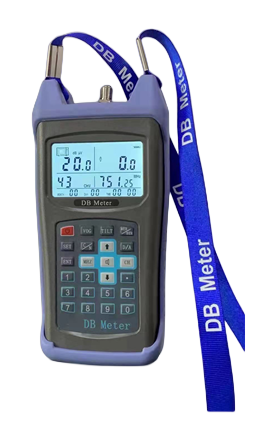

SLM-9802Q CATV Signal Level Tester is also known as CATV DB Meter. SLM-9802Q handheld TV signal level meter with the design of smart instrument body, lighter, more practical and convenient to operate is a useful tool for engineers’ field test application.
Functions of SLM-9802Q CATV Signal Level DB Meter
1. 46~ 870MHz forward or return path CATV system measurement
2. Support DVB-C digital CATV Average power Signal Strength Measurements
3. MER, BER, Tilt, V/A and C/N Measurements
4. AC voltage measurement
5. Support Qpsk / COFDM Average power Signal Strength Measurement
Specifications of SLM-9802Q CATV Signal Level DB Meter
Part Number | SLM-9802Q |
DVB-C |
Range | 46-870MHz |
Modulation type | DVB-C/ITU-T J.83-Annex A |
Support | 16/32/64/128/256 QAM |
Power level | 30dBμV～110dBμV |
Accuracy | ±2dB |
L band width | Can be set by users |
Symbol rate | 1MS/S～8MS/S |
MER | 22dB～40dB |
MER Accuracy | ±2dB |
BER | 10-4～10-8 Before R - S |
Resolution | 10KHZ ≤30ppm |
Analog CATV |
Power Level | 20dBμV～120dBμV |
Accuracy | ±1.5dB |
Impedance | 75Ω |
TILT RANGE | 0~100V(AD/DC) |
Accuracy | ±2V |
Others |
Power Supply | 7.2V 1600mAH rechargeable Li-ion battery AC 90～240V 50/60Hz |
Charging Time | 3 ~ 4 hrs |
Working Time | > 6 hrs |
Dimension | 180 x 82 x 40 (mm) x100x40(mm) |
Weight | 0.32kgs (battery included) |
Packing List | Main unit x1pcs, power adapter x1pcs, user manual x1pcs, certification report x1pcs, hybrid adapter x2pcs |
